Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
163

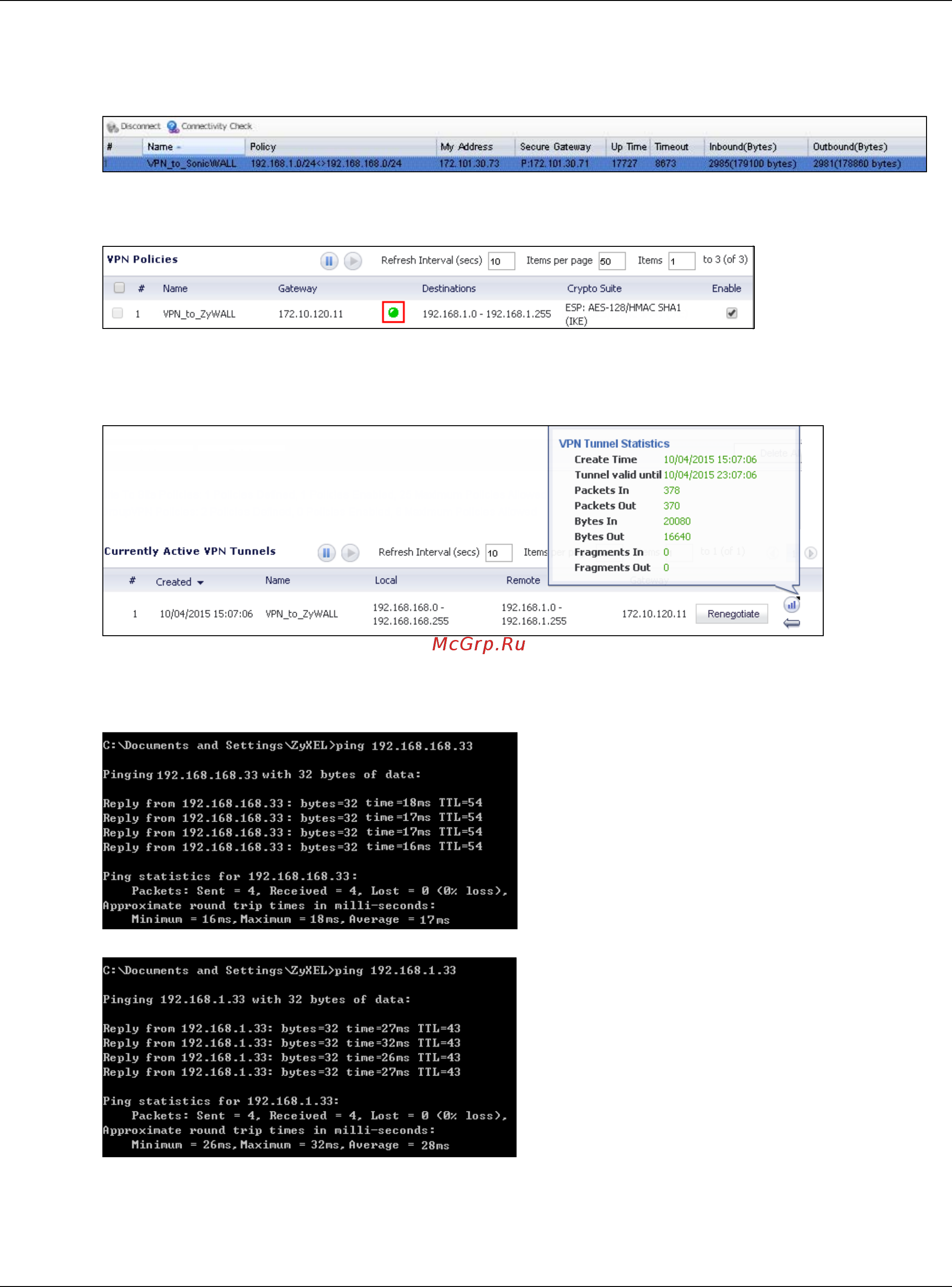

2 Go to ZyWALL/USG MONITOR > VPN Monitor > IPSec and verify the tunnel Up Time and the
Inbound(Bytes)/Outbound(Bytes) traffic.
Figure 339 MONITOR > VPN Monitor > IPSec
3 Go to SonicWALL VPN > VPN Settings > VPN Policies, the status green light is on.
Figure 340 VPN > VPN Settings > VPN Policies
4 Go to SonicWALL VPN > VPN Settings > Currently Active VPN Tunnels > VPN Tunnel Statics
to check Tunnel valid time, Bytes In (Incoming Data) and Bytes Out (Outgoing Data).
Figure 341 VPN > VPN Settings > Currently Active VPN Tunnels
5 To test whether or not a tunnel is working, ping from a computer at one site to a computer at the
other. Ensure that both computers have Internet access (via the IPSec devices).
Figure 342 PC behind ZyWALL/USG > Window 7 > cmd > ping 192.168.168.33
Figure 343 PC behind SonicWALL> Window 7 > cmd > ping 192.168.1.33
