Chapter 8 Maintain Your Device
ZyWALL/USG Series Handbook
321
8.1.1 Rename the Configuration Files from the ZyWALL/USG
In the ZyWALL/USG, go to MAINTENANCE > File Manager > Configuration File, select the
configuration file and click Rename. A pop-up screen will appear allowing you to edit the Target
file name. Click OK to save the Rename configuration.

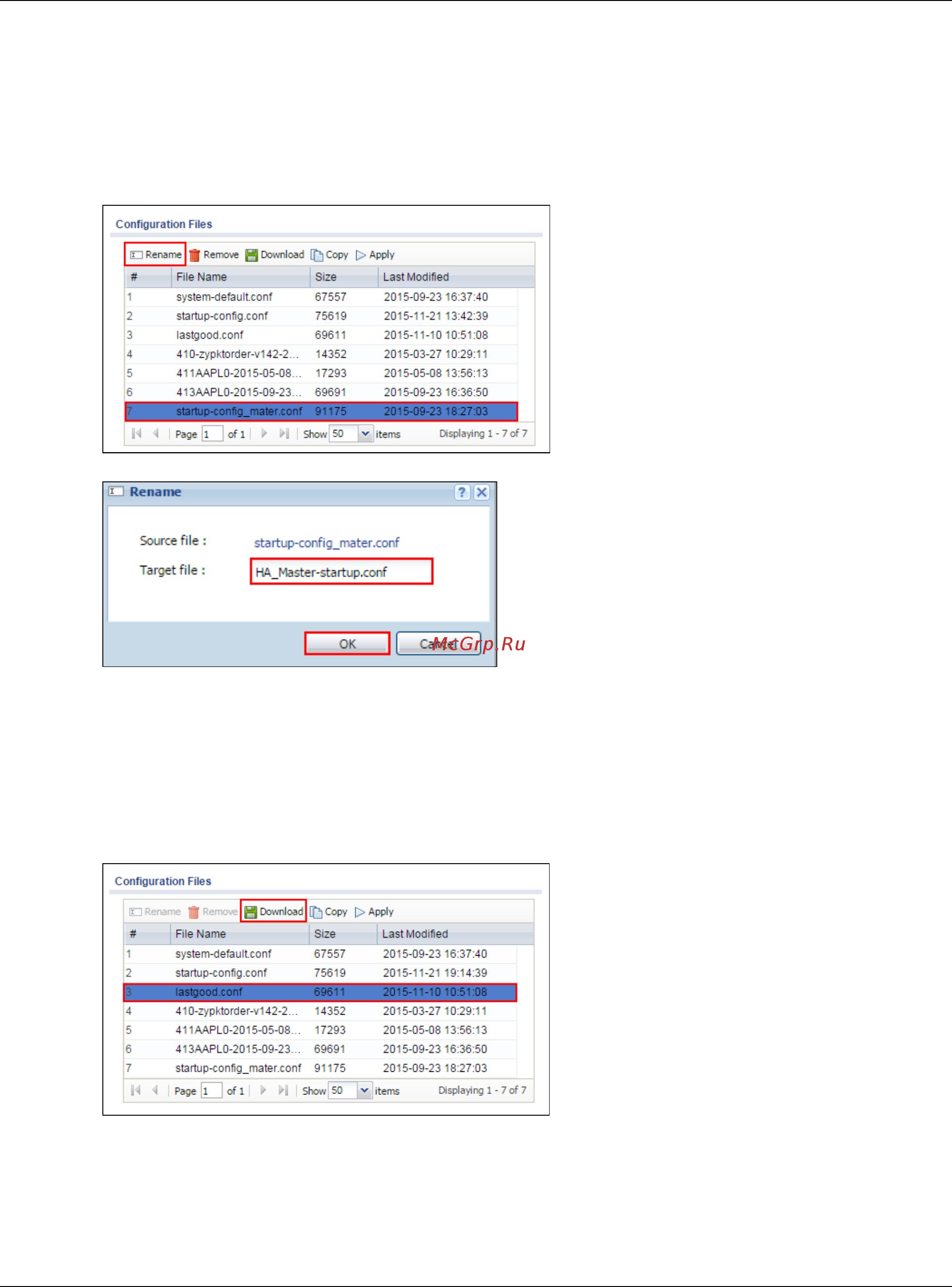

Figure 682 MAINTENANCE > File Manager > Configuration File
Figure 683 MAINTENANCE > File Manager > Configuration File > Rename
8.1.2 Download the Configuration Files on the ZyWALL/USG
In the ZyWALL/USG, go to MAINTENANCE > File Manager > Configuration File, select the
configuration file and click Download to back up your configuration file from ZyWALL/USG to your
computer.
Figure 684 MAINTENANCE > File Manager > Configuration File
