Zyxel USG 60 [245/327] Set up the l2tp vpn tunnel on the zywall usg

Chapter 5 Create Client-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

245

5.4.1 Set Up the L2TP VPN Tunnel on the ZyWALL/USG

1 In the ZyWALL/USG, go to CONFIGURATION > Quick Setup > VPN Setup Wizard, use the VPN

Settings for L2TP VPN Settings wizard to create a L2TP VPN rule that can be used with the

Window 10 clients. Click Next.

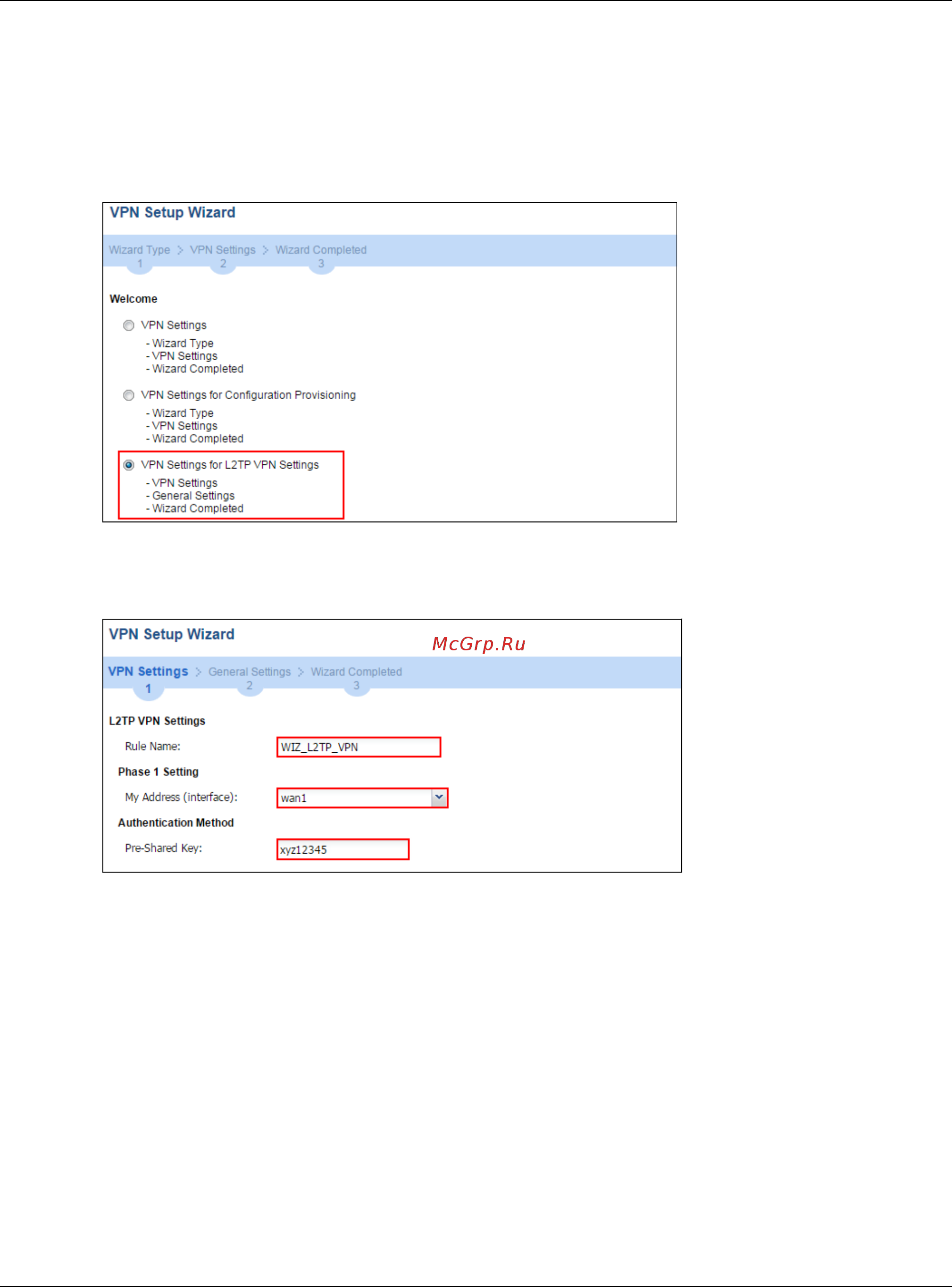

Figure 528 Quick Setup > VPN Setup Wizard > Welcome

2 Then, configure the Rule Name and set My Address to be the wan1 interface which is connected

to the Internet. Type a secure Pre-Shared Key (8-32 characters).

Figure 529 Quick Setup > VPN Setup Wizard > Welcome > VPN Settings
