Chapter 6 Configure IPv6
ZyWALL/USG Series Handbook
298
6.3.3 Set Up the Policy Route on the ZyWALL/USG
In the ZyWALL/USG, go to CONFIGURATION > Network > Routing > IPv6 Configuraiton >
Add, click Create New Object to create an IPv6 address object with the address prefix of
2002:7a64:dcee:1::/64. Select Enable. Select the address object you just created in the Source
Address field. Select any in the Destination Address field. Select Interface as the next-hop
type and then tunnel0 as the interface. Click OK.

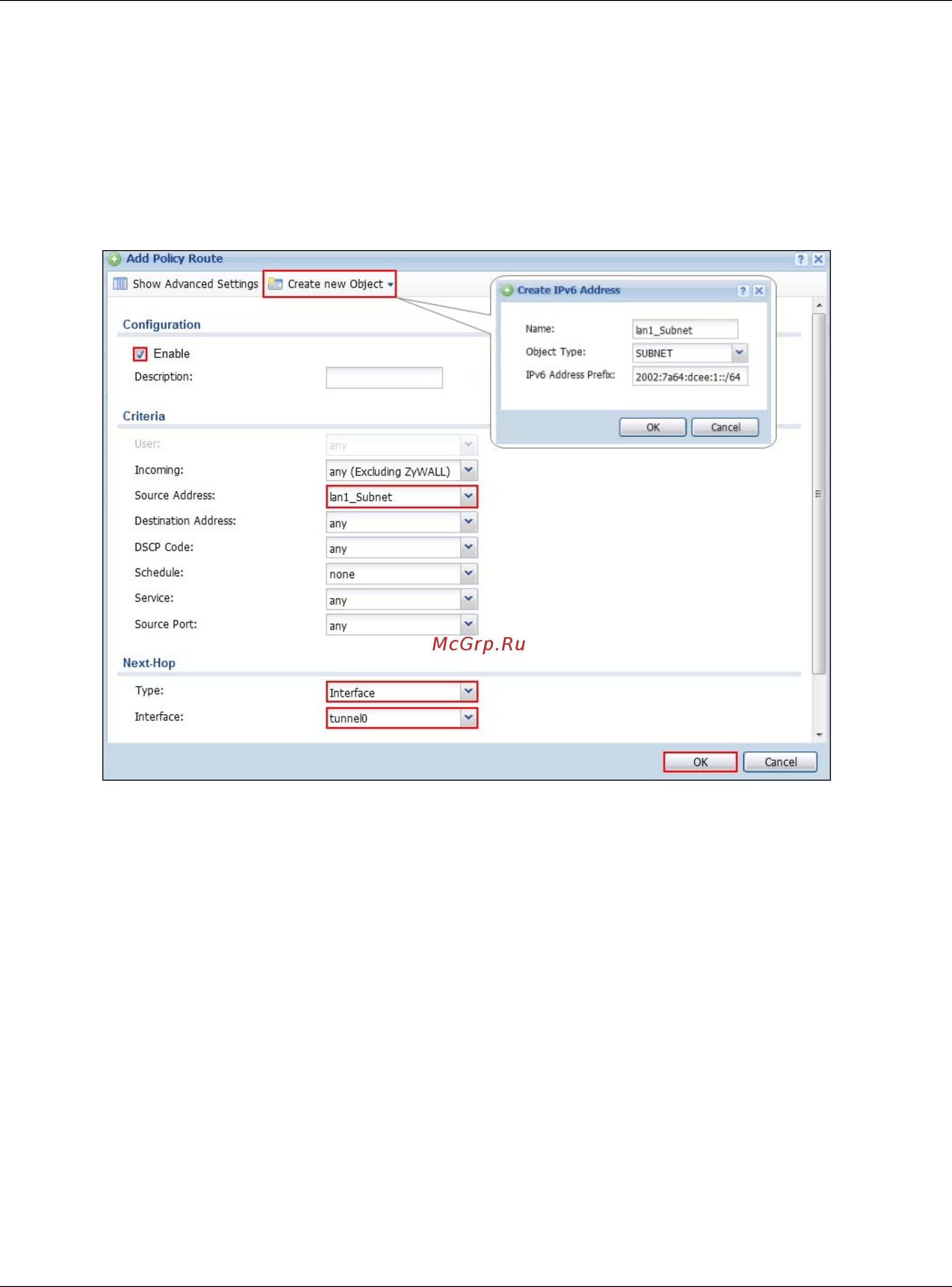

Figure 641 CONFIGURATION > Network > Routing > Policy Route > IPv6 Configuraiton
6.3.4 Test the Result
1 Connect a computer to the ZyWALL/USG’s LAN1.
2 Enable IPv6 support on your computer. In Windows XP, you need to use the IPv6 install command in
a Command Prompt. In Windows 7, IPv6 is supported by default. You can enable IPv6 in the
Control Panel > Network and Sharing Center > Local Area Connection screen.
