Chapter 3 Protect Your Network with UTM
ZyWALL/USG Series Handbook
56
3.2.2 Create the Application Objects on the ZyWALL/USG
1 In the ZyWALL/USG, go to CONFIGURATION > Object > Application > Add Application Rule.
Configure a Name for you to identify the Application Profile. Then, click Add to create an
Application Object.

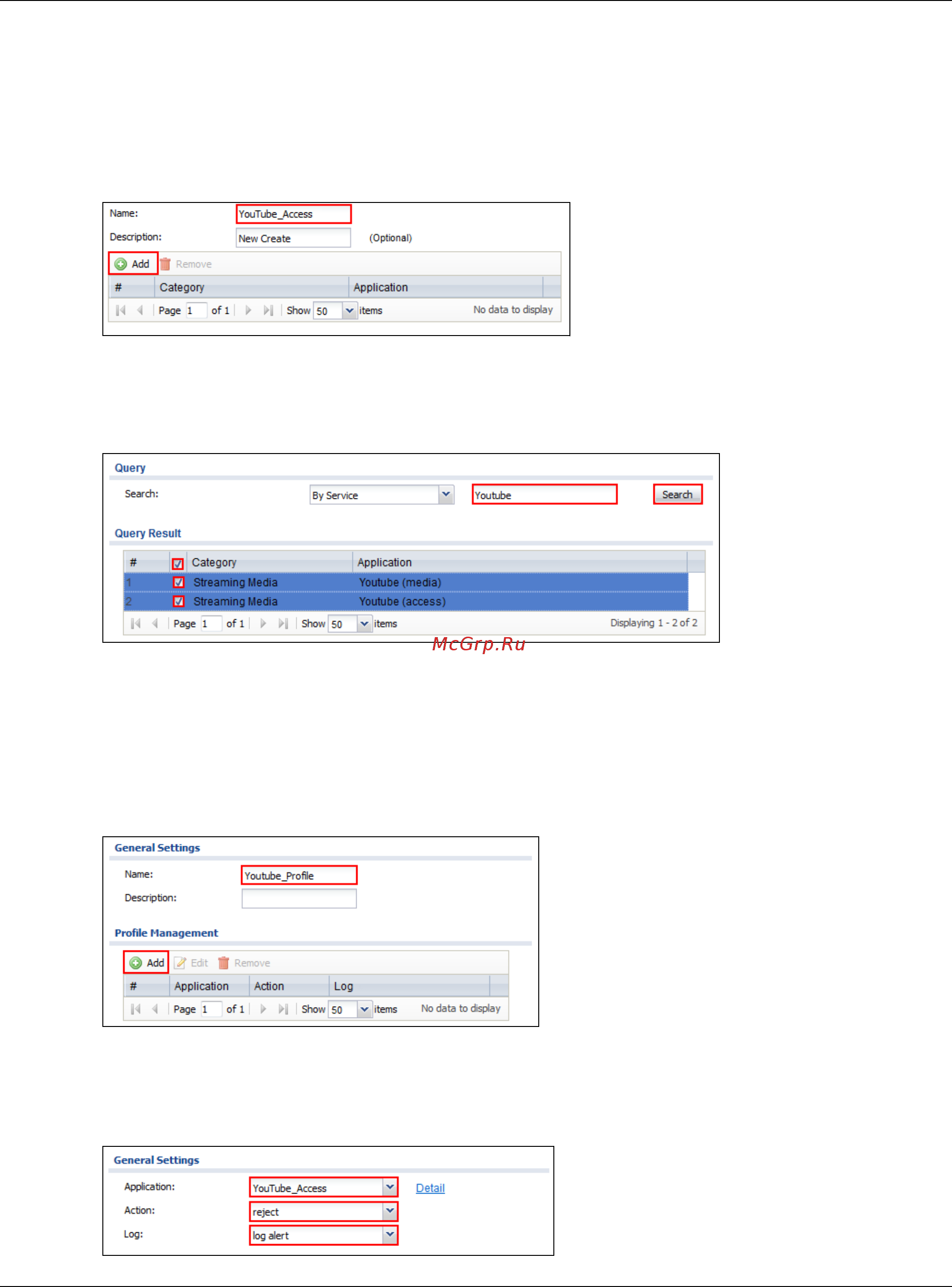

Figure 85 CONFIGURATION > Object > Application > Add Application Rule
2 In the Application Object, select By Service, type a keyword and click Search to display all
signatures containing that keyword. Check all Query Result and Click OK.
Figure 86 CONFIGURATION > Object > Application > Add Application Rule > Add
Application Object
3.2.3 Set Up the Application Patrol Profile on the ZyWALL/USG
1 Go to CONFIGURATION > UTM Profile > App Patrol > Add rule, configure a Name for you to
identify the App Patrol profile. Then, go to the Profile Management and click Add to configure
profile General Settings.
Figure 87 CONFIGURATION > UTM > App Patrol > Profile > Add
2 In the General Settings, select Application name of the policy (YouTube_Access in this
example).Select Action to be drop or reject that the ZyWALL/USG will drops packets without or
with notification. Select desired Log type.
Figure 88 CONFIGURATION > UTM > App Patrol > Profile > Add
