Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
188
4.8.6 Spoke_Branch_B

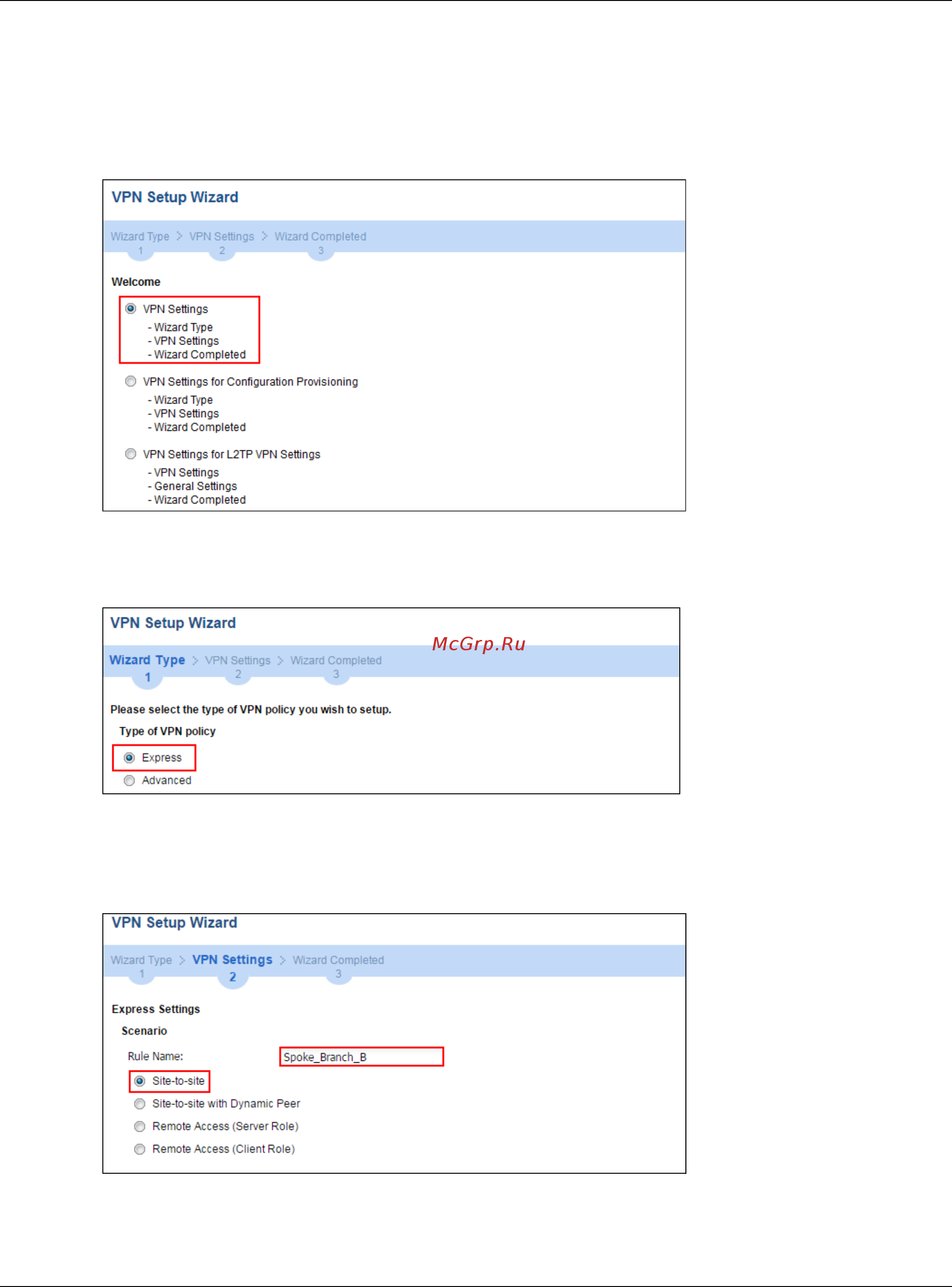

1 In the ZyWALL/USG, go to CONFIGURATION > Quick Setup > VPN Setup Wizard, use the VPN
Settings wizard to create a VPN rule that can be used with the remote ZyWALL/USG. Click Next.
Figure 391 Quick Setup > VPN Setup Wizard > Welcome
2 Choose Express to create a VPN rule with the default phase 1 and phase 2 settings and use a pre-
shared key to be the authentication method. Click Next.
Figure 392 Quick Setup > VPN Setup Wizard > Welcome > Wizard Type
3 Type the Rule Name used to identify this VPN connection (and VPN gateway). You may use 1-31
alphanumeric characters. This value is case-sensitive. Select the rule to be Site-to-site. Click
Next.
Figure 393 Quick Setup > VPN Setup Wizard > Wizard Type > VPN Settings (Scenario)
