Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
124
4 Configure Secure Gateway IP as the peer ZyWALL/USG’s WAN IP address (in the example,
172.101.30.68). Type a secure Pre-Shared Key (8-32 characters).
Set Local Policy to be the ZyWALL/USG local IP address that can use the VPN tunnel and set
Remote Policy to the peer ZyWALL/USG local IP address that can use the VPN tunnel. Click OK.

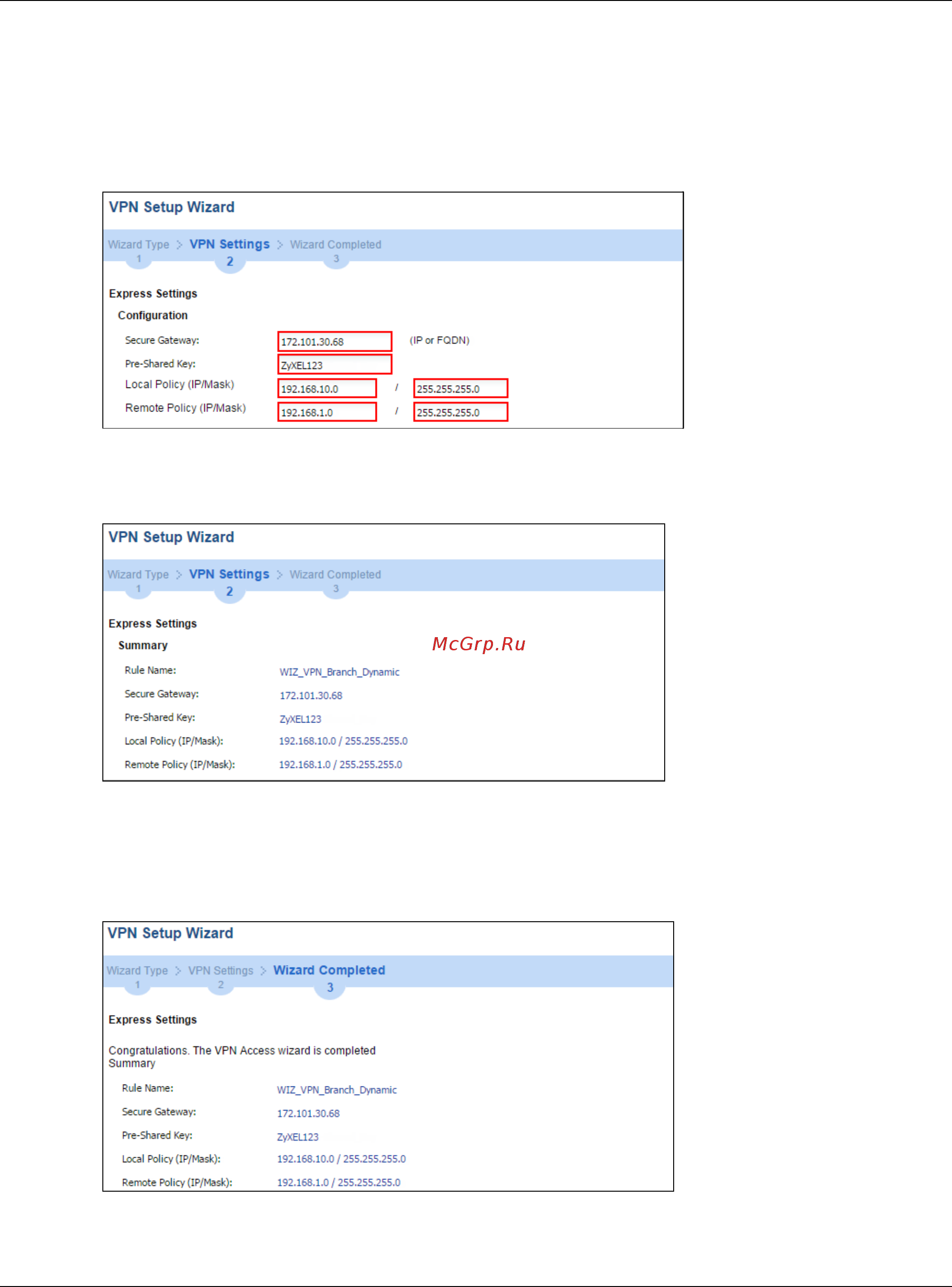

Figure 247 Quick Setup > VPN Setup Wizard > Wizard Type > VPN Settings
(Configuration)
5 This screen provides a read-only summary of the VPN tunnel. Click Save.
Figure 248 Quick Setup > VPN Setup Wizard > Welcome > Wizard Type > VPN Settings
(Summary)
6 Now the rule is configured on the ZyWALL/USG. The Phase 1 rule settings appear in the VPN >
IPSec VPN > VPN Gateway screen and the Phase 2 rule settings appear in the VPN > IPSec
VPN > VPN Connection screen. Click Close to exit the wizard.
Figure 249 Quick Setup > VPN Setup Wizard > Welcome > Wizard Type > VPN Settings >
Wizard Completed
