Chapter 5 Create Client-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

250

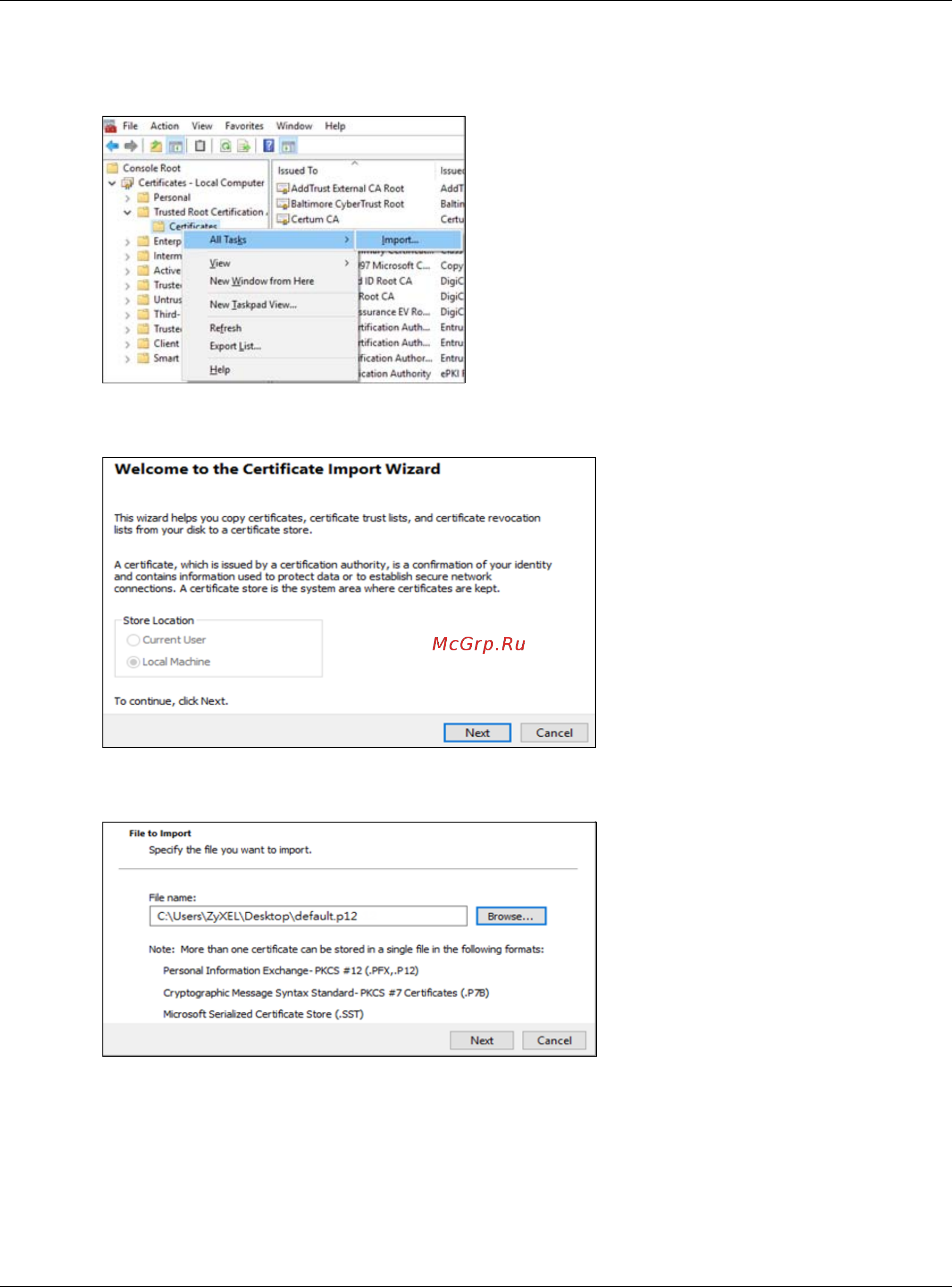

7 In the mmc console window, go to Certificates (Local Computer) > Trusted Root Certification

Authorities, right click Certificate > All Tasks > Import…

Figure 543 Click Import in mmc Console

8 Click Next.

Figure 544 Welcome to the Certificate Import Wizard

9 Click Browse..., and locate the .p12 file you downloaded earlier. Then, click Next.

Figure 545 Browse the .p12 file
