Chapter 5 Create Client-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

231

6 Go to CONFIGURATION > VPN > L2TP VPN > Create new Object > User to add User Name

and Password (4-24 characters). Then, set Allowed User to the newly created object

(L2TP_Remote_Users/zyx168 in this example).

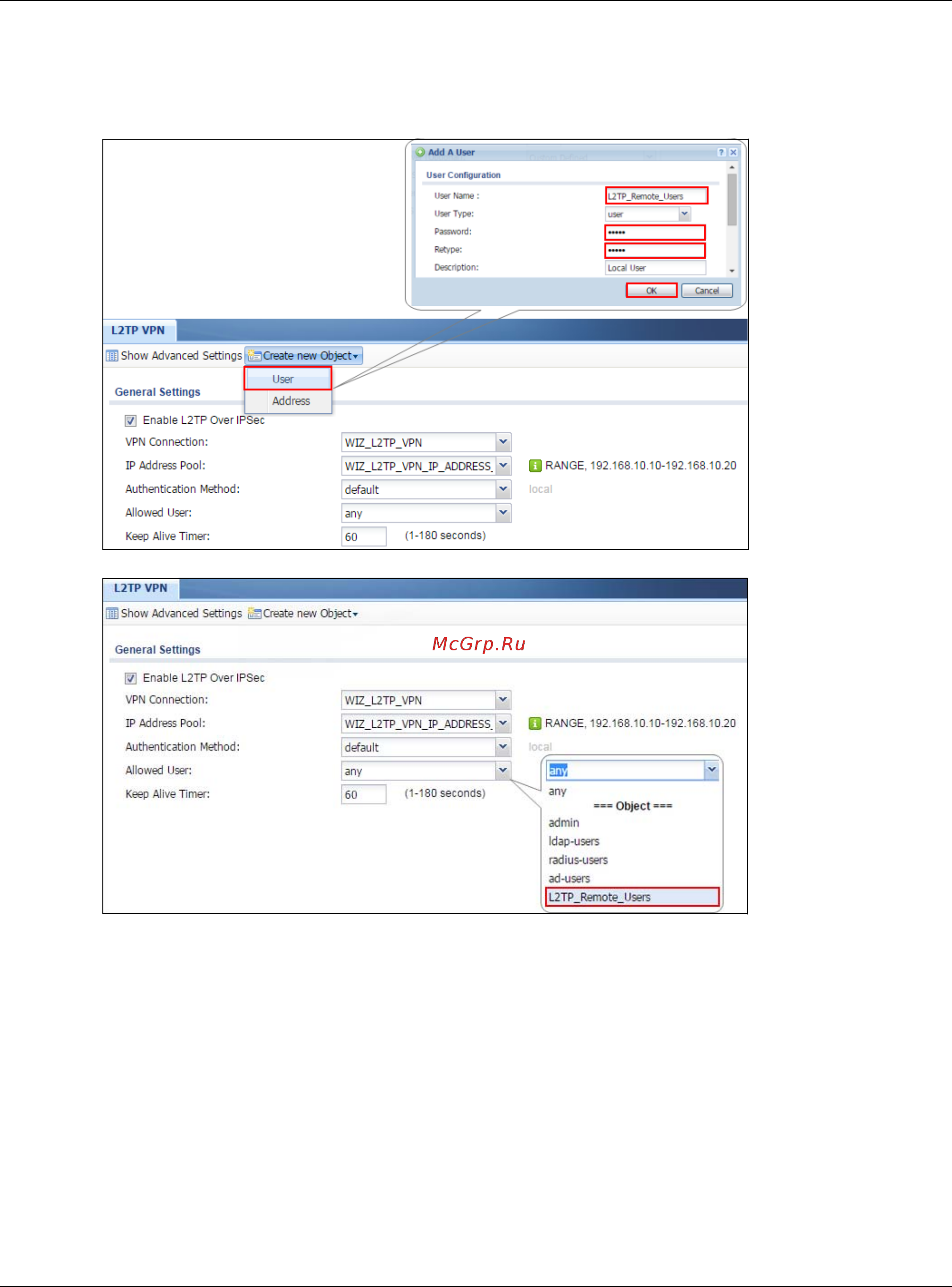

Figure 493 CONFIGURATION > VPN > L2TP VPN > Create new Object > User

Figure 494 Configure the L2TP VPN
