Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
129
5 This screen provides a read-only summary of the VPN tunnel. Click Save.

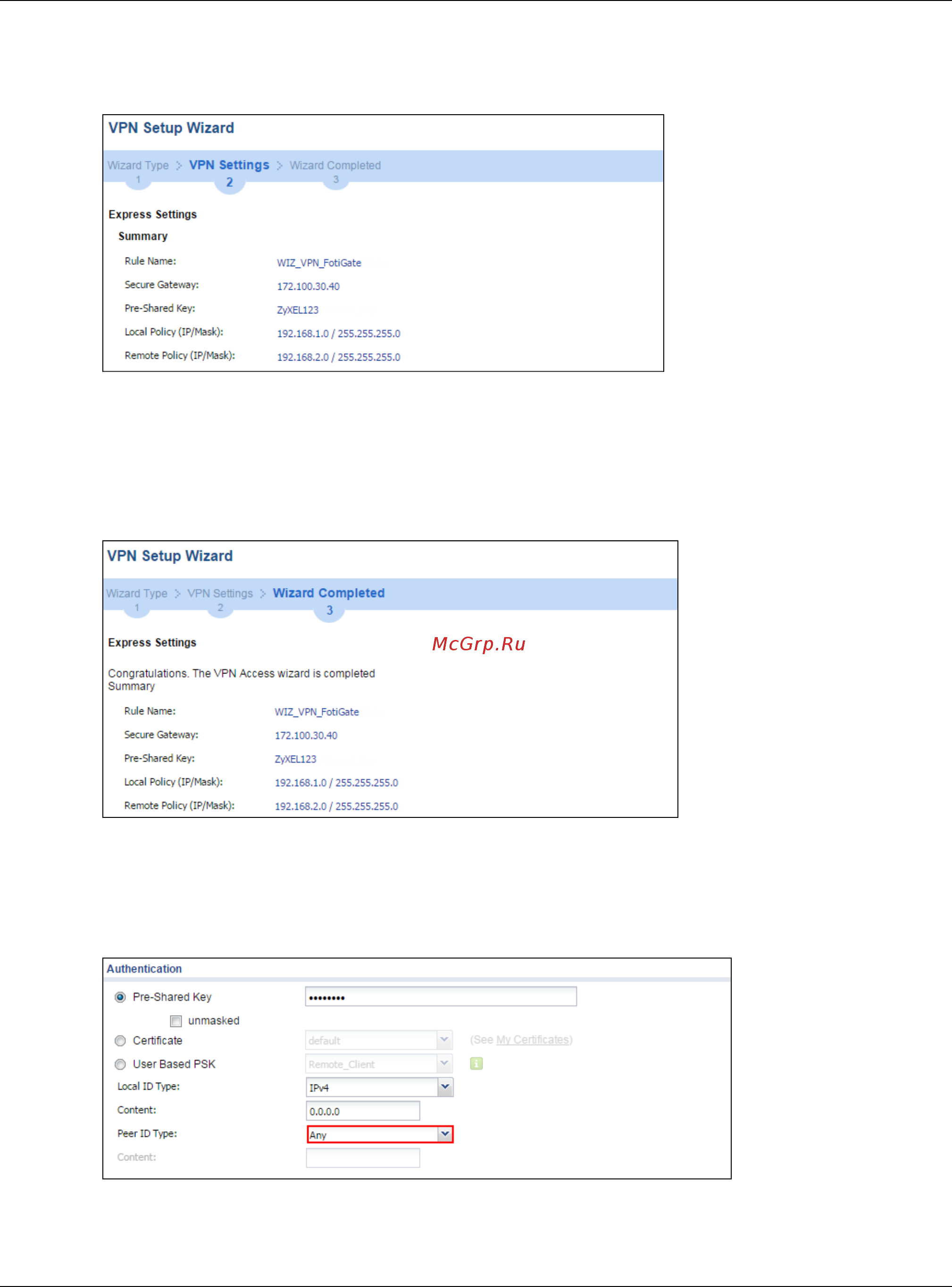

Figure 262 Quick Setup > VPN Setup Wizard > Welcome > Wizard Type > VPN Settings
(Summary)
6 Now the rule is configured on the ZyWALL/USG. The Phase 1 rule settings appear in the VPN >
IPSec VPN > VPN Gateway screen and the Phase 2 rule settings appear in the VPN > IPSec
VPN > VPN Connection screen. Click Close to exit the wizard.
Figure 263 Quick Setup > VPN Setup Wizard > Welcome > Wizard Type > VPN Settings >
Wizard Completed
Figure 264
7 Go to CONFIGURATION > VPN > IPSec VPN > VPN Gateway and click Show Advanced
Settings. Configure Authentication > Peer ID Type as Any to let the ZyWALL/USG does not
require to check the identity content of the remote IPSec router.
Figure 265 CONFIGURATION > VPN > IPSec VPN > VPN Gateway > Show Advanced
Settings > Authentication > Peer ID Type
