Chapter 1 Set Up Your Network

ZyWALL/USG Series Handbook

3 Enter the IP Address, IP Subnet Mask and Gateway IP Address exactly as given by your ISP

or network administrator. First/Second DNS Servers are optional. Click Next.

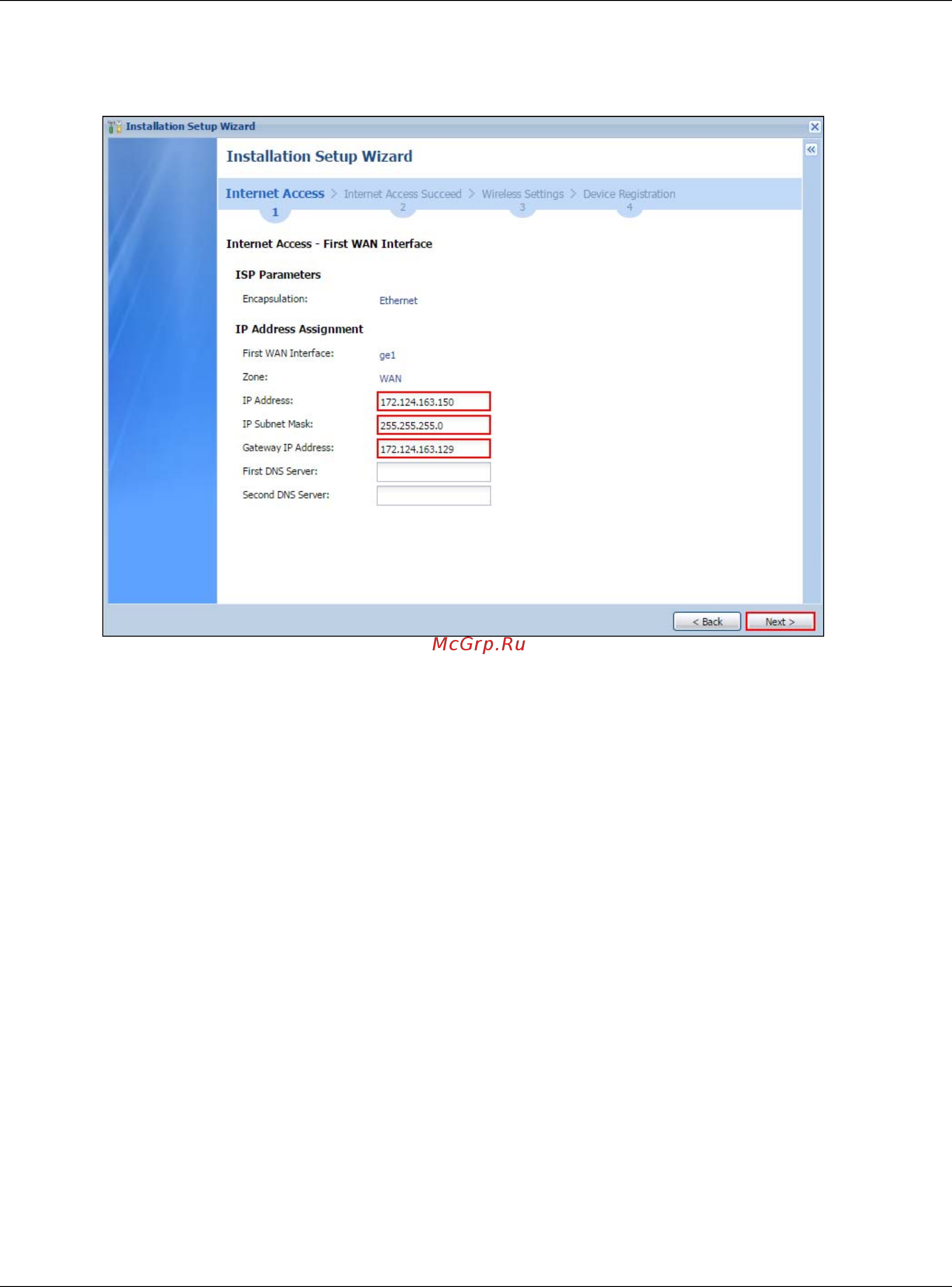

Figure 4 Installation Setup Wizard > Welcome > Internet Access
