Chapter 4 Create Site-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

140

3 Go to VPN > Site-to-site > Transform Sets, click Add to create a new Transform Set name.

Then, select Integrity and Encryption to match your ZyWALL/USG’s VPN Connection > Phase

2 Settings. Click OK and click Save to exit the Transform Sets page.

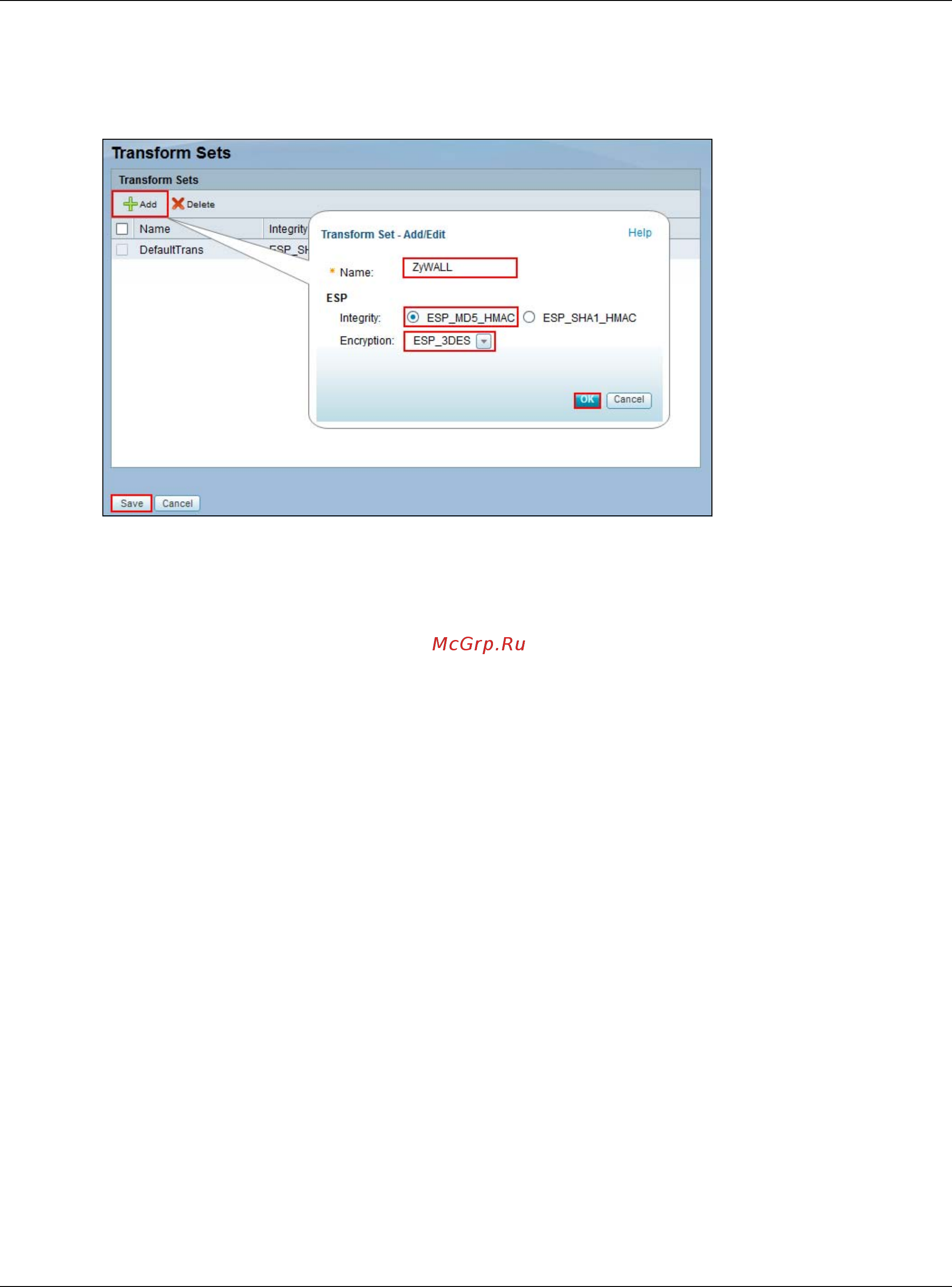

Figure 290 VPN > Site-to-site > Transform Sets
