Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
143

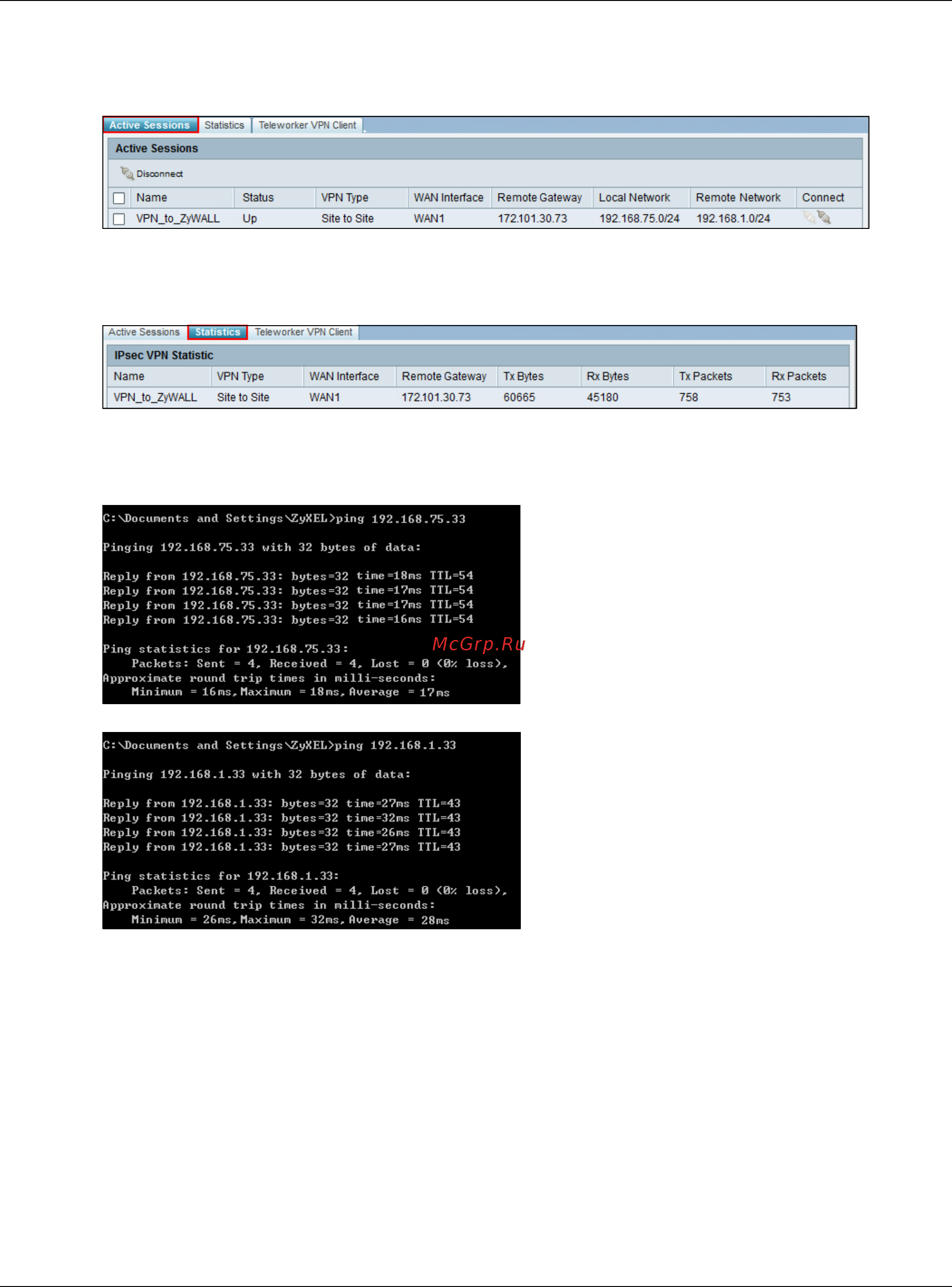

3 Go to Cisco VPN > VPN Status > IPsec VPN Status > Active Sessions and check the tunnel
Status is up.
Figure 295 VPN > VPN Status > IPsec VPN Status > Active Sessions
4 Go to Cisco VPN > VPN Status > IPsec VPN Status > Statics and check the Tx Packets
(Transmit data) and Rx Packets (Receive data).
Figure 296 VPN > VPN Status > IPsec VPN Status > Statistics
5 To test whether or not a tunnel is working, ping from a computer at one site to a computer at the
other. Ensure that both computers have Internet access (via the IPSec devices).
Figure 297 PC behind ZyWALL/USG > Window 7 > cmd > ping 192.168.75.33
Figure 298 PC behind Cisco> Window 7 > cmd > ping 192.168.1.33
