Chapter 4 Create Site-to-Site VPN Tunnels
ZyWALL/USG Series Handbook
181
4 Then, configure the Secure Gateway IP as the Branch A’s Gateway IP address (in the example,
172.16.20.1). Type a secure Pre-Shared Key (8-32 characters) which must match your Branch
A’s Pre-Shared Key.
Set Local Policy to be the IP address range of the network connected to the Hub_HQ and
Remote Policy to be the IP address range of the network connected to the Branch A. Click OK.

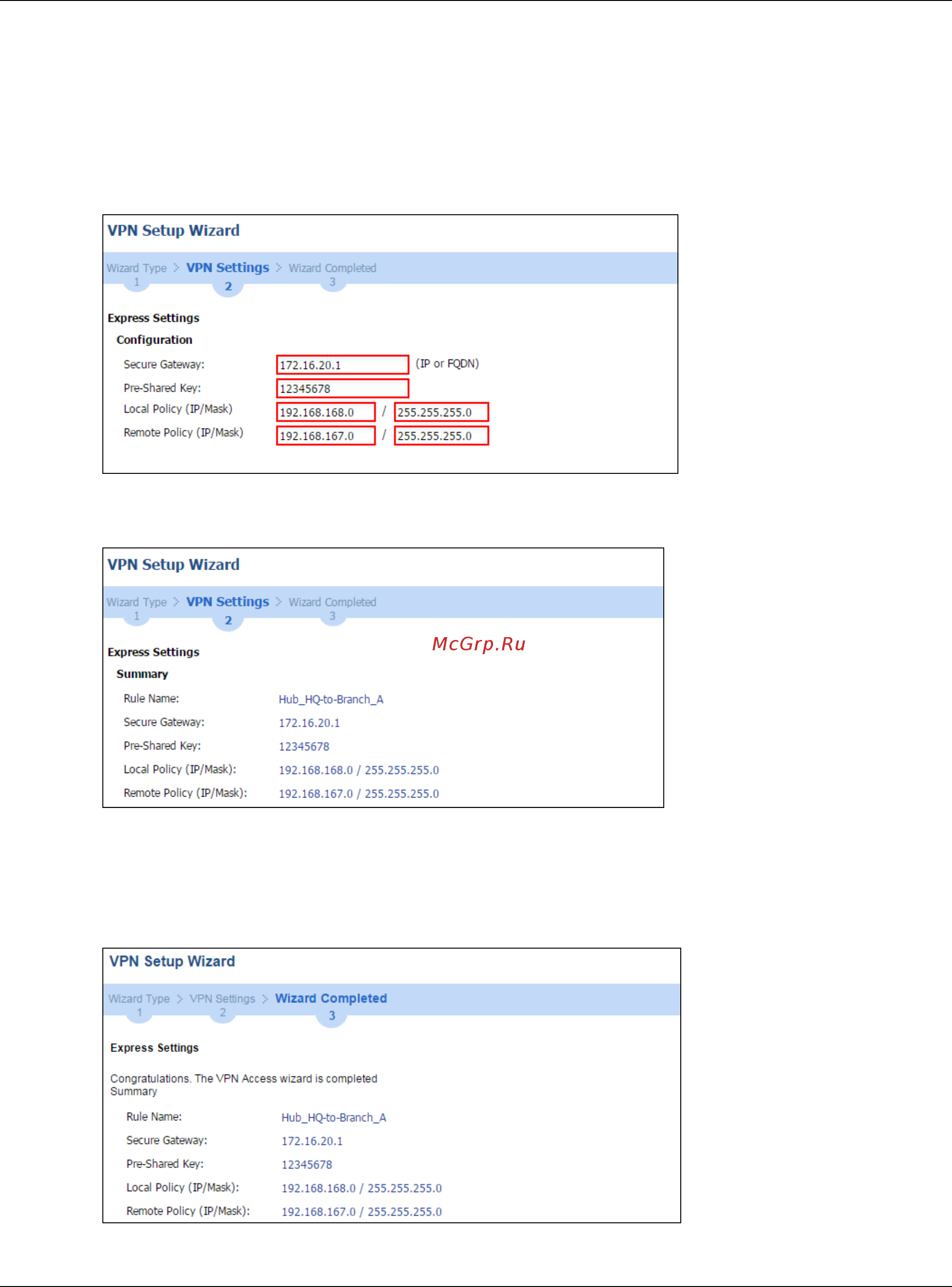

Figure 373 Quick Setup > VPN Setup Wizard > Wizard Type > VPN Settings
(Configuration)
5 This screen provides a read-only summary of the VPN tunnel. Click Save.
Figure 374 Quick Setup > VPN Setup Wizard > Wizard Type > VPN Settings (Summary)
6 Now the rule is configured on the ZyWALL/USG. The Phase 1 rule settings appear in the VPN >
IPSec VPN > VPN Gateway screen and the Phase 2 rule settings appear in the VPN > IPSec
VPN > VPN Connection screen. Click Close to exit the wizard.
Figure 375 Quick Setup > VPN Setup Wizard > Wizard Type > VPN Settings > Wizard
Completed
