Chapter 4 Create Site-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

197

3 Click Create new Object on the upper bar to add the address range of the local network behind

Hub_HQ to Branch_A and an address of local network behind Branch B.

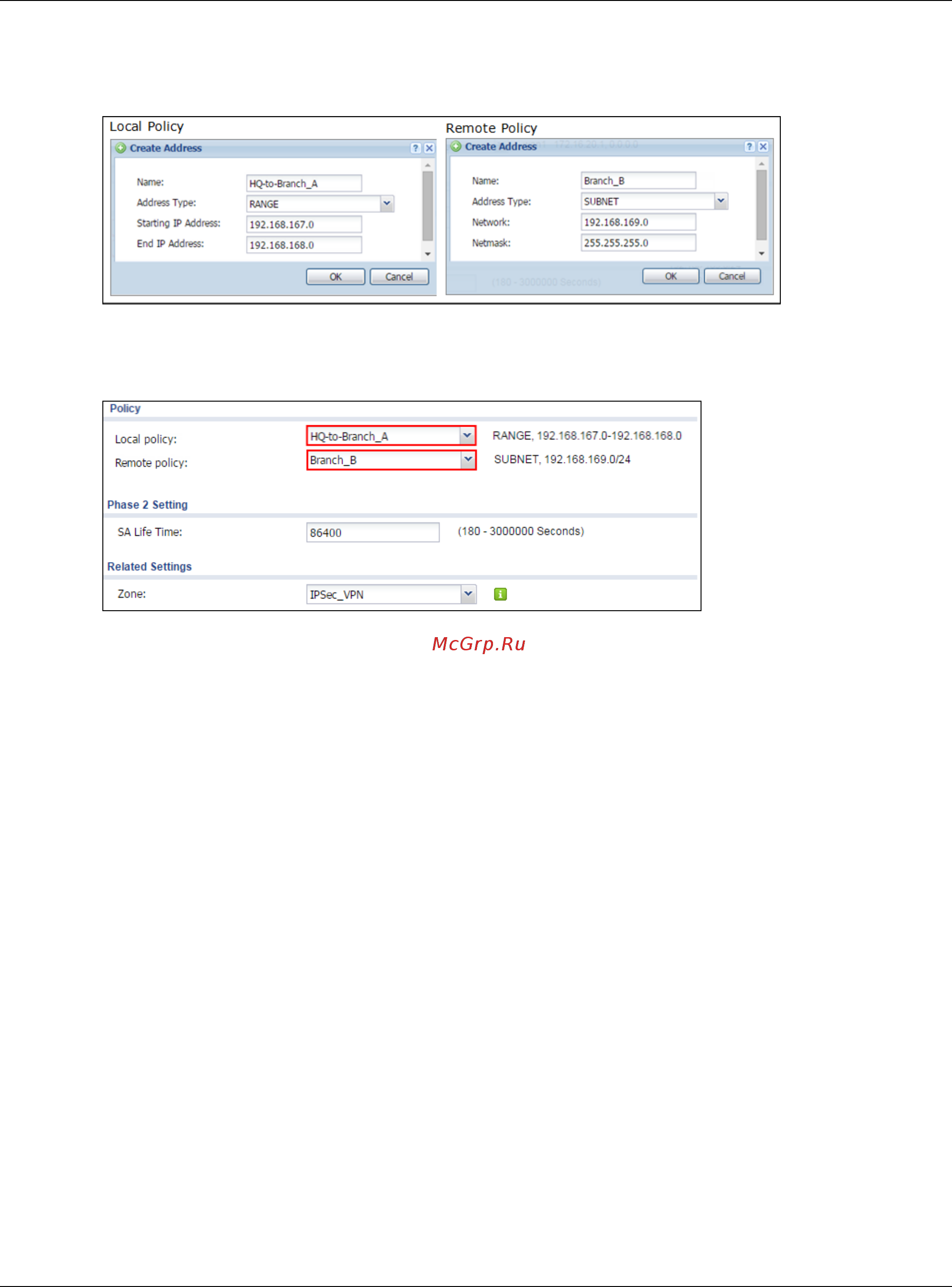

Figure 414 CONFIGURATION > VPN > IPSec VPN > VPN Connection > Create new Object

4 Set Local Policy to be HQ-to-Branch_B and Remote Policy to Branch_B which are newly

created. Click OK.

Figure 415 CONFIGURATION > VPN > IPSec VPN > VPN Connection > Policy
