Chapter 4 Create Site-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

218

2 Go to ZyWALL/USG MONITOR > VPN Monitor > IPSec and verify the tunnel Up Time and the

Inbound(Bytes)/Outbound(Bytes) traffic. Click Connectivity Check to verify the result of

ICMP Connectivity.

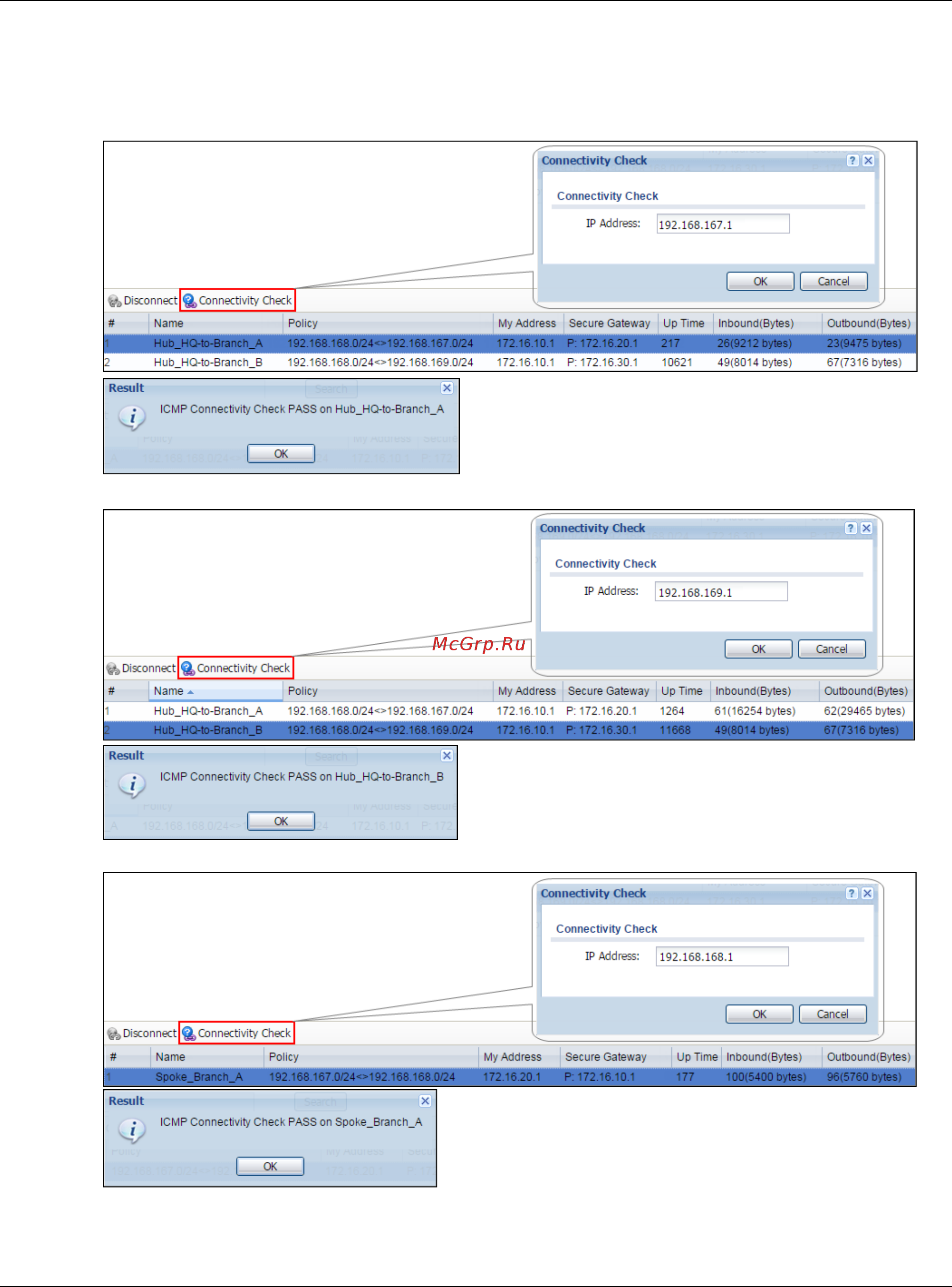

Figure 458 Hub_HQ > MONITOR > VPN Monitor > IPSec > Hub_HQ-to-Branch_A

Figure 459 Hub_HQ > MONITOR > VPN Monitor > IPSec > Hub_HQ-to-Branch_B

Figure 460 Spoke_Branch_A > MONITOR > VPN Monitor > IPSec
