Chapter 5 Create Client-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

240

7 If some of the traffic from the L2TP clients need to go to the Internet, create a policy route to send

traffic from the L2TP tunnels out through a WAN trunk. Set Incoming to Tunnel and select your

L2TP VPN connection. Set the Source Address to be the L2TP address pool. Set the Next-Hop

Type to Trunk and select the appropriate WAN trunk.

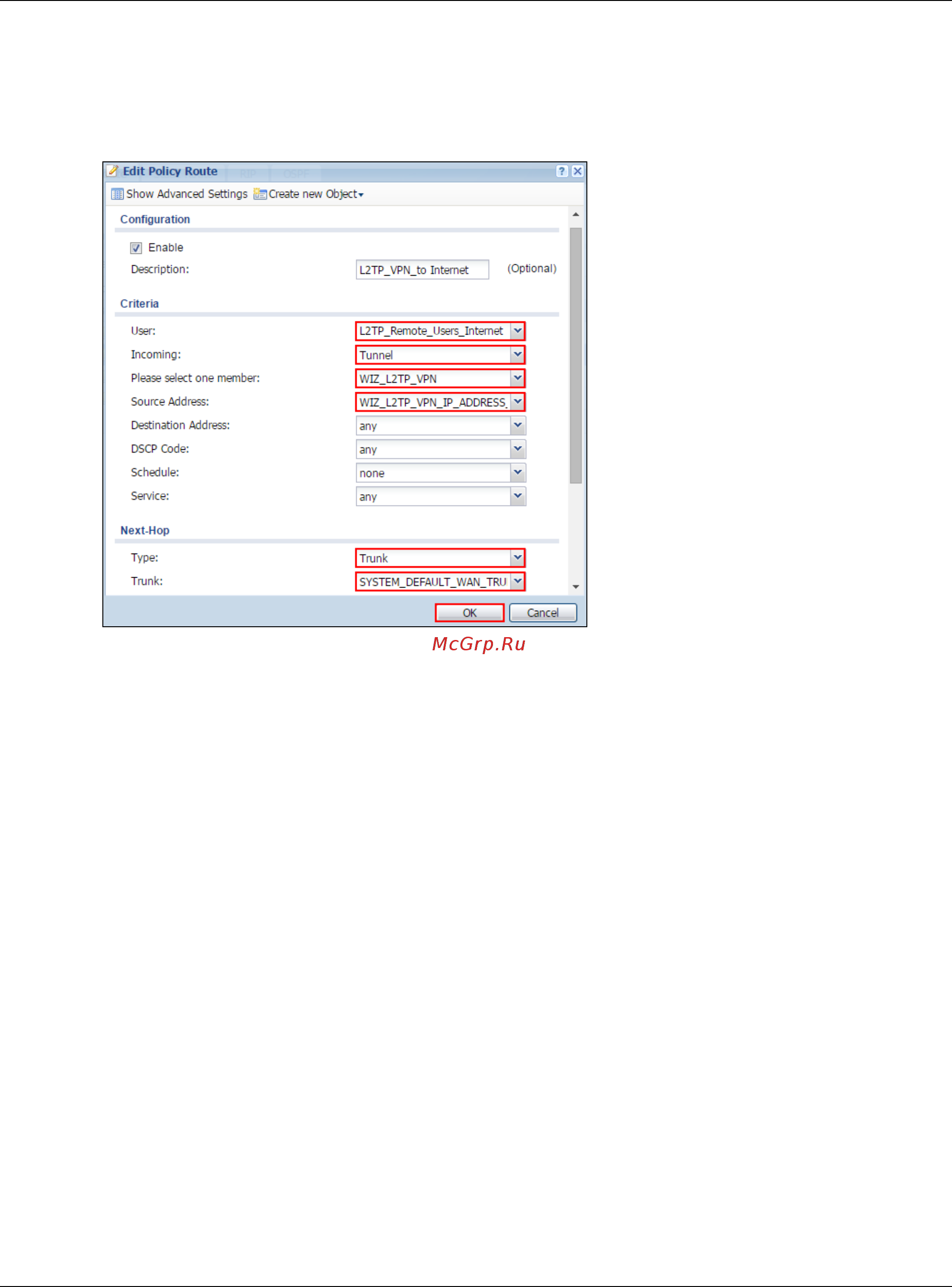

Figure 517 CONFIGURATION > Network > Routing > Policy Route
