Chapter 1 Set Up Your Network

ZyWALL/USG Series Handbook

2 Click portal.myzyxel.com to register the device, you need the ZyWALL/USG’s serial number and

LAN MAC address to register it. See 3.1 How To Register Your Device and Services at

myZyXEL.com for more details. Use the Configuration > Licensing > Registration > Service

screen to update your service subscription status. Click Finish.

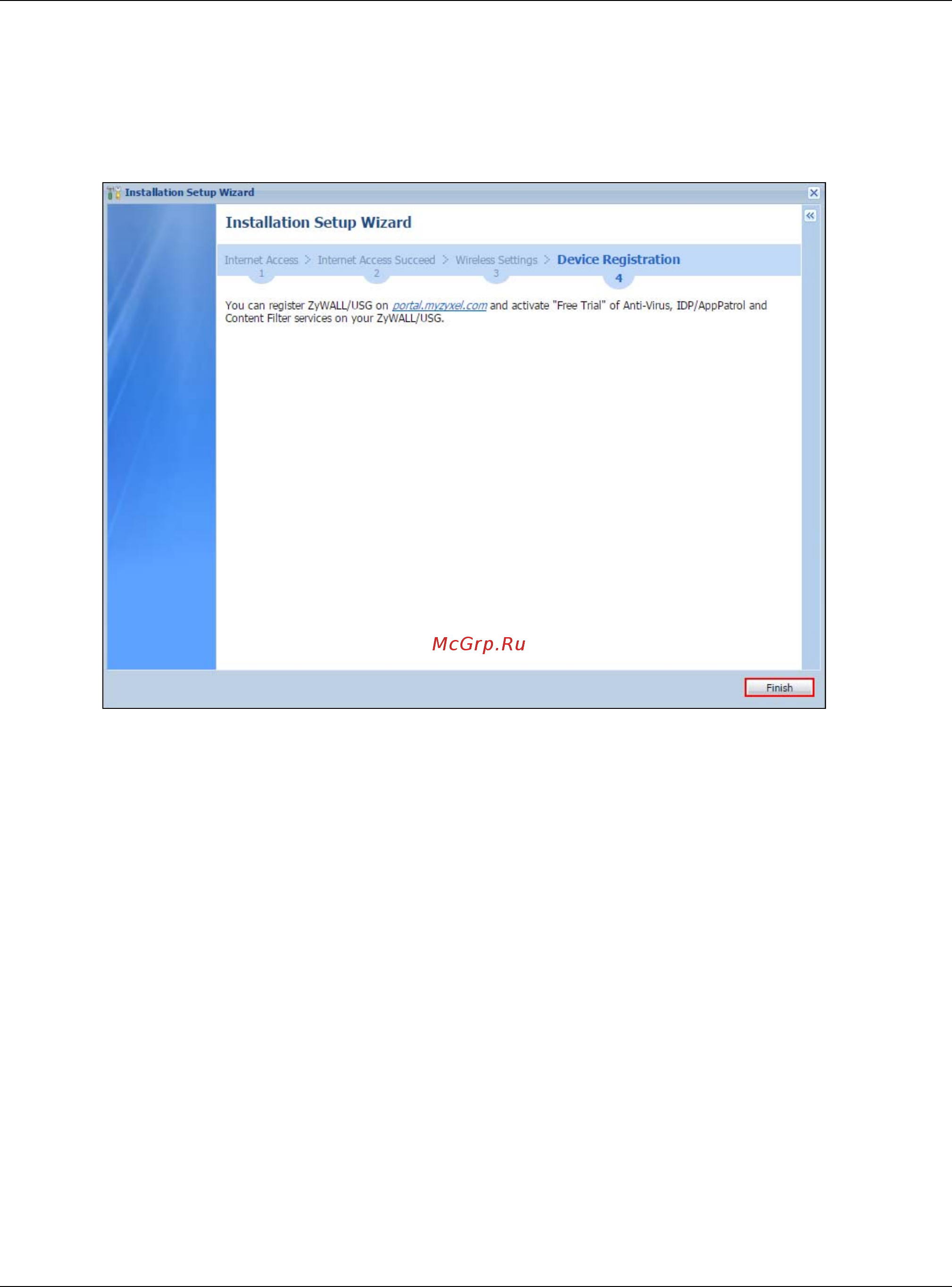

Figure 16 Installation Setup Wizard > Welcome > Internet Access > Internet Access

Succeed > Wireless Settings > Device Registration
