Chapter 5 Create Client-to-Site VPN Tunnels

ZyWALL/USG Series Handbook

272

2 Go to ZyWALL SecuExtender > Details and check Traffic Graph, Network Traffic Statics and

Log Details.

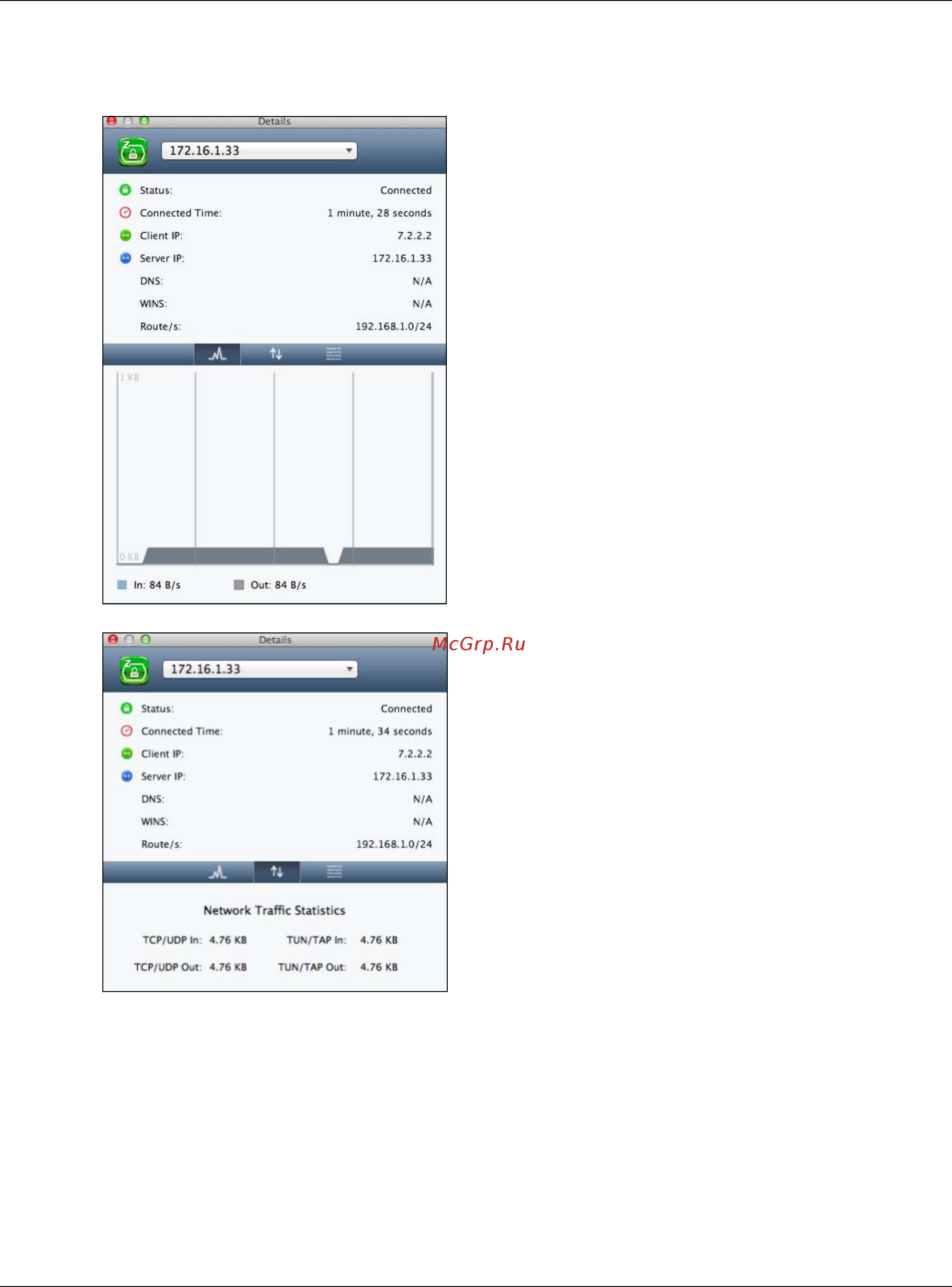

Figure 595 ZyWALL SecuExtender > Details > Traffic Graph

Figure 596 ZyWALL SecuExtender > Details > Network Traffic Statics
