Chapter 2 Set Up WiFi
ZyWALL/USG Series Handbook
39
2 In the ZyWALL/USG, go to CONFIGURATION > Object > Address > Add Address Rule to
create the guest Wi-Fi user access subnet. In this example, AP is connected to ZyWALL/USG LAN
interface 192.168.2.0/24. Configure the Name for you to identify the Wi-Fi guest subnet. Set the
Network to be 192.168.2.0 and set the Netmask to be 255.255.255.0. Click OK.

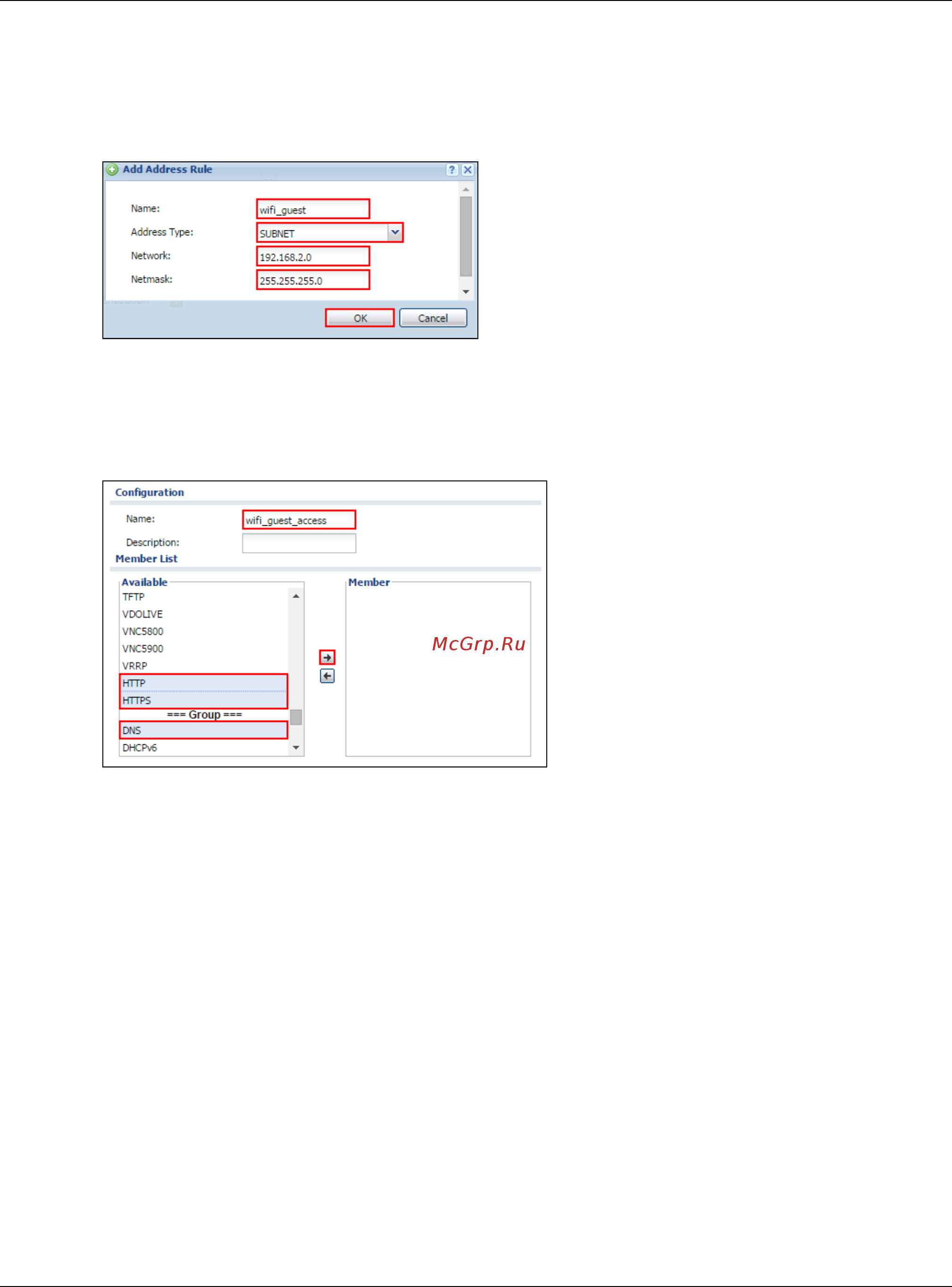

Figure 45 CONFIGURATION > Object > Address > Add Address Rule
3 In the ZyWALL/USG, go to CONFIGURATION > Object > Service > Service Group > Add
Service Group Rule to create the allowed protocols for guest Wi-Fi user. Configure the Name for
you to identify the Service Group. Set HTTP, HTTPS and DNS to be in the same member group
and click OK.
Figure 46 CONFIGURATION > Object > Service > Service Group > Add Service Group Rule
