Chapter 3 Protect Your Network with UTM

ZyWALL/USG Series Handbook

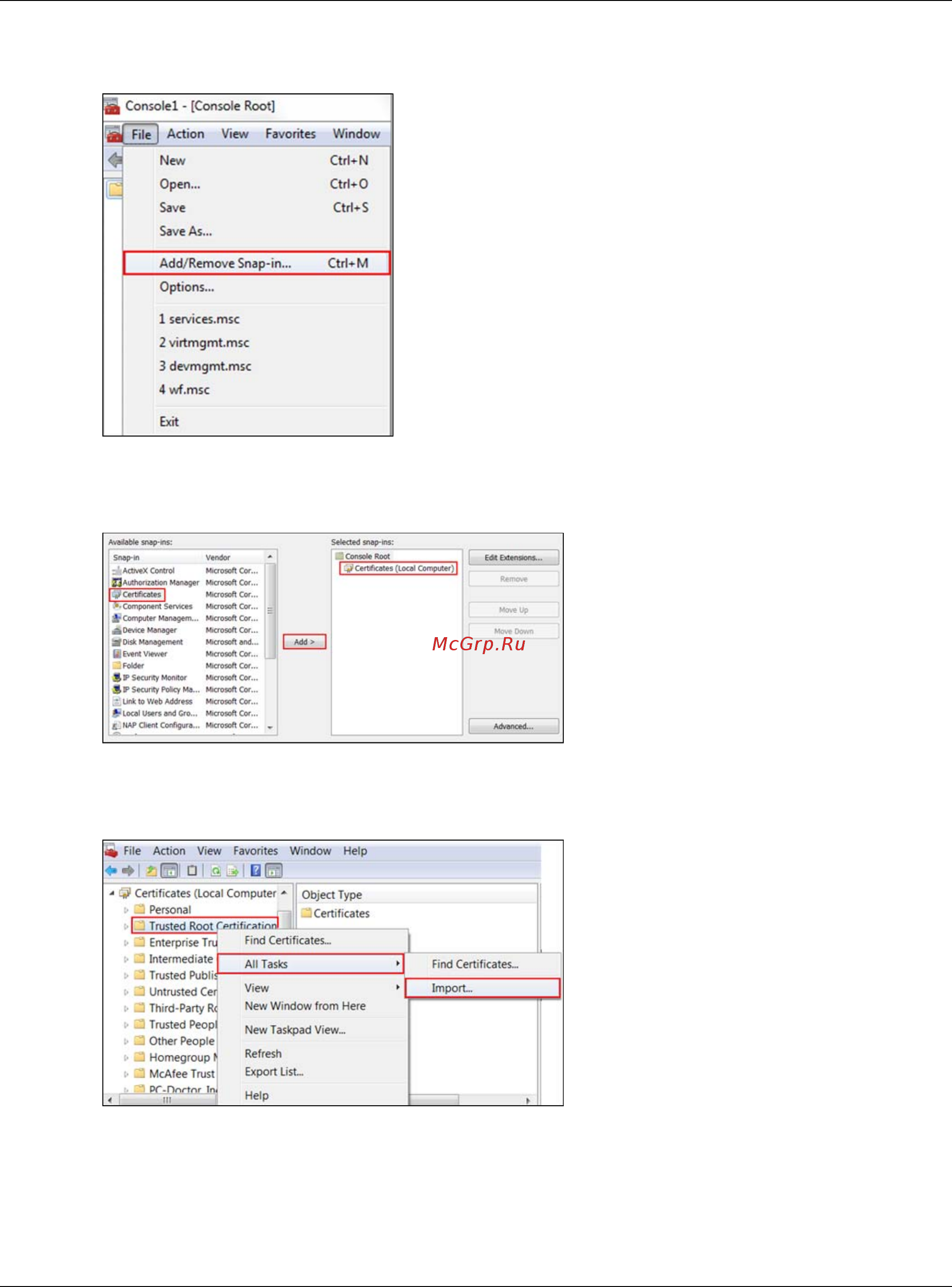

5 In the mmc console window, click File > Add/Remove Snap-in...

Figure 157 File > Add/Remove Snap-in...

6 In the Available snap-ins, select the Certificates and click Add button. Select Computer

account > Local Computer. Then, click Finished and OK to close the Snap-ins window.

Figure 158 Available snap-ins > Certificates > Add

7 In the mmc console window, open the Certificates (Local Computer) > Trusted Root

Certification Authorities, right click Certificate > All Tasks > Import…

Figure 159 Click Import in mmc Console
