Lenovo B50-30/B50-30 Touch/B50-45/B50-70
35

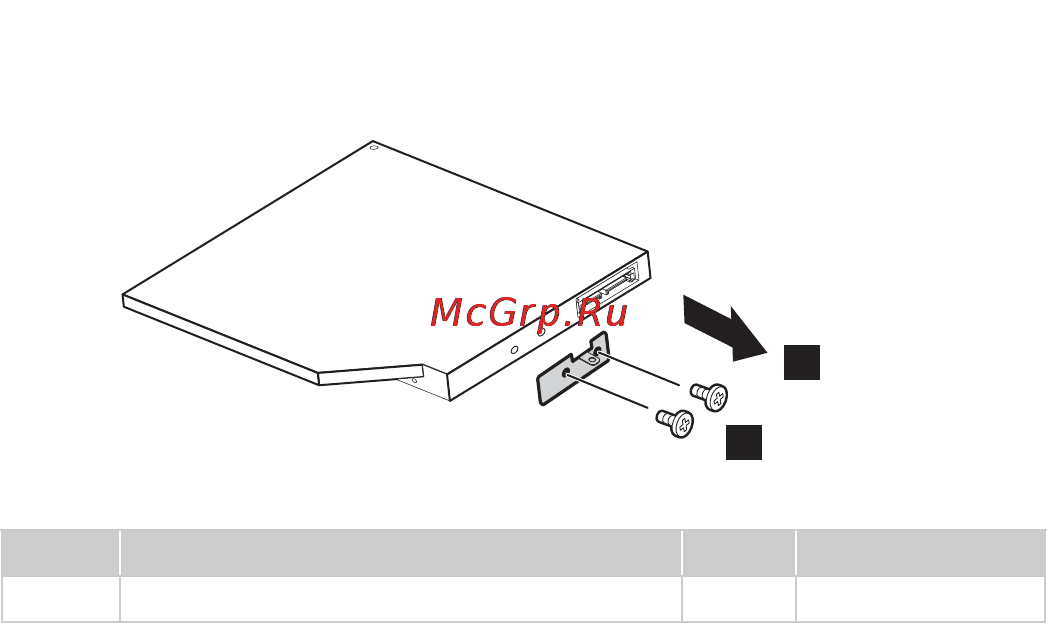

Figure2.Removalstepsofopticaldrive(continued)
Removetwoscrews andremovetheopticaldrivebracketinthedirectionby
arrow .
Step Screw (quantity) Color Torque
M2x3mm,flat‐head,nylok‐coated(2) Black 1.0~1.5kgf.cm
d
e
4
2
5
d
