Lenovo B50-30/B50-30 Touch/B50-45/ B50-70
Hardware Maintenance Manual
60
1180 LCD panel
Foraccess,removetheseFRUsinorder:
• “1010Batterypack”onpage33
• “1020Opticaldrive”onpage34
• “1030Bottomslotcover”onpage36
• “1040Harddiskdrive”onpage37
• “1050DIMM”onpage39
• “1060PCIExpressMiniCardforwirelessLAN/WAN”onpage40
• “1070Keyboard”onpage41
• “1080Keyboardbezel”onpage43
• “1110Ledboard”onpage48
• “1130Systemboard”onpage50
• “1160LCDunitandbasecover”onpage55
• “1170LCDfrontbezel”onpage59

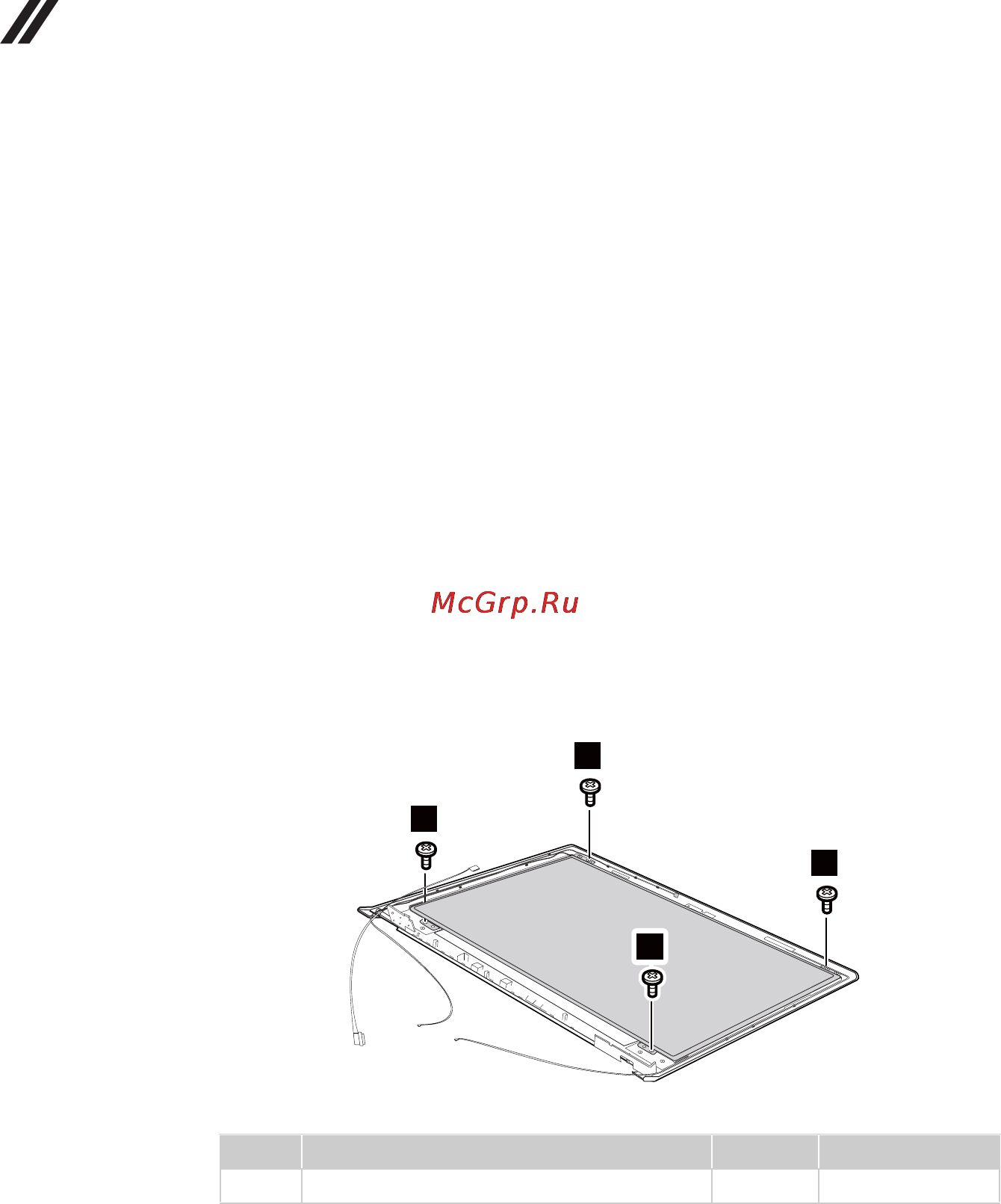

Figure18.RemovalstepsofLCDpanel
Removefourscrews .
.
Step Screw (quantity) Color Torque
M2x4mm,flat‐head,nylok‐coated(4) Black 1.5~2.0kgf.cm
a
1
1
1
1
a
