Lenovo B50-30/B50-30 Touch/B50-45/B50-70
43
1080 Keyboard bezel
Foraccess,removetheseFRUs:
• “1010Batterypack”onpage33
• “1020Opticaldrive”onpage34
• “1030Bottomslotcover”onpage36
• “1070Keyboard”onpage41

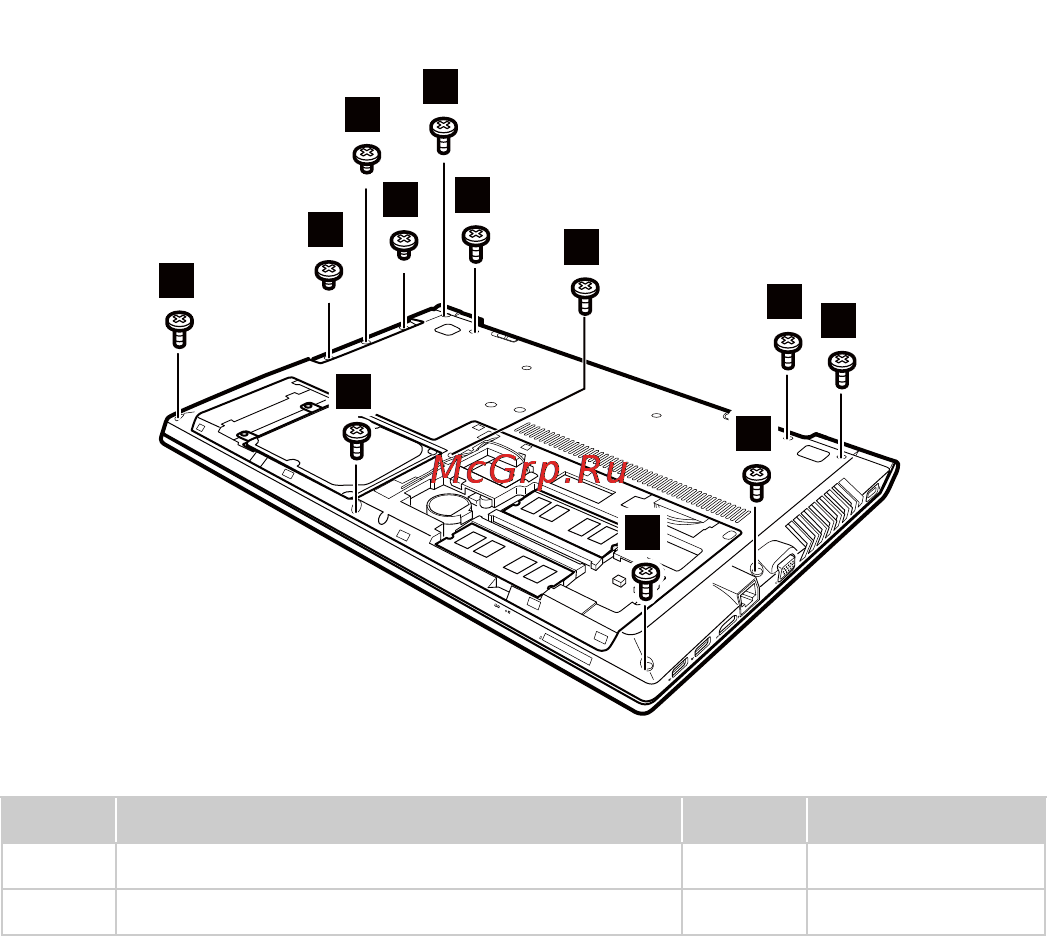

Figure8.Removalstepsofkeyboardbezel
Removeninescrews andthreescrews .
Step Screw (quantity) Color Torque
M2.5x5mm,flat‐head,nylok‐coated(9) Black 2.0~2.5kgf.cm
M2x2mm,flat‐head,nylok‐coated(3) Black 1.0~1.5kgf.cm
a
b
1
1
1
1
1
1
1
1
1
2
2
2
a
b
