Lenovo B50-30/B50-30 Touch/B50-45/B50-70
59
1170 LCD front bezel
Foraccess,removetheseFRUs:
• “1010Batterypack”onpage33
• “1020Opticaldrive”onpage34
• “1030Bottomslotcover”onpage36
• “1040Harddiskdrive”onpage37
• “1050DIMM”onpage39
• “1060PCIExpressMiniCardforwirelessLAN/WAN”onpage40
• “1070Keyboard”onpage41
• “1080Keyboardbezel”onpage43
• “1110Ledboard”onpage48
• “1130Systemboard”onpage50
• “1160LCDunitandbasecover”onpage55

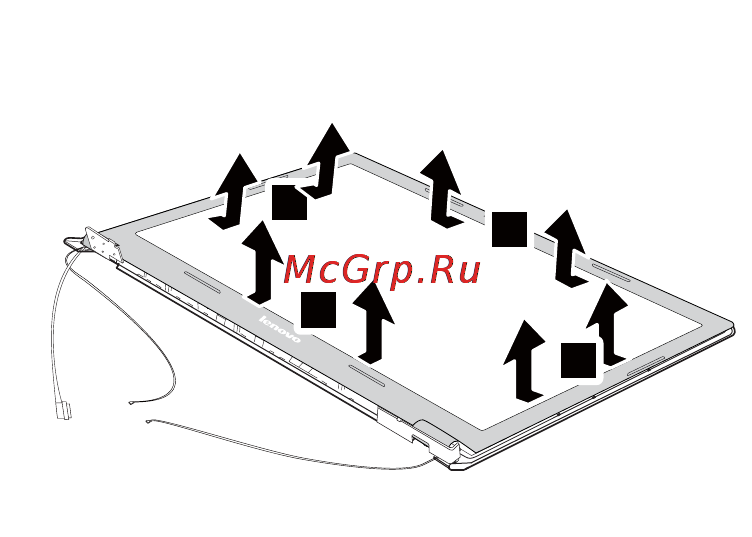

Figure17.RemovalstepsofLCDfrontbezel
RemovetheLCDfrontbezelinthedirectionbyarrow .
a
1
1
1
1
