ioLogik E4200 Introduction
1-6
I/O Module

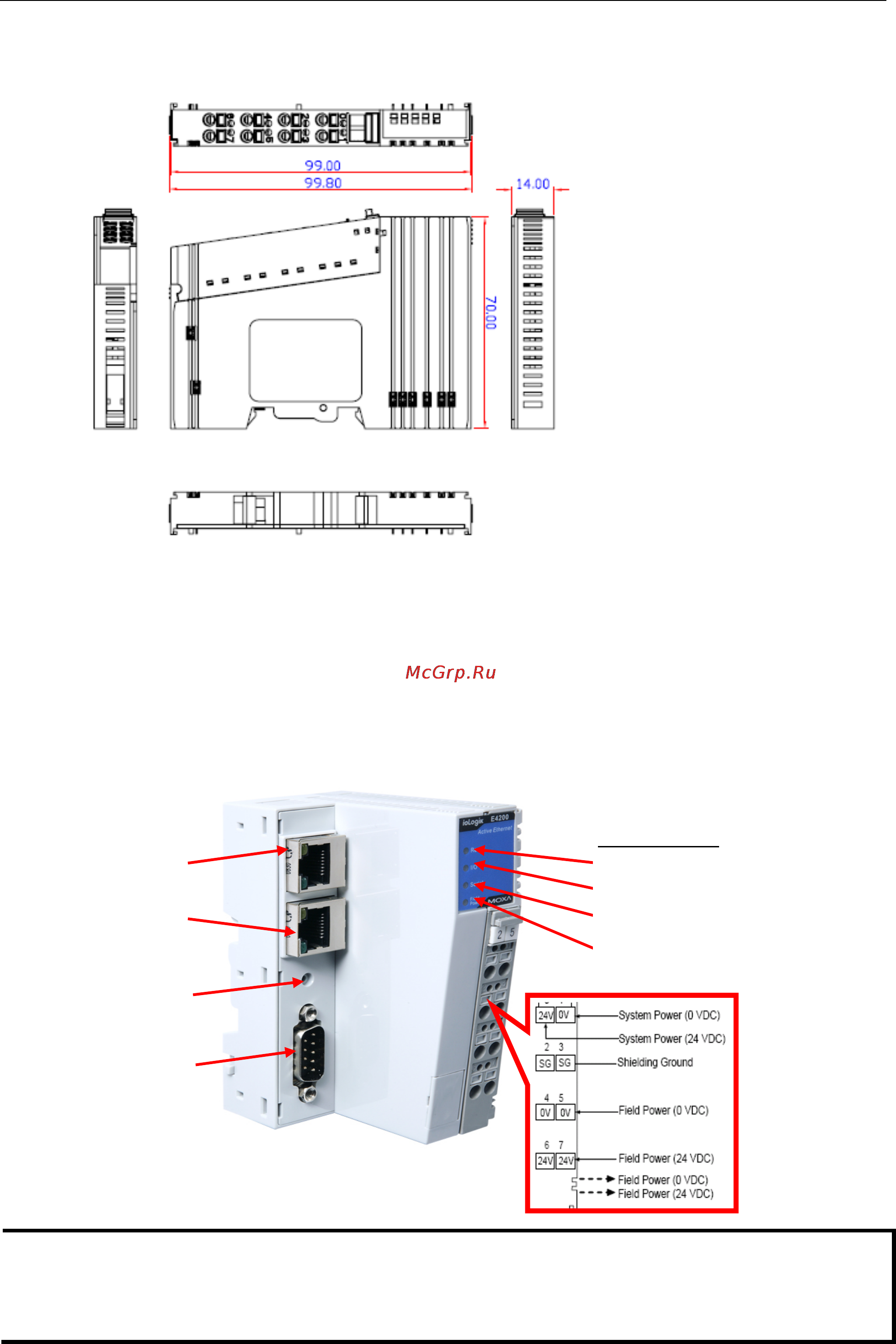

Unit: mm; W x H x D: 14 x 99.8 x 70 mm
Hardware Reference
Panel Guide
NOTE
The reset button restarts the
system
and resets all settings to factory defaults. Use a pointed object such as a
straightened paper clip to hold in the reset button down for 5 sec. The READY LED will turn red as you
are
holding the reset button down. The factory defaults will be loaded once the READY LED turns green again. You
may then release the reset button.
LED Indicators
Ready: System Status
I/O: Module Detection
Serial: RS-232 Status
Field Power: Power for I/O Points
Reset
Ethernet LAN 0
Ethernet LAN 1
COM (RS
-232)
