ioLogik E4200 Utilities
3-23

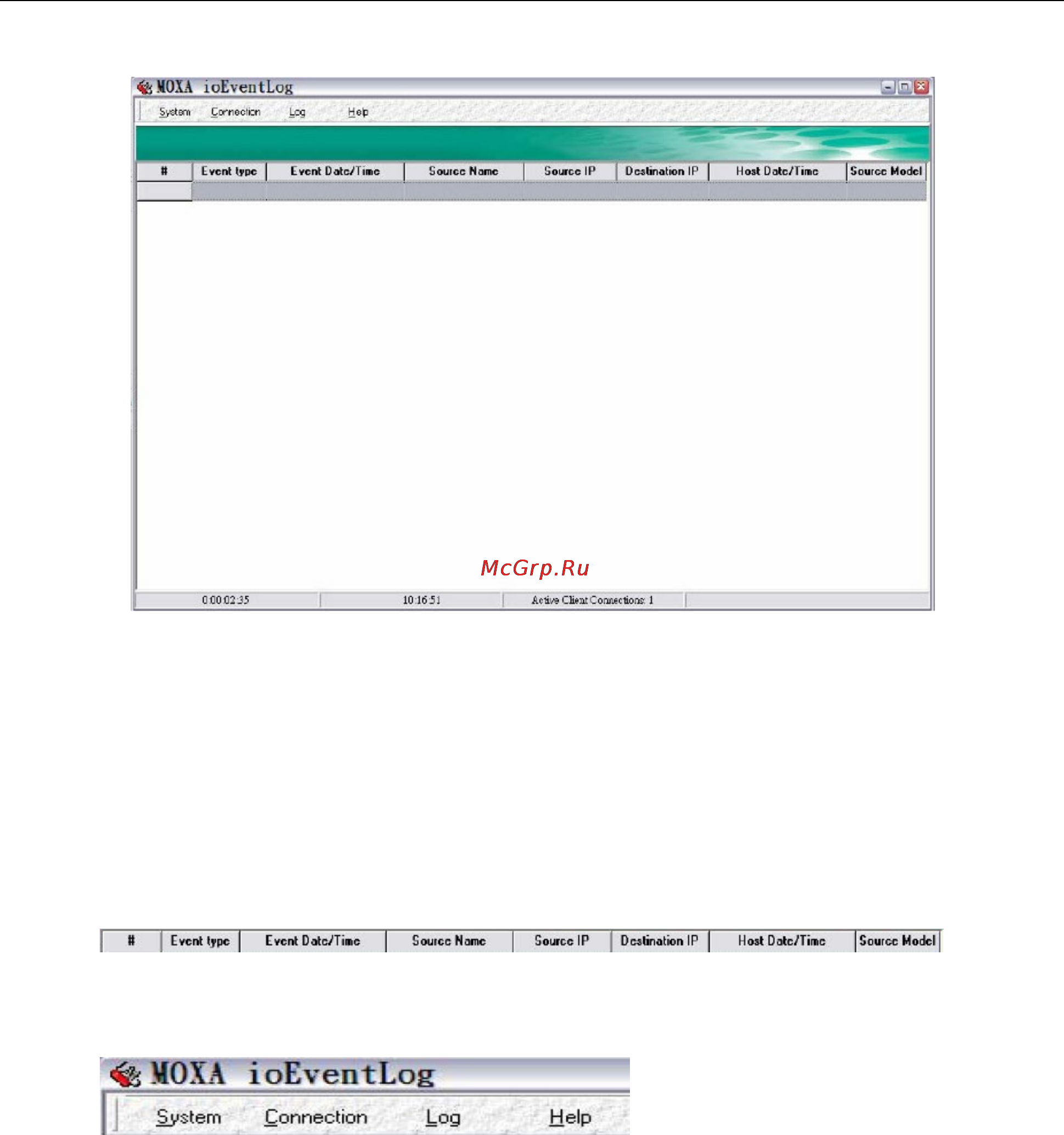

3. The main window will appear as shown below.
Basic Functions
ioEventLog is installed along with ioAdmin. It is designed to help you keep a record of ioLogik status events over
the network. The log is stored on the Windows PC. You will need to set up your ioLogik to send status events
to the PC’s IP address. The following events are monitored:
• cold start
• warm start
For each event, the following information is provided. The log can be sorted by any of seven fields:
Main Menu
System
Select Settings from the System menu to configure ioEventLog.
The Alarm Listen Port is the TCP port number that will be monitored for status events. You can modify this
setting as necessary to receive signals through a firewall. It must match the settings for the ioLogik that is
being monitored. The Log Directory is where the log files will be stored. The default directory is C:\Program
Files\Moxa\ioEventLog\log. A separate log file is created for each day, with file names assigned automatically.
