ioLogik E4200 Click&Go Introduction
5-15
CGI Command
Not only do the ioLogik products support CGI commands, they also allow the Click&Go logic to interact with
proper IF conditions and send out CGI commands to IP Video devices such as the Moxa V351 video server or
VPort 25 IP camera. Support for user-defined CGI commands in the Click&Go THEN/ELSE action turns the
ioLogik product into the expansion I/O controller for these video devices. For example, setting a trigger to focus
and taking a snapshot when there is an intrusion. Select the THEN/ELSE actions for the CGI command and click
on the property button to enter the CGI Command Settings window.
Short Message Service (SMS)

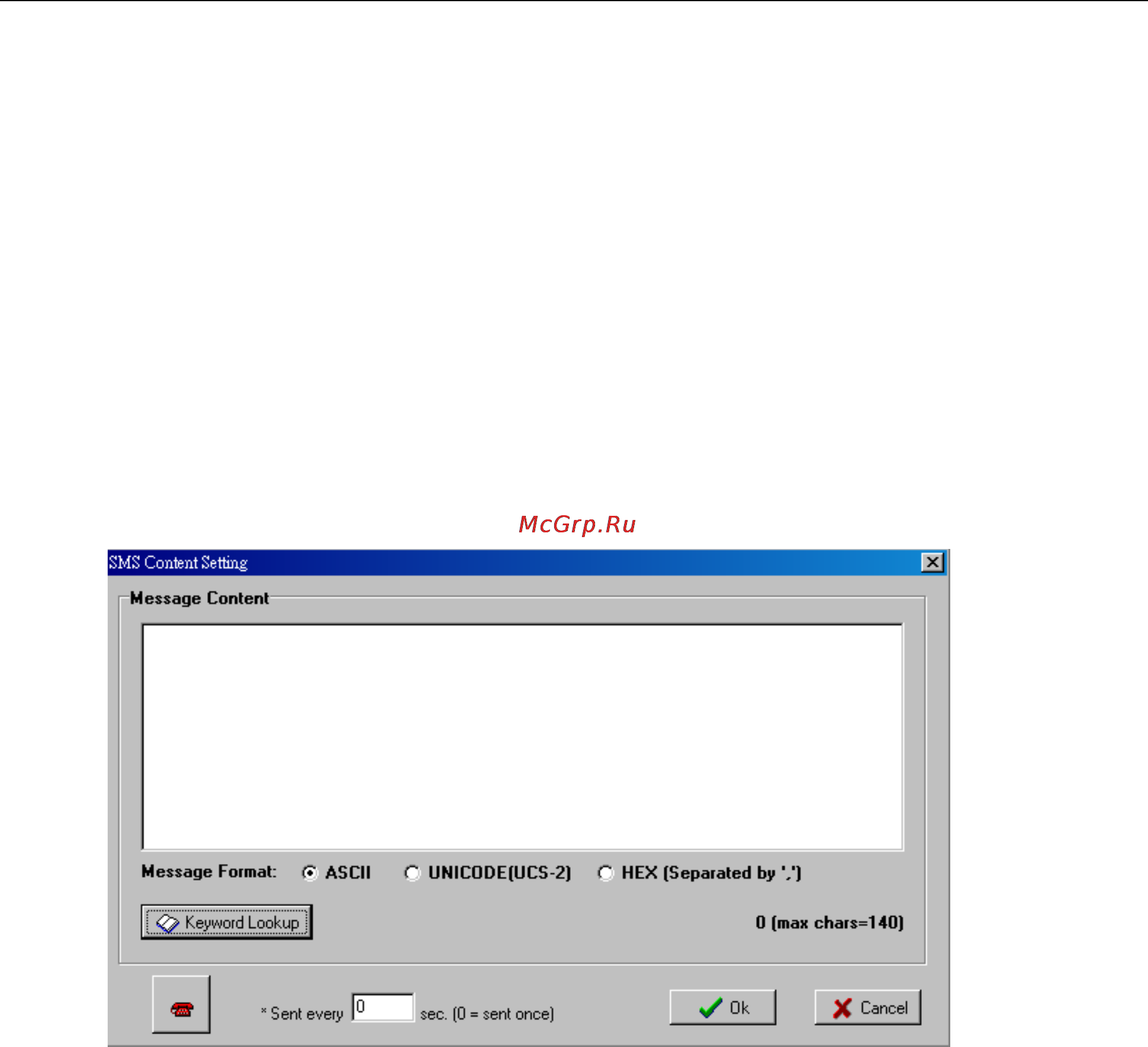

The SMS function sends a customizable SMS to up to 5 mobile phones. Select the THEN/ELSE action to Short
Message Service and click on the property button to enter the Phone setting window. After entering the subject
of an SMS, enter the message in the Message Content area. Dynamic fields such as time, date, IP address, and
I/O status can be inserted in your message by clicking Keyword Lookup
