ioLogik E4200 Click&Go Introduction

5-8

NOTE

When using an FQDN (Fully Qualified Domain Name) address, such as ms.moxa.com, users must specify the

DNS settings in the ioLogik.

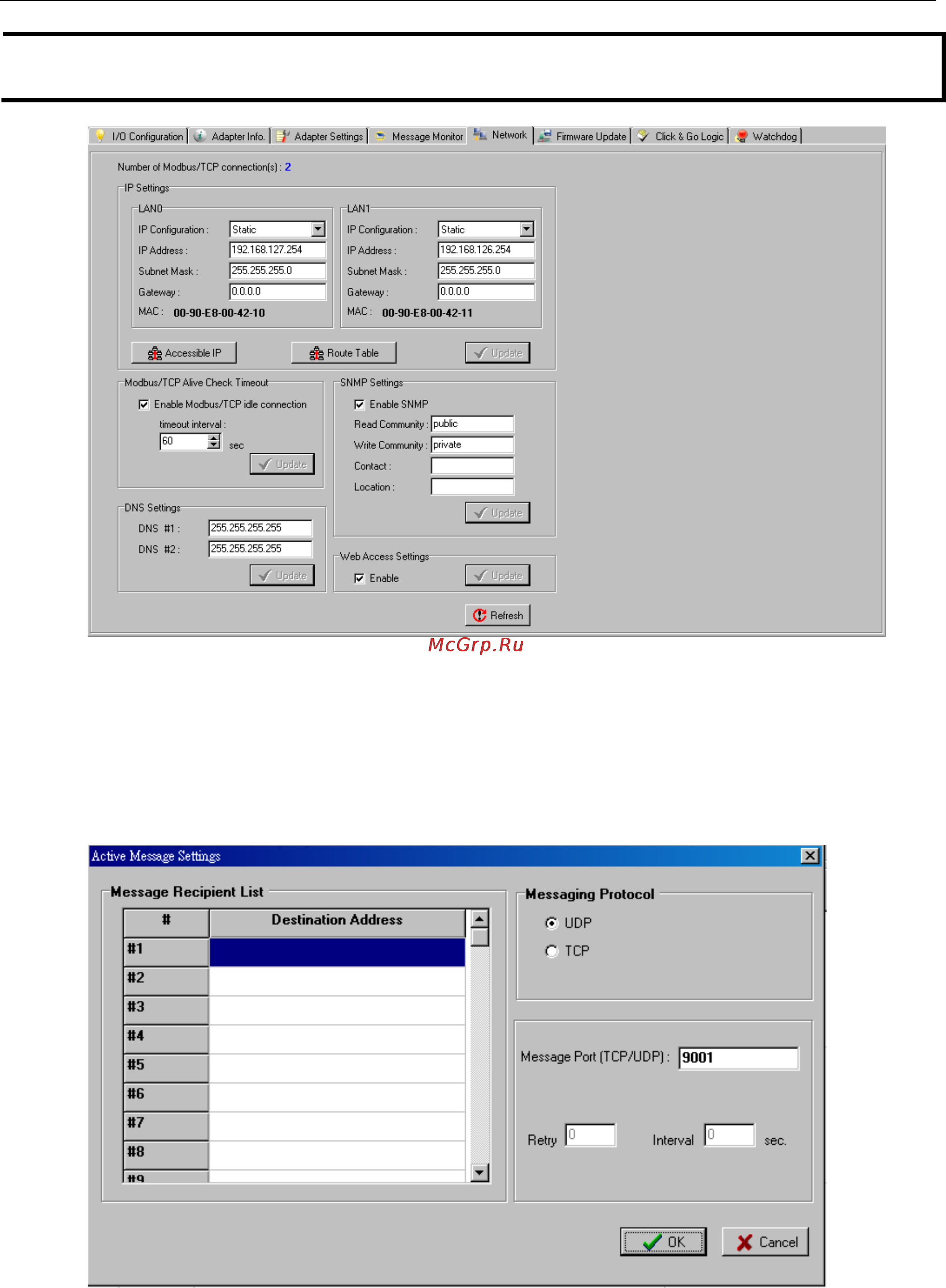

Active Message Settings

Active Message Settings is used to configure one or more destination IP addresses of the Message Servers

that receive the event messages generated by the Click&Go logic. Message protocol (TCP or UDP) and the

message socket port also need to be configured here. The active message defined in the Click&Go logic will be

sent to all addresses listed in the Message Recipient List.
