ioLogik E4200 Utilities
3-10

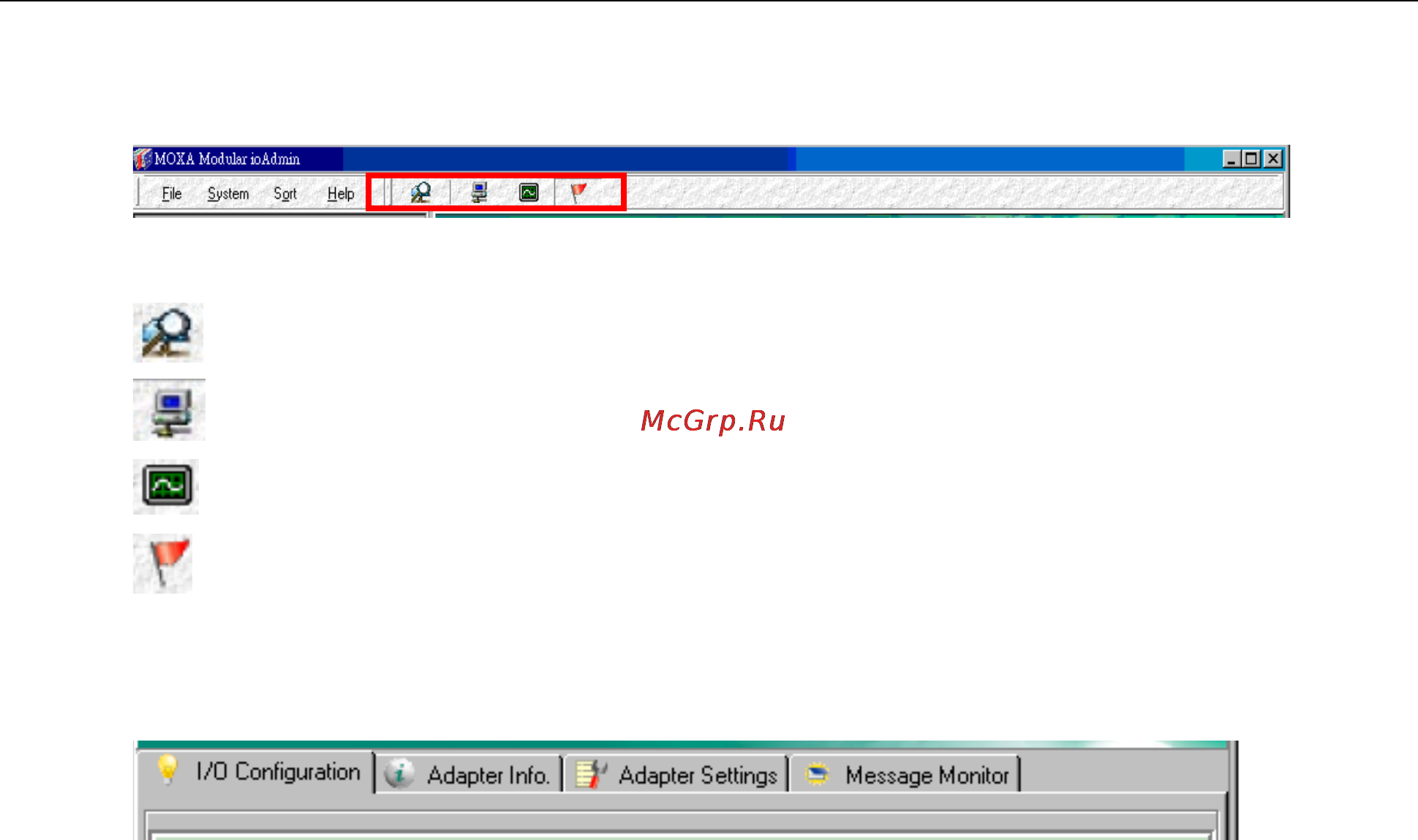

Quick Links
Quick links are provided to search for I/O servers on the network and sort the server list.
Search network for I/O servers
Sort by connection
Sort by type
Sort by location
Main Window (General)
I/O Configuration Tab (General)
If you are not logged in, the I/O Configuration tab shows the picture of the ioLogik E4200 without I/O modules.
This is the default tab when you first open Modular ioAdmin.
Adaptor Info Tab
Adaptor information, such as firmware revision, is displayed in the Adaptor Info tab.
Adaptor Settings Tab (General)
Use the Adaptor Settings tab to log in as administrator, which is required to gain access to the ioLogik E4200
configuration options. If an administrator password has not been configured, simply click on Login and leave
the Password field blank. More details are provided later in this chapter.
Message Monitor Tab
The Message Monitor tab will display any TCP/UDP I/O messages received from the ioLogik E4200. When you
install the ioLogik E4200 for the first time, the Active I/O messaging ruleset will not have been defined yet, so
there will be no messages in the Message Monitor Tab. Refer to Chapter 5 for information on how to program
the ioLogik E4200’s Active I/O messaging system.
Once the active I/O messaging system has been configured and activated, TCP/UDP messages sent from the
ioLogik E4200 will be viewable in the Message Monitor tab.
Messages can be displayed in ASCII, UNICODE, or HEX. To display messages in HEX, checkmark Toggle HEX.
To display messages in UNICODE, checkmark UNICODE (UCS-2).
