Moxa NA-4020 [72/94] Port pinout diagrams
![Moxa NA-4010 [72/94] Port pinout diagrams](/views2/1201169/page72/bg48.png)
A
A. Pinouts and Cable Wiring

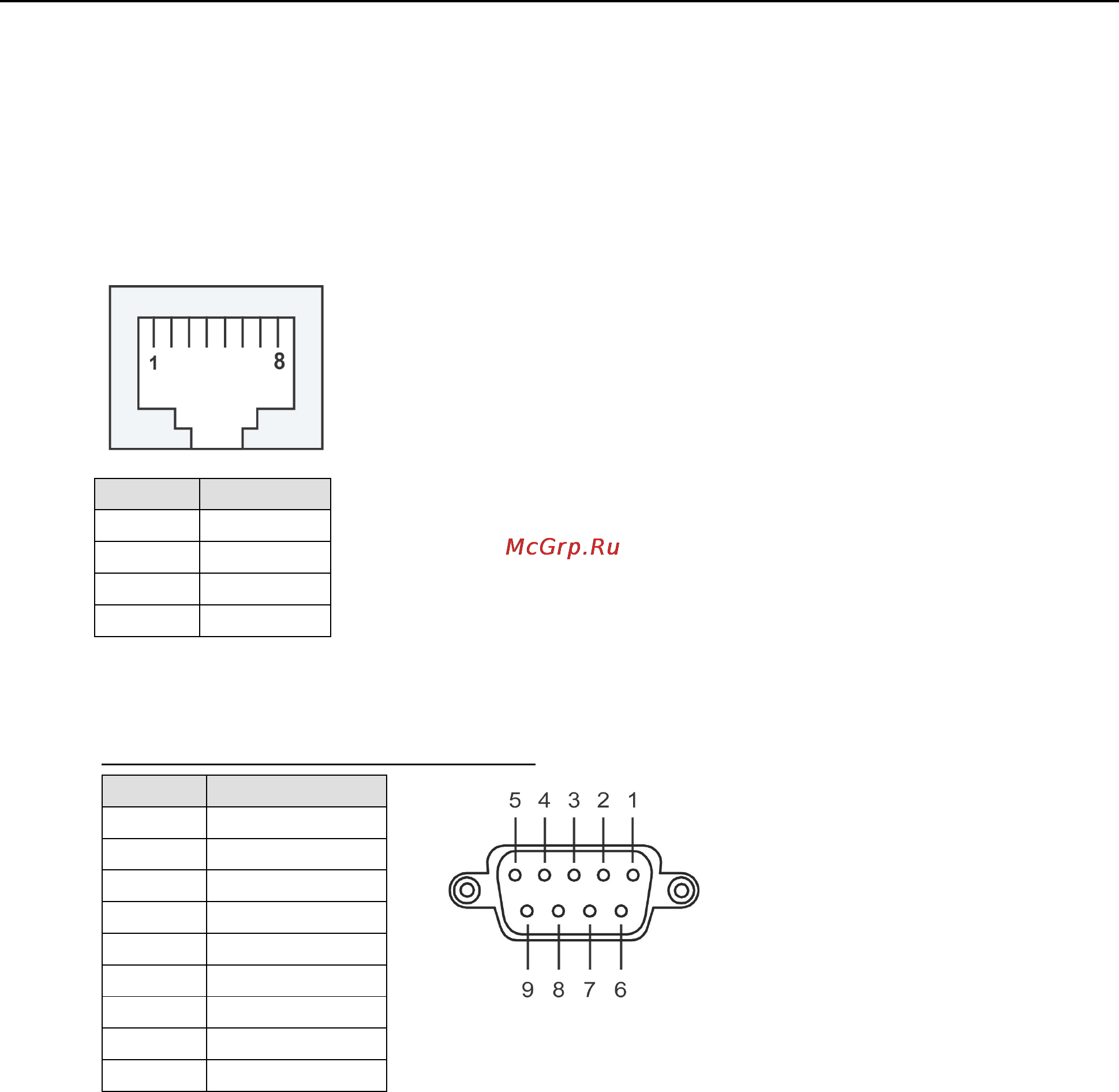

Port Pinout Diagrams
Ethernet Port Pinouts
Pin Signal
1 Tx+
2 Tx-
3 Rx+
6 Rx-
Serial Port Pinouts
RS-232 Network Adaptor Pin Assignment.
Pin RS-232 Signal
1 DCD (in)
2 RxD (in)
3 TxD (out)
4 DTR (out)
5 GND
6 DSR (in)
7 RTS (out)
8 CTS (in)
9 ---
