ioLogik E4200 Utilities
3-5
ATTENTION
If this is

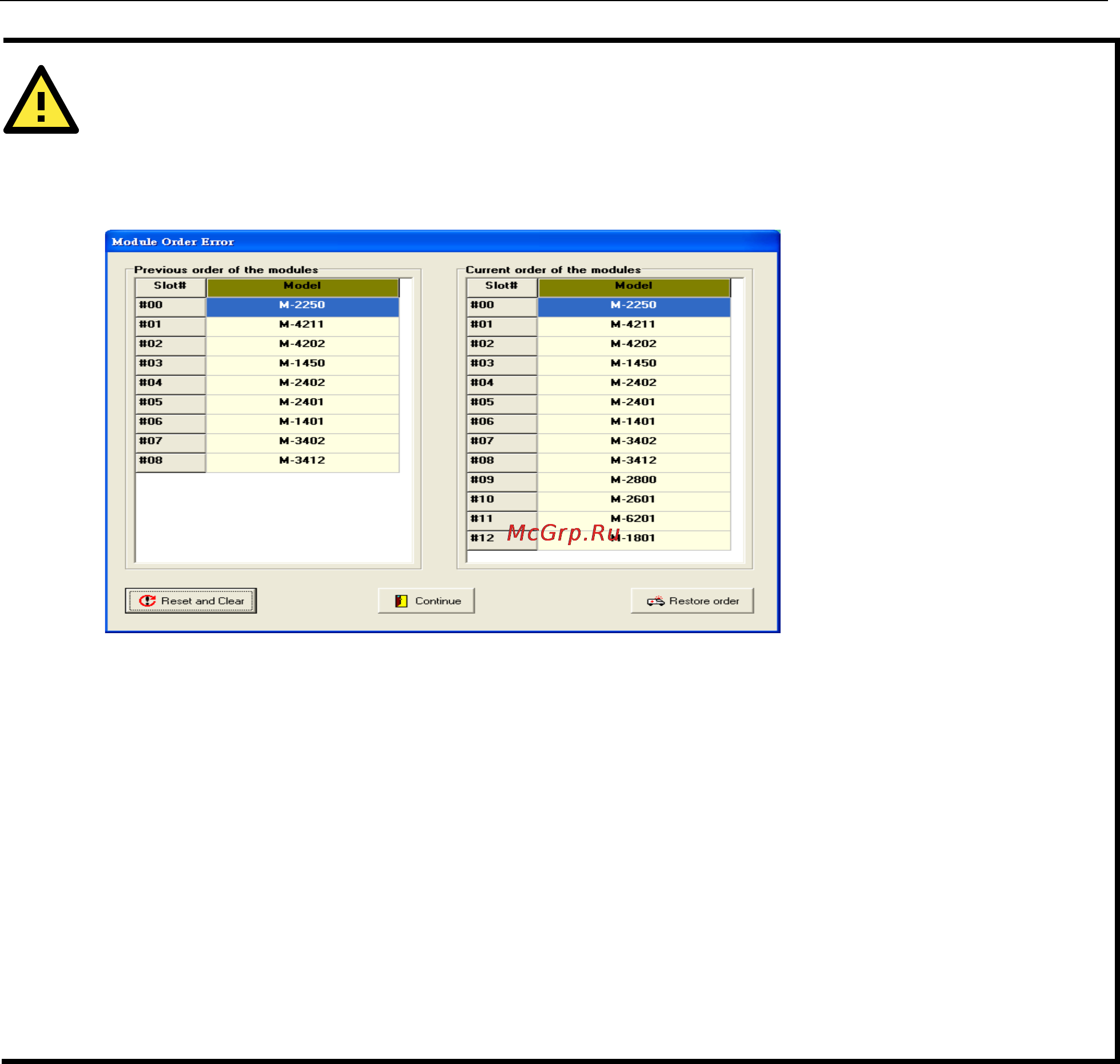

not a first-time installation, the Module Order Error
window might appear. If the initial installation
is successful, the ioLogik E4200 will memorize all settings and current module combinations. If the module
combination changes, the ioLogik E4200 will d
etect an unmatched module combination event and show a
warning window as pictured below.
Three options are available for handling unmatched module combination events:
Reset and Clear:
If you know the I/O modules combination has changed, then choose this option. This action resets all module
configurations, clears all Click&Go logic, and restarts the system.
Continue:
If you have just added new I/O modules onto the end of
the existing I/O system, then choose this option. This
action does not clear Click&Go
settings, it only stops it; you can still re-start it, but at your own risk. All
configurations of previously installed modules are preserved, and newly added modules will be applied with
default settings.
Restore order
(recover the previous module combination)
If you
don’t know why the I/O modules combination has changed, then choose this option.
You need to shut
down the system’s power, and then reset the module combination to the previous settings individually.
