ioLogik E4200 Click&Go Introduction
5-13
Timer
The Timer function can be used to control the time settings of a logic rule. Actions such as START, STOP, and
RESTART can be configured here. Select the IF condition to Timer and click on the property button to enter the
Internal Register Settings window. In the above figure, the Used in: column indicates that this Timer is also
used in Rule-0, which helps the user identify the relationship between the rules. The Set Timer button defines
the default value for the Timer.
NOTE
The
STOP operator stops the timer and returns to 0; the RESTART operator clears and restarts the timer.
ATTENTION
STOP
or RESTART
should always be used to reset or restart the timer. If you do not use these operators, the
Timer function will only be triggered once.

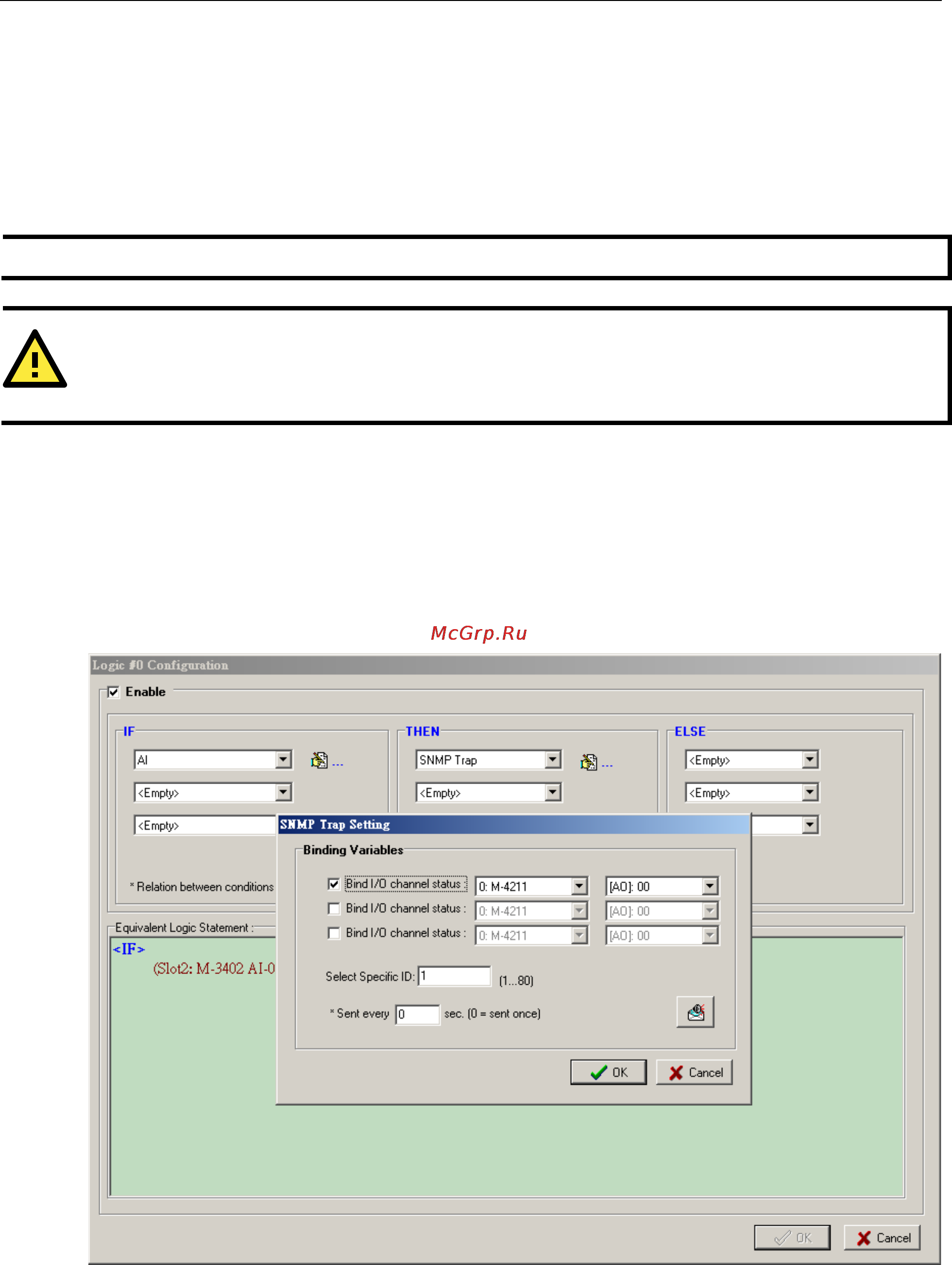

SNMP Trap
The SNMP Trap function sends an SNMP trap to one or more IP destinations. You can select a trap number
between 1 and 80. (You may need to consult with your network administrator to determine how trap numbers
are used and defined on your network.) Select the THEN/ELSE action for the SNMP Trap and click on the
property button to enter the SNMP Trap Settings window. You can also bind the status of up to three I/O
channels within each trap. Click the Set SNMP button to specify up to 10 recipients for the SNMP trap.
