ioLogik E4200 Using the Built-in Web Console
4-8

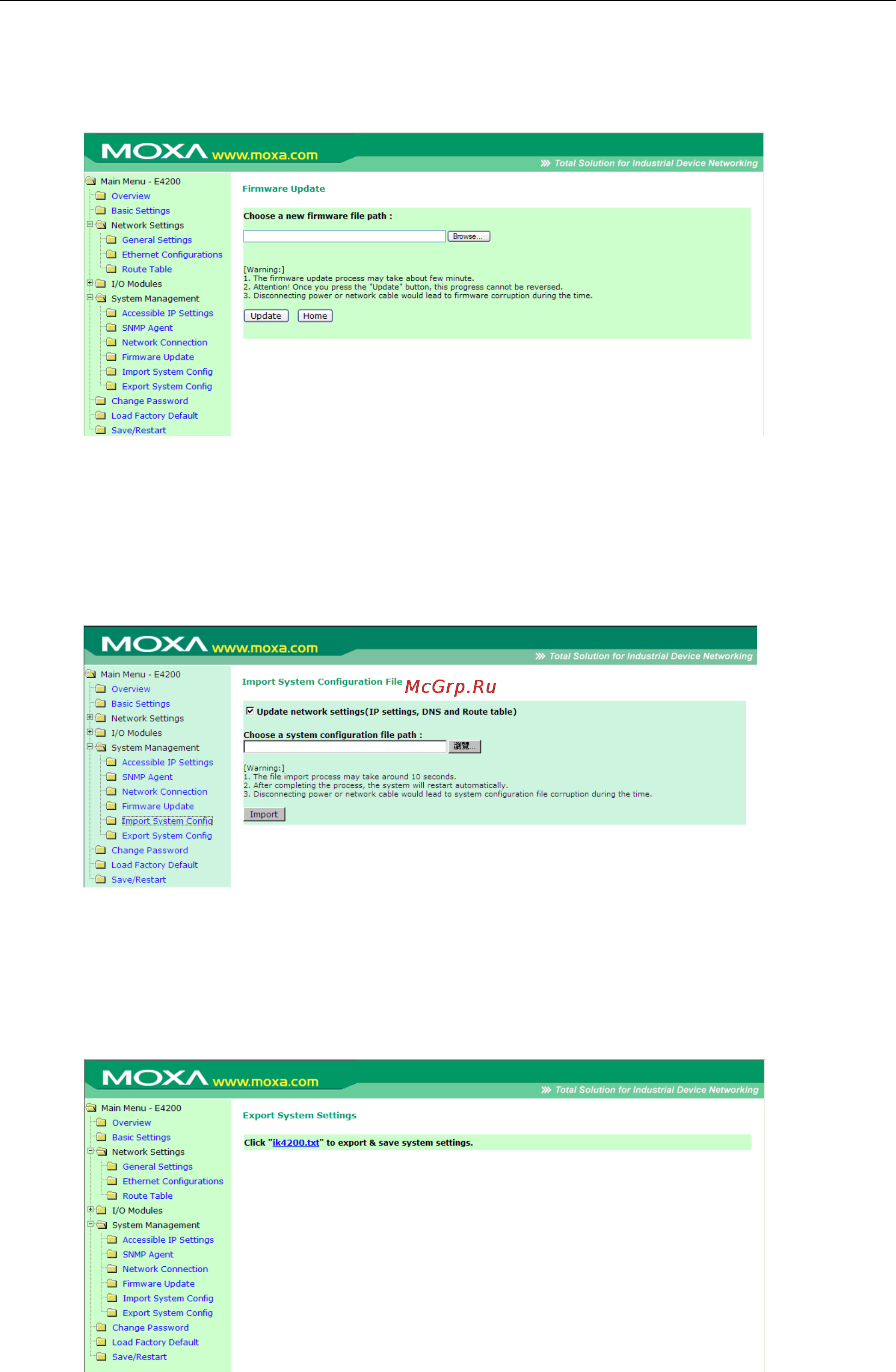

Firmware Update
On the Firmware Update page, you can load new or updated firmware to the ioLogik.
Import System Config
On the Import System Config page, you can import a configuration to the ioLogik system. The configuration file
can be generated by ioAdmin or through the web console. This function can be used to duplicate settings
between ioLogik systems. You will be prompted for the location of the configuration file (i.e., “ik4200.txt”) and
if you wish to overwrite network settings.
Export System Config
On the Export System Config page, you can click the file name “ik4200.txt” to save the ioLogik’s configuration
to a file for backup or for importing into another ioLogik system. Note that the system will specify the filename
as ik4200.txt.
