ioLogik E4200 Using the Built-in Web Console
4-2

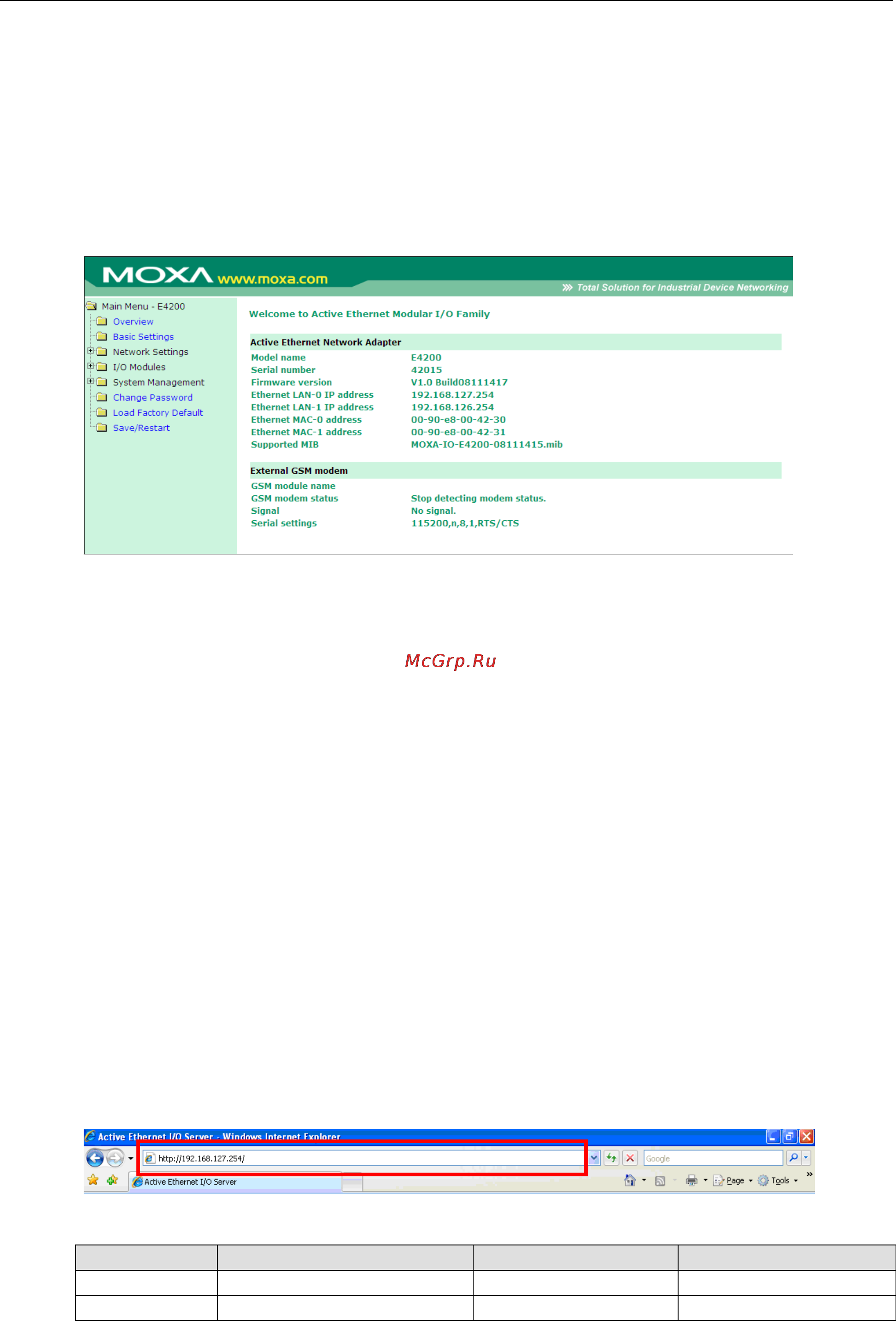

Overview for the ioLogik E4200
The ioLogik Active Ethernet modular I/O web console is a browser-based configuration utility built in to the
ioLogik E4200. When the ioLogik Active Ethernet modular I/O is connected to your network, you may enter the
I/O’s IP address in your web browser to access the web console. Note that although most configuration options
are available in the web console, some settings are only available through Modular ioAdmin. Furthermore, the
web console can be disabled under Web Access Settings in Modular ioAdmin. If you are unable to access the
web console, check the Web Access Settings in Modular ioAdmin.
The left navigation panel contains an expandable tree menu for navigating among the various settings and
categories. When you click on a menu item in the navigation panel, the main window will display the
corresponding options for that item. Configuration changes can then be made in the main window. For example,
if you click on Basic Settings in the navigation panel, the main window will show a page of basic settings that
you can configure.
You must click on the Submit button after making configuration changes. The Submit button will be located
at the bottom of every page that has configurable settings. If you navigate to another page without clicking the
Submit button, your changes will not be retained. Submitted changes will not take effect until they are
saved and the ioLogik E4200 is restarted!
You may save and restart the ioLogik in one step by clicking on the Save/Restart button after you submit a
change. If you need to make several changes before restarting, you may save your changes without restarting
by selecting Save in the navigation panel. If you restart the ioLogik E4200 without saving your configuration,
the ioLogik E4200 will discard all submitted changes.
Entering the Web Console
Modular ioAdmin utility is the main configuration interface for the ioLogik Active Ethernet modular I/O.
However, for the ioLogik E4200 Active Ethernet network adaptor’s web console, information for basic system
status is available.
Enter the IP address of the Active Ethernet Modular I/O in Internet Explorer.
The default IPs are listed below:
LAN Port Default IP Address Default Netmask Default Gateway
LAN 0 192.168.127.254 255.255.255.0 None
LAN 1 192.168.126.254 255.255.255.0 None
