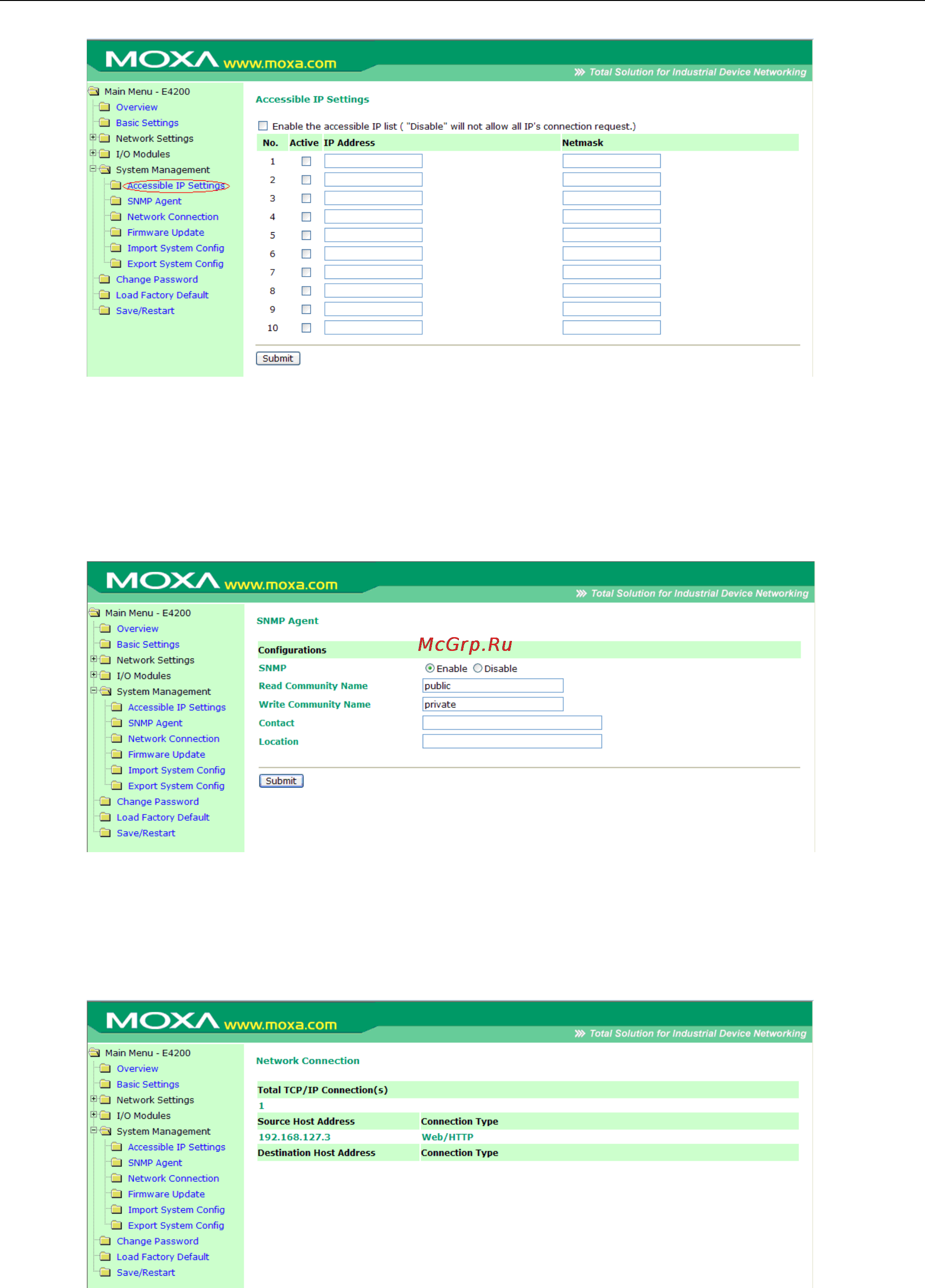

ioLogik E4200 Using the Built-in Web Console
4-7
SNMP Agent
On the SNMP Agent page, you can enable SNMP and set the read and write community strings. The ioLogik
E4200 supports SNMPv2 (Simple Network Management Protocol) to allow monitoring of network and I/O
devices with SNMP Network Management software. It is useful in building automation and telecom applications.
Network Connection
On the Network Connection page, you can view the TCP connections from other hosts, which can assist you
with the management of your devices.
