ioLogik E4200 Initial Setup
2-8
3. Use Modular ioAdmin or the web console to detect the ioLogik E4200. Once the ioLogik E4200 has been
detected, modify the settings as needed for your network environment, and then restart the I/O.

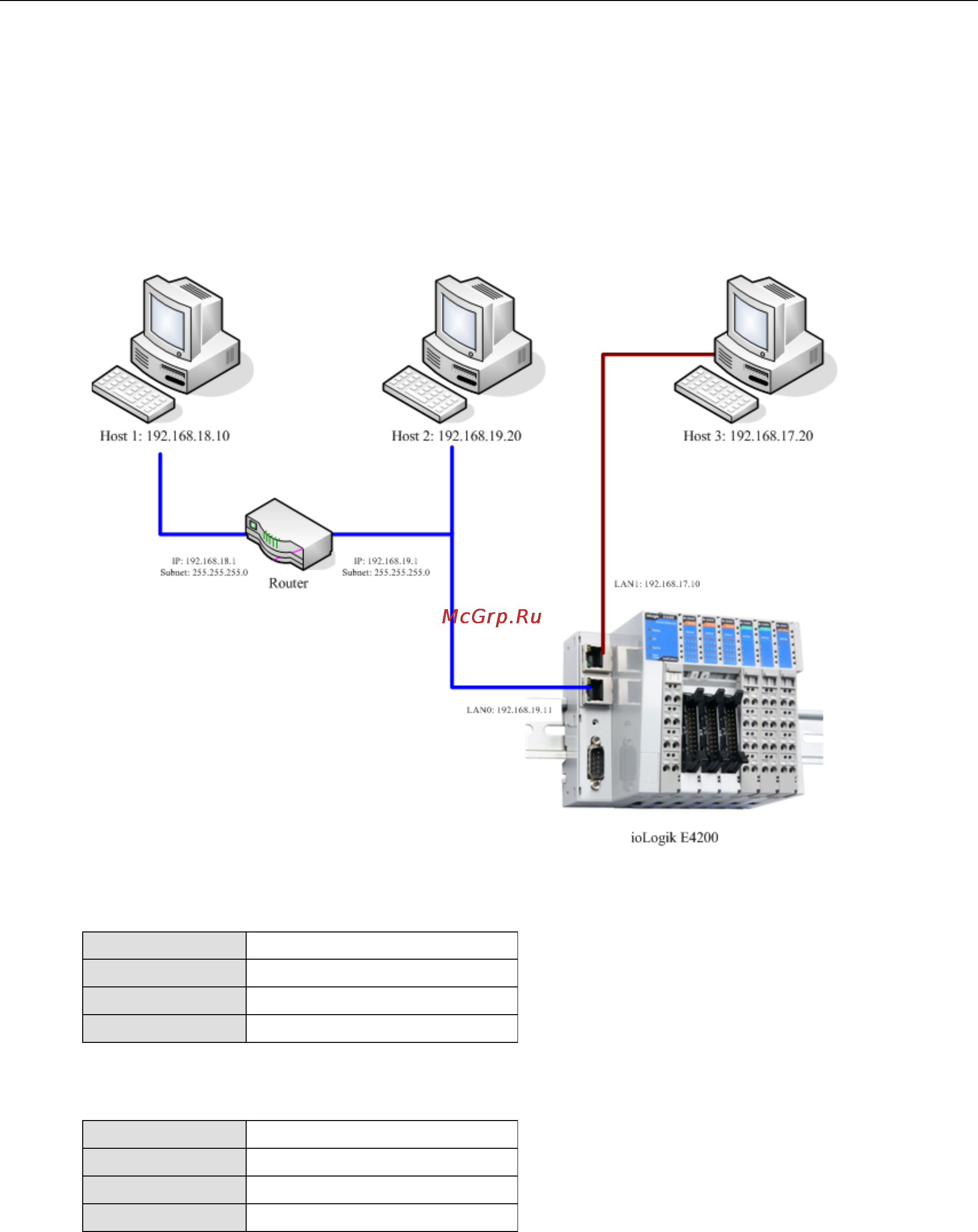

Configuring Your Network Architecture
After connecting the ioLogik E4200, you will need to configure the network. Refer to the following figure for an
example.
To manage the ioLogik E4200 from Host 1, use the parameters in the following table to add a routing rule to the
ioLogik E4200’s routing table:
Destination 192.168.18.10
Network-Mask 255.255.255.255
Gateway 192.168.19.1
Interface LAN-0
To allow all hosts on subnet 192.168.18.x to connect to this ioLogik E4200, use the parameters in the following
table to add a routing rule to the ioLogik E4200’s routing table:
Destination 192.168.18.0
Network-Mask 255.255.255.0
Gateway 192.168.19.1
Interface LAN-0
