ioLogik E4200 Utilities
3-3
Getting Started
Installing Modular ioAdmin Utility
Modular ioAdmin can be Moxa’s website.
1. Installing Modular ioAdmin from website:
a. First click on the following link to access the website’s search utility:
http://www.moxa.com/support/search.aspx?type=soft
b. When the web page opens, enter the model name of your product in the search box.
c. Click the model name and navigate to the product page, and then click on Modular ioAdmin, located in
the box titled Software.
d. Download and then unzip the file. Run SETUP.EXE from that location.
The installation program will guide you through the installation process and install the software.

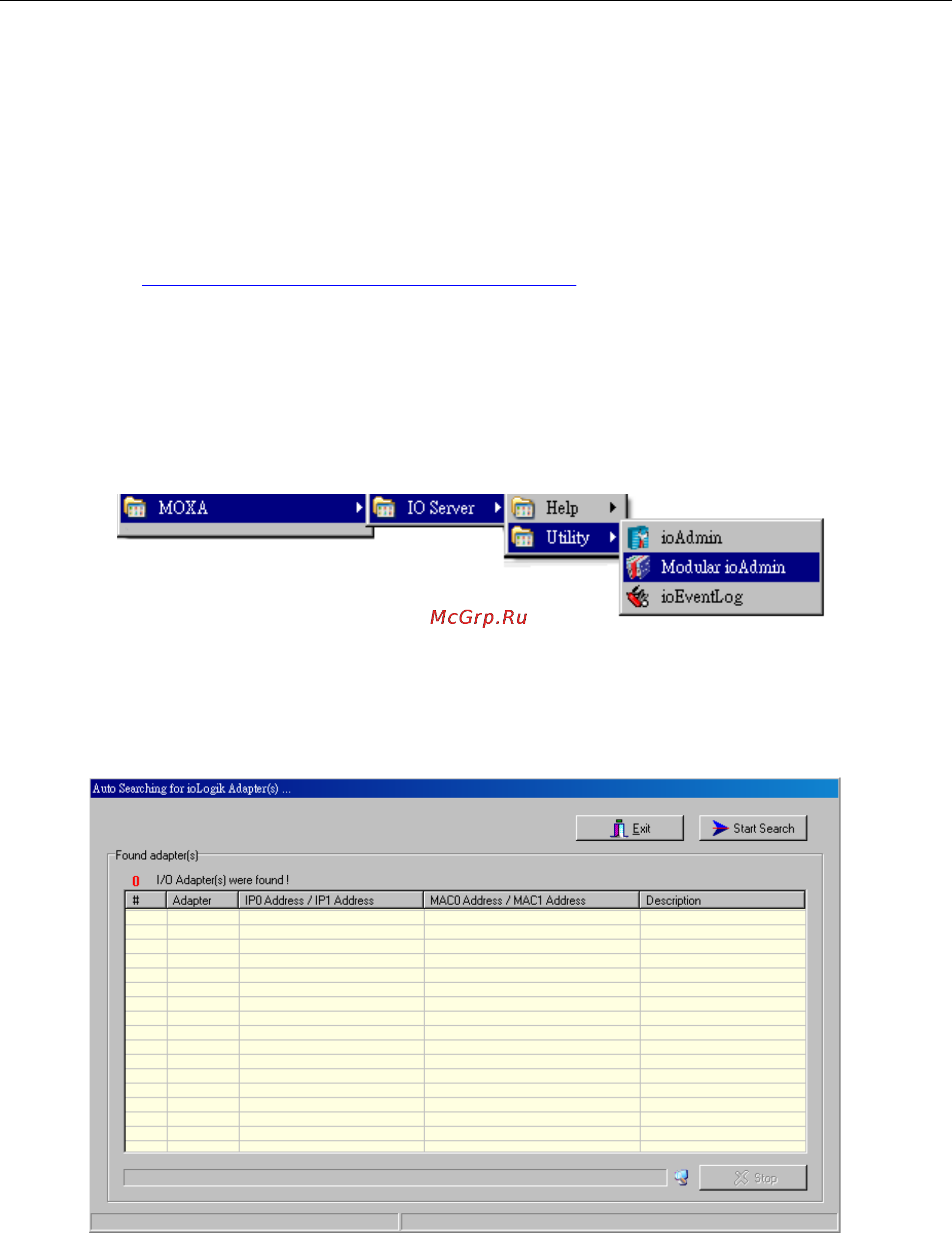

2. Open Modular ioAdmin: After installation is finished, run Modular ioAdmin from the Windows Start menu:
Start
Program Files
MOXA
IO Server
Utility
Modular ioAdmin.
Connecting Your Active Modular I/O System
After you open Modular ioAdmin, the auto search window will pop up and begin searching for the I/O system.
Click Start Search to find the I/O system automatically, or click Exit and then add the I/O system manually.
