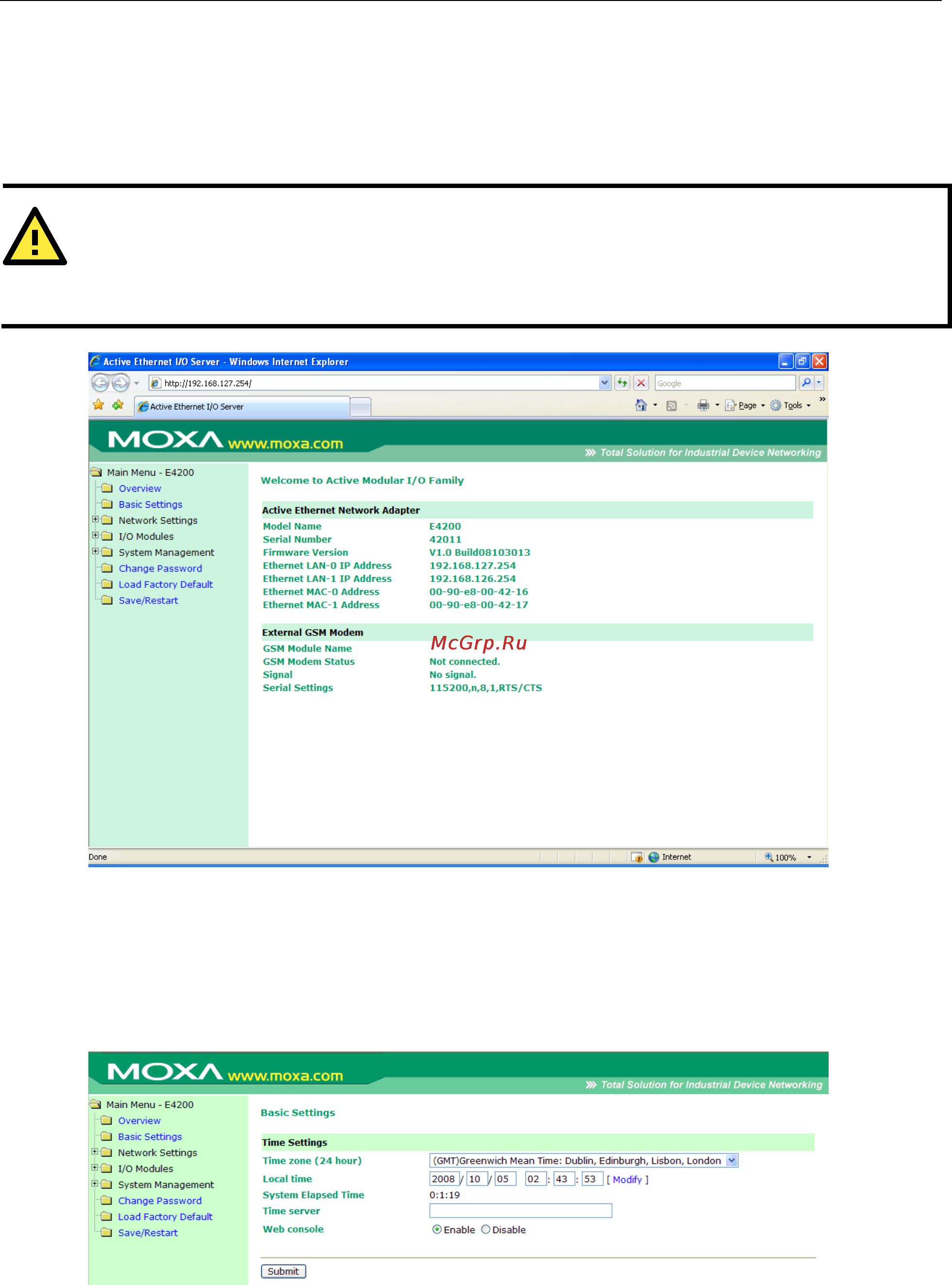

ioLogik E4200 Using the Built-in Web Console
4-3
Overview
When you log in to the web console with the ioLogik E4200 IP address, you will see the welcome page. The page
includes basic information about the ioLogik E4200, such as network adaptor model name, serial number,
firmware version, and IP and MAC addresses. It also shows you the information of the GSM modem and status.
ATTENTION
The web console
only supports Moxa OnCell 2111 and 2151 GPRS modem. In addition, auto detect
ion is only
available for the
GSM modem when using SMS in the Click&Go ruleset. The default
serial baudrate is 115200
bps, and parameters are N, 8, 1
.
Basic Settings
On the Basic Settings page, you may set the ioLogik E4200’s system time or provide the IP address of a time
server for time synchronization.
