ioLogik E4200 Utilities
3-6

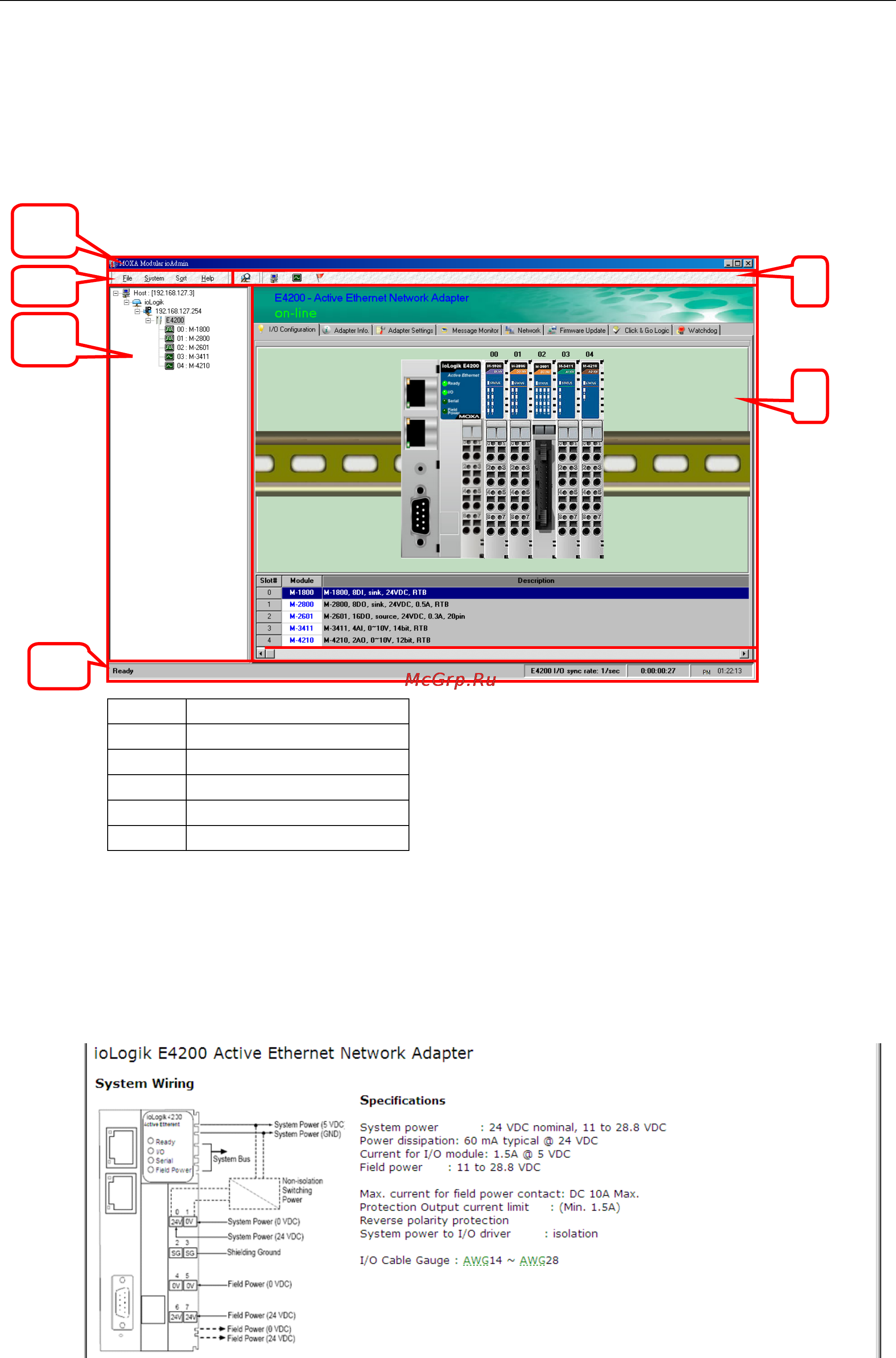

Modular ioAdmin Main Screen
This is Modular ioAdmin’s main screen. The main window defaults to the I/O Configuration tab, which
displays a figure of the ioLogik E4200 and the status of every I/O channel below it. The other tabs in the main
window take you to device and network settings, and further functions are available when you log on as an
administrator. Note that configuration options are not available until you log on as an administrator.
1 Modular ioAdmin Title
2 Menu Bar
3 Navigation Panel
4 Status Bar
5 Quick Link
6 Main Window
Wiring Guide
Modular ioAdmin provides a wiring guide to the ioLogik Active Ethernet modular I/O. You may access the wiring
guide by right-clicking the figure of the ioLogik E4200 or I/O Module in the I/O Configuration tab. Select
Wiring Guide in the submenu to open a help file showing the wiring information and electrical characteristics
of the ioLogik E4200.
1
2
3
4
5
6
