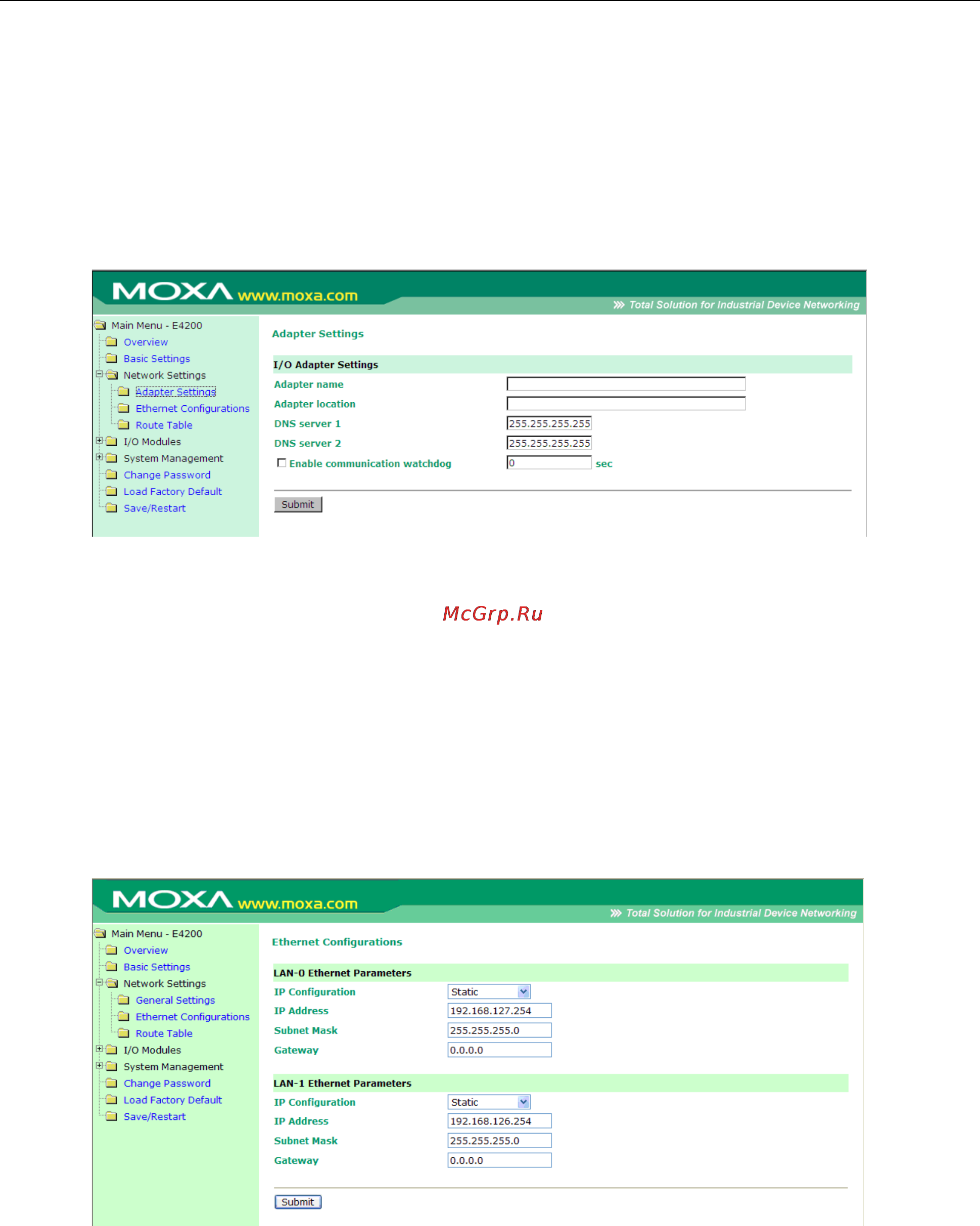

ioLogik E4200 Using the Built-in Web Console
4-4
Network Settings
Adaptor Settings
On the Adaptor Settings page, you may assign an adaptor name and location to assist you in differentiating
between different network adaptors. You may also enable the Host Communication Watchdog and define the
timeout value.
The Host Connection Watchdog activates Safe Status when the ioLogik E4200 loses its network connection for
the specified amount of time. By default, the Watchdog is disabled. When the Watchdog is enabled and a
timeout occurs, the ioLogik E4200 will enter Safe Status. You may use Modular ioAdmin to configure how each
output channel responds under that channel’s Safe Status settings. To enable the Watchdog, check off Enable
connection watchdog, set the timeout value, and restart the I/O system. With Watchdog enabled, the
ioLogik E4200 will enter Safe Status after a disruption in communication that exceeds the specified time.
Ethernet Configuration
On the Ethernet Configuration page, you may set up a static or dynamic IP address for the ioLogik I/O system,
as well as the subnet mask and gateway address.
