![Moxa ioLogik E4200 [80/94] I o image map addressing](/views2/1201169/page80/bg50.png)
ioLogik E4200 Using Modbus/TCP
B-8
435002 0x88B9 1 word Internal Register 57 Value (Working)
435003 0x88BA 1 word Internal Register 58 Value (Working)
435004 0x88BB 1 word Internal Register 59 Value (Working)
435005 0x88BC 1 word Internal Register 60 Value (Working)
435006 0x88BD 1 word Internal Register 61 Value (Working)
435007 0x88BE 1 word Internal Register 62 Value (Working)
435008 0x88BF 1 word Internal Register 63 Value (Working)
435009 0x88C0 1 word Internal Register 64 Value (Working)
435010 0x88C1 1 word Internal Register 65 Value (Working)
435011 0x88C2 1 word Internal Register 66 Value (Working)
435012 0x88C3 1 word Internal Register 67 Value (Working)
435013 0x88C4 1 word Internal Register 68 Value (Working)
435014 0x88C5 1 word Internal Register 69 Value (Working)
435015 0x88C6 1 word Internal Register 70 Value (Working)
435016 0x88C7 1 word Internal Register 71 Value (Working)
435017 0x88C8 1 word Internal Register 72 Value (Working)
435018 0x88C9 1 word Internal Register 73 Value (Working)
435019 0x88CA 1 word Internal Register 74 Value (Working)
435020 0x88CB 1 word Internal Register 75 Value (Working)
435021 0x88CC 1 word Internal Register 76 Value (Working)
435022 0x88CD 1 word Internal Register 77 Value (Working)
435023 0x88CE 1 word Internal Register 78 Value (Working)
435024 0x88CF 1 word Internal Register 79 Value (Working)
I/O Image Map Addressing
Modular ioAdmin allocates I/O channels into four groups.
1. DI: Modbus input coil map (read-only)
2. DO: Modbus coil map (read/write)
3. AI: Modbus input register map (read-only)
4. AO: Modbus holding register map (read/write)

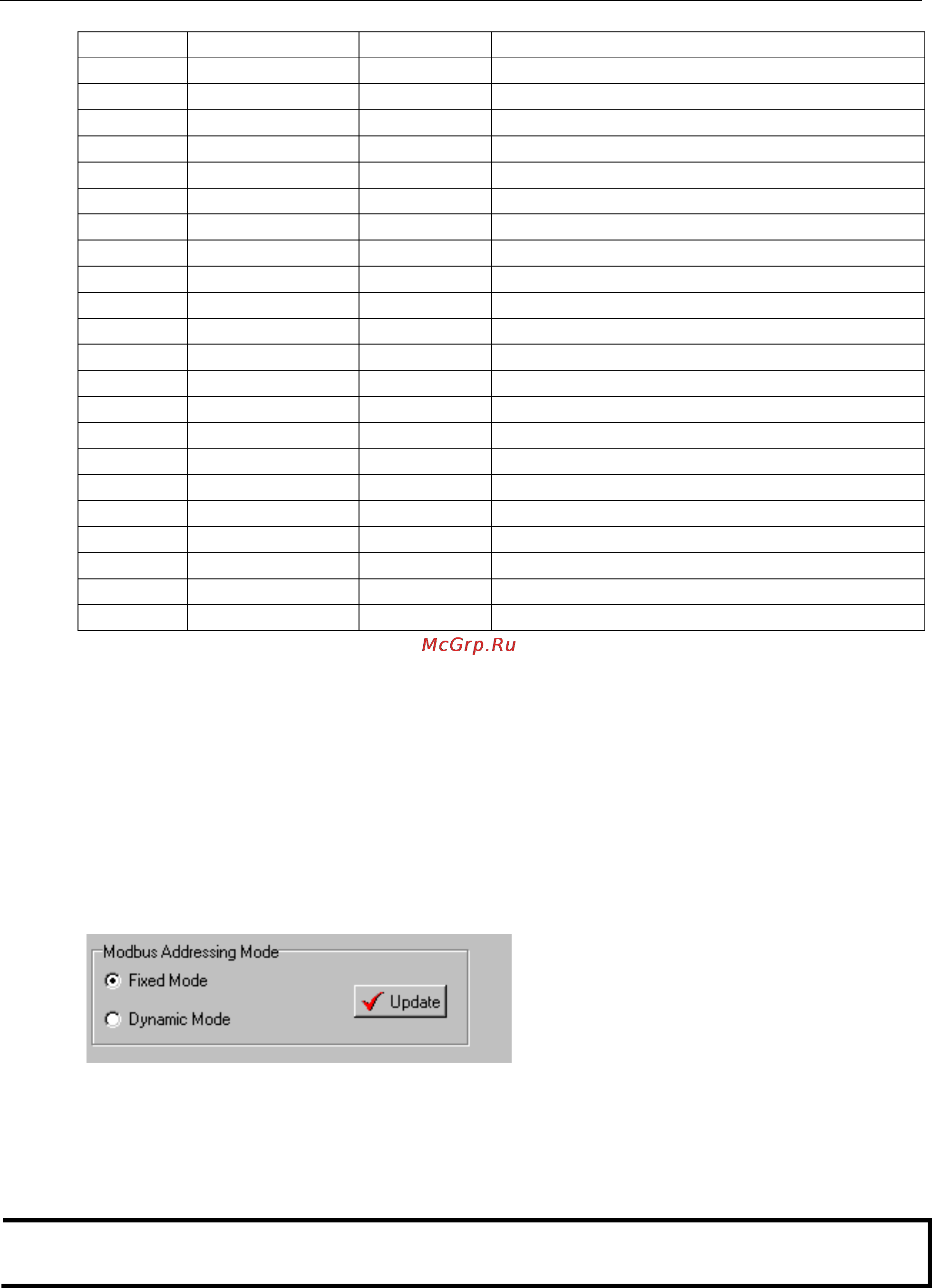

There are two ways to arrange the I/O image Map, which is set on the Adaptor Settings Tab.
1. Fixed mode (Default): Every slot has its own memory bank. This is easy way to understand, but is less
efficient due to the fact that a larger memory size is required.
2. Dynamic mode: Modular ioAdmin will try to group the same type of input/output channels together to
reduce memory size and increase efficiency.
NOTE
You can easily find the Modbus address with the Modular ioAdmin utility. After clicking the I/O Configuration
tab, select the I/O modules, and then click the
Modbus Address tab.
Note that you can right click the selected ioLogik E4200 in the Modular ioAdmin utility to export the Modbus
address table to a CSV (Microsoft Excel) file.
