Mounting Screw Holes

When installing the mainboard, rst install the necessary mounting stands required for

an mainboard on the mounting plate in your computer case. If there is an I/O back plate

that came with the computer case, please replace it with the I/O backplate that came

with the mainboard package. The I/O backplate should snap easily into the computer

case without the need for any screws. Align the mounting plate’s mounting stands with

the screw holes on the mainboard and secure the mainboard with the screws provided

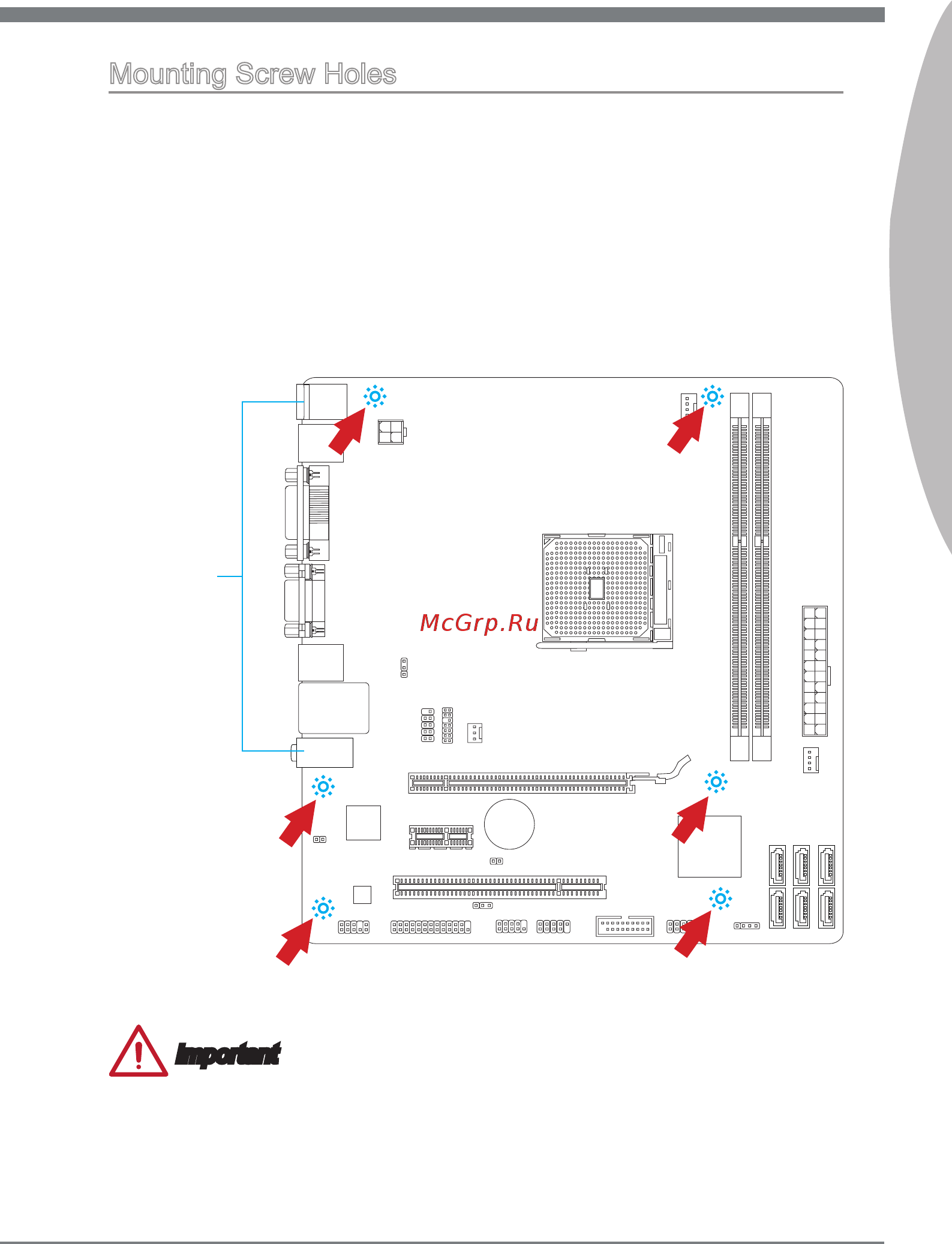

with your computer case. The locations of the screw holes on the mainboard are shown

below. For more information, please refer to the manual that came with the computer

case.

Important

•

Install the mainboard on a at surface free from unnecessary debris.

•

To prevent damage to the mainboard, any contact between the mainboard circuitry

and the computer case, except for the mounting stands, is prohibited.

•

Please make sure there are no loose metal components on the mainboard or within

the computer case that may cause a short circuit of the mainboard.

The I/O ports should be facing toward

the rear of the computer case. They

should line up with the holes on the

I/O backplate.
