Asus rs740-e7/rs24-eg [100/212] Chipsetconfiguration

5-14

Chapter 5: BIOS setup

5.4.3 ChipsetConguration

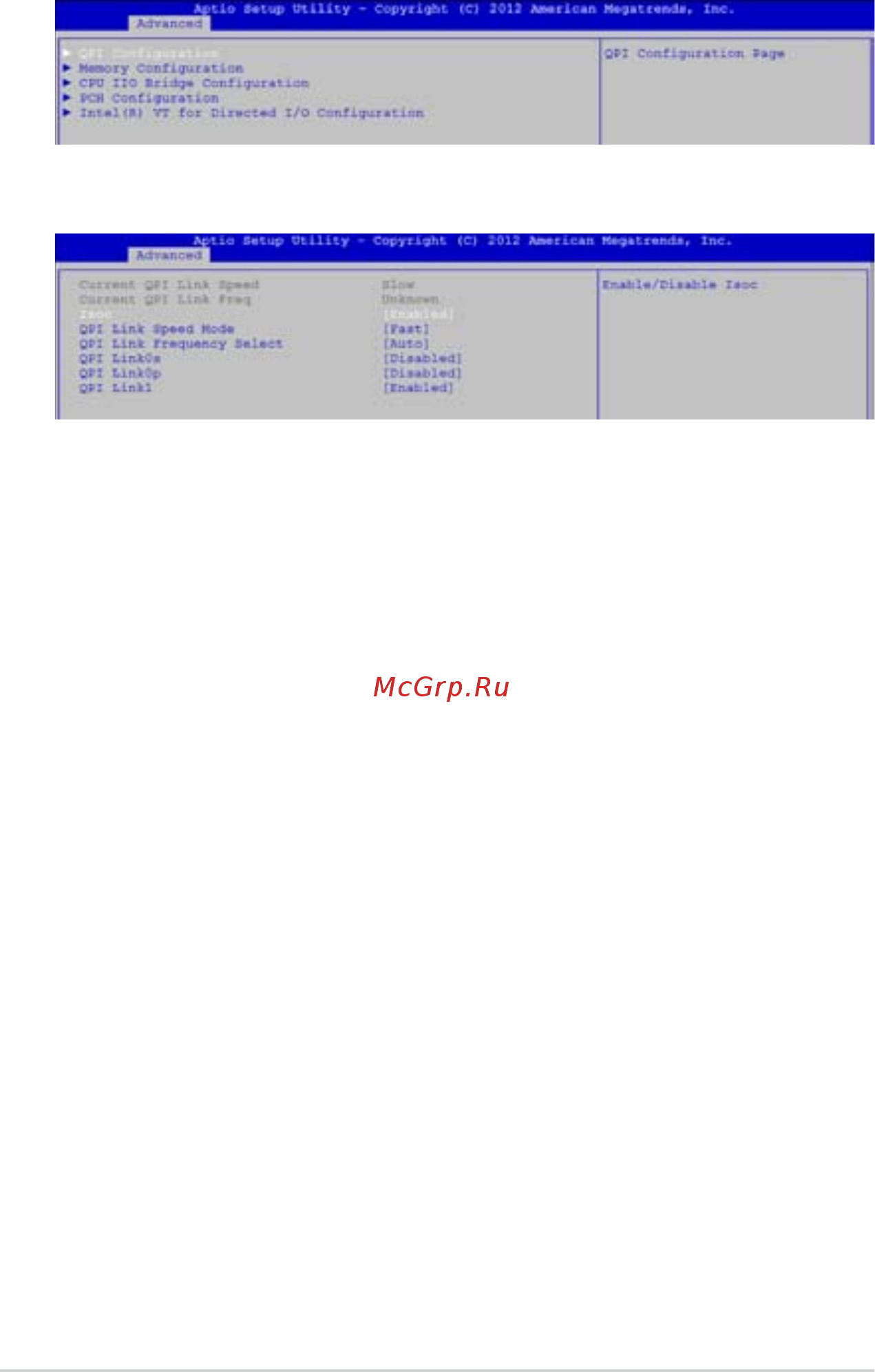

QPIConguration

Isoc [Enabled]

Conguration options: [Disabled] [Enabled]

QPI Link Speed Mode [Fast]

This item allows you to select the QPI link speed as either the fast mode or slow mode.

Conguration options: [Slow] [Fast]

QPI Link Frequency Select [Auto]

This item allows for selecting the QPI link frequency

Conguration options: [Auto] [6.4 GT/s] [7.2 GT/s (Fast Mode Only)] [8.0 GT/s (Fast Mode

Only)]

QPI Link0s [Disabled]

Conguration options: [Disabled] [Enabled]

QPI Link0p [Disabled]

Conguration options: [Disabled] [Enabled]

QPI Link1 [Enabled]

Conguration options: [Disabled] [Enabled]
