Asus rs740-e7/rs24-eg [118/212] Onboardlanconfiguration

5-32

Chapter 5: BIOS setup

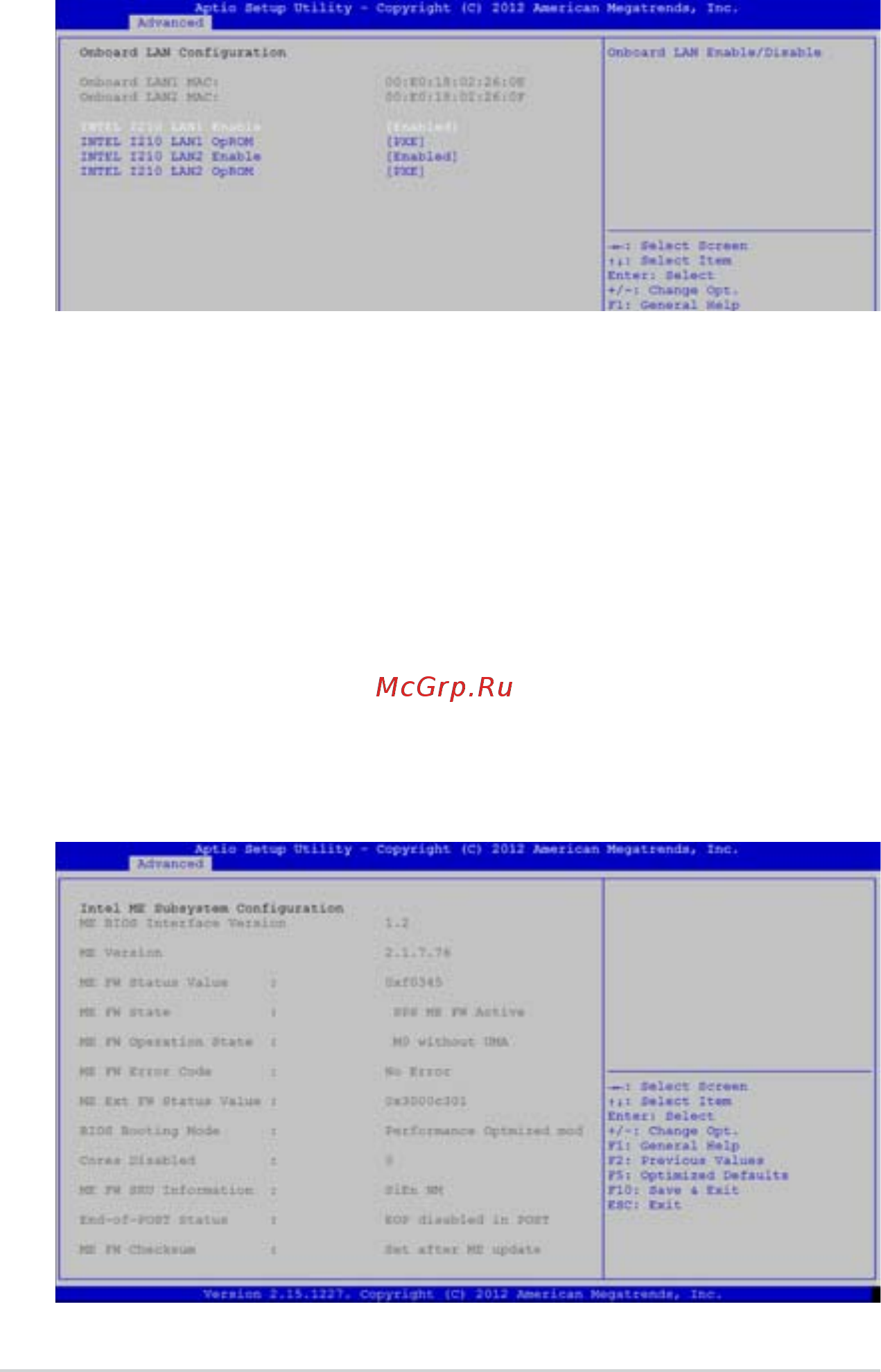

5.4.14 OnboardLANConguration

INTEL I210 LAN1 Enable [Enabled]

Allows you to enable or disable the onboard INTEL LAN1. Conguration options: [Enabled]

[Disabled]

INTEL I210 LAN1 OpROM [PXE]

Allows you to disable INTEL LAN1 OpROM or select between iSCSI or PXE. Conguration

options: [Disabled] [PXE] [iSCSI]

INTEL I210 LAN2 Enable [Enabled]

Allows you to enable or disable the onboard INTEL LAN2. Conguration options: [Enabled]

[Disabled]

INTEL I210 LAN2 OpROM [PXE]

Allows you to disable INTEL LAN2 OpROM or select between iSCSI or PXE. Conguration

options: [Disabled] [PXE] [iSCSI]

5.4.15 ME Subsystem
