7-8 Chapter 7: Driver installation
Red Hat
®
Enterprise Linux OS 6.1
To install the LSI MegaRAID controller driver when installing Red Hat
®
Enterprise OS:

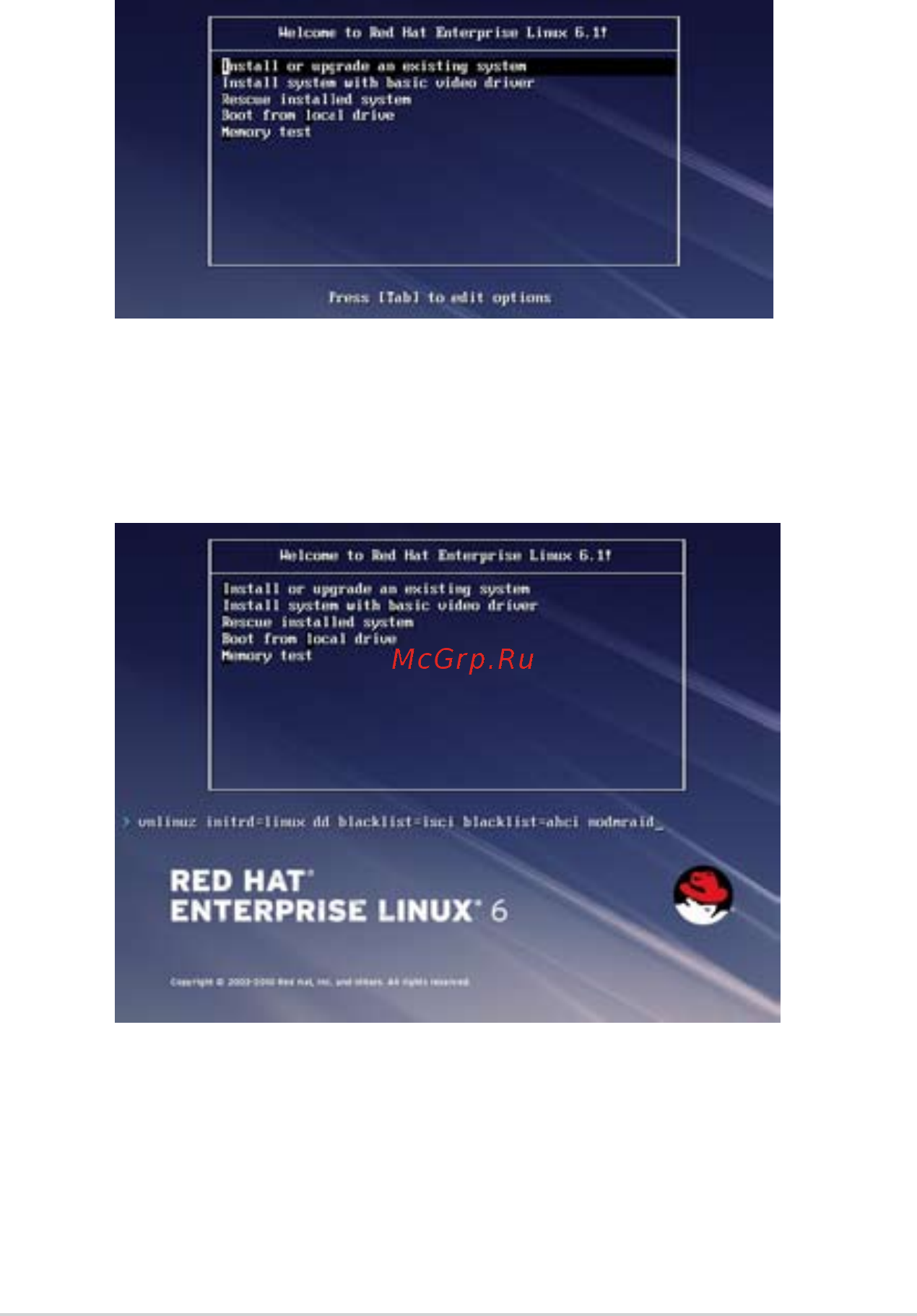

1. Boot the system from the Red Hat
®
OS installation CD.
2. Press <Tab> to edit options.
3. While booting from DVD, press <ESC> to give the third party driver. Enter the following
command at the boot:
Linux dd blacklist=isci blacklist=ahci nodmraid
, then press
<ENTER>.
