ASUS RS740-E7-RS24-EG

1-9

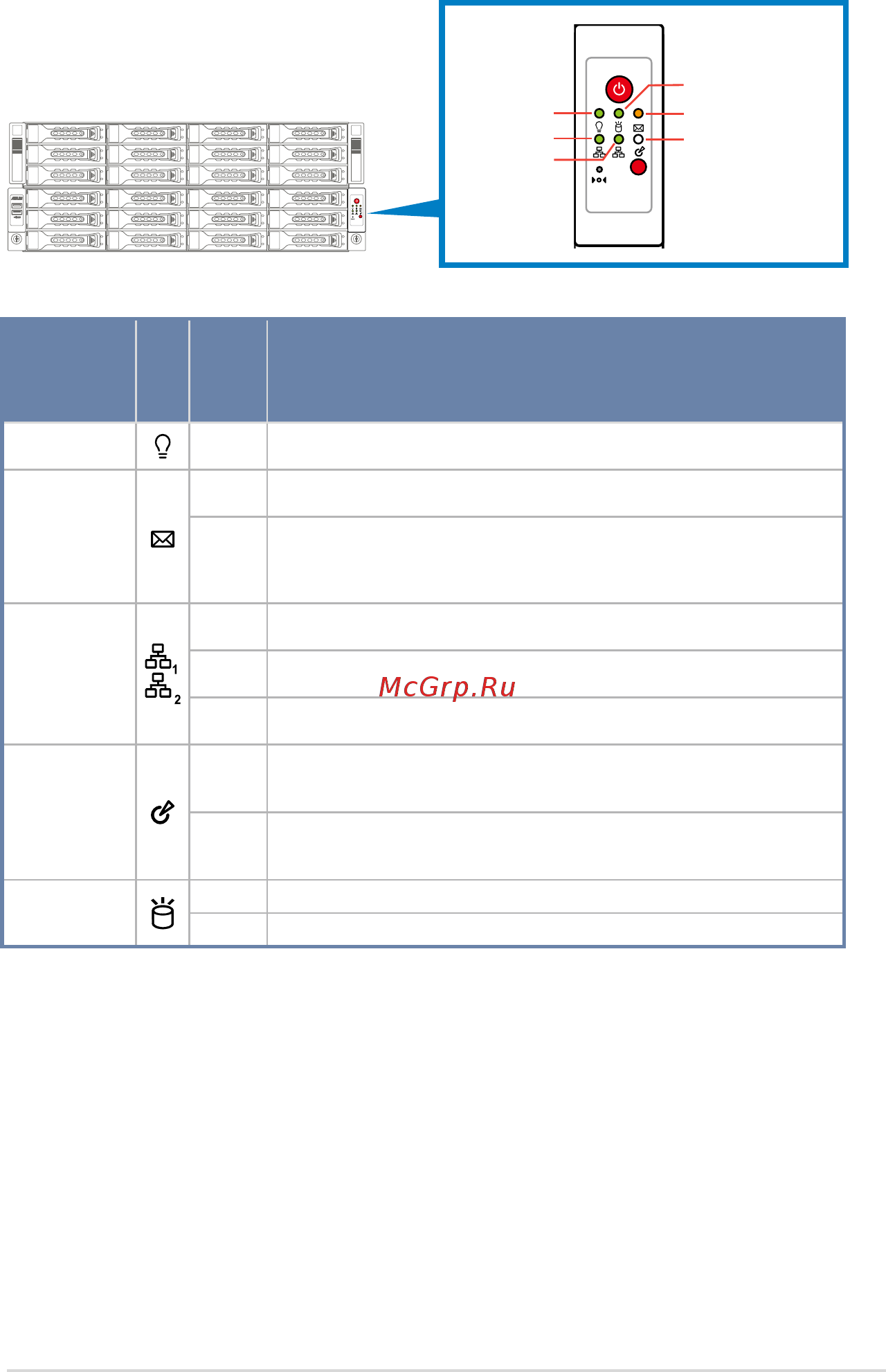

1.7 LED information

1.7.1 Front panel LEDs

LED Icon

Display

status

Description

Power LED ON System power ON

Message LED

OFF System is normal; no incoming event

1. Without ASMB6-iKVM installed: CPU over-heated

2. With ASMB6-iKVM installed: a hardware monitor event is

indicated

LAN LEDs

OFF No LAN connection

Blinking LAN is transmitting or receiving data.

ON LAN connection is present

Location LED

ON Location switched is pressed.

OFF

Normal status.

(Press the location switch again to turn off.)

HDD Access

LED

Green Data is being read/written into the HDD.

OFF

HDD failure or no HDD is installed

Message LED

LAN2 LED

LAN1 LED

HDD Access LED

Location LED

Power LED
