Asus rs740-e7/rs24-eg [66/212] Motherboard layout

Chapter 4: Motherboard information

4-2

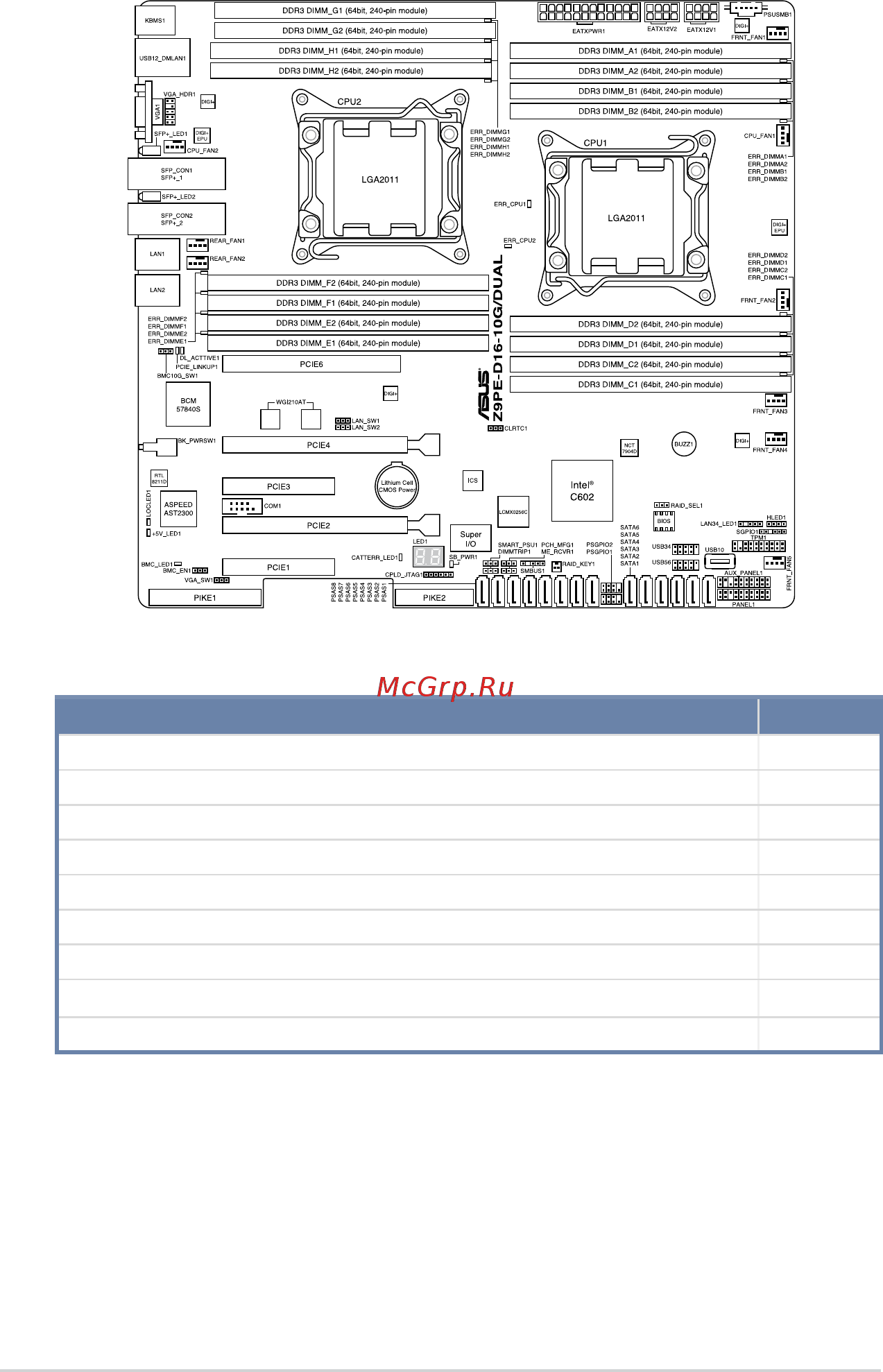

4.1 Motherboard layout

Layout contents

Jumpers

Page

1. Clear RTC RAM (CLRTC1)

4-4

2. VGA controller setting (3-pin VGA_SW1)

4-5

3. LAN controller setting (3-pin LAN_SW1, LAN_SW2)

4-5

4. PMBus 1.2 PSU select jumper (3-pin SMART_PSU1)

4-6

5. ME rmware force recovery setting (3-pin ME_RCVR1)

4-6

6. DDR3 thermal event setting (3-pin DIMMTRIP1)

4-7

7. RAID conguration utility selection (3-pin RAID_SEL1)

4-7

8. Baseboard Management Controller setting (3-pin BMC_EN1)

4-8

9. Broadcom 10GbE controller setting (3-pin BCM10G_SW1)

4-8
