ASUS RS740-E7-RS24-EG 7-33
7.10 Intel
®
Rapid Storage Technology enterprise 3.0
installation
This section provides the instructions on how to install the Intel
®
Rapid Storage Technology
enterprise 3.0 on the system.
You need to manually install the Intel
®
Rapid Storage Technology enterprise 3.0 utility on a
Windows
®
operating system.
To install the Intel
®
Rapid Storage Technology enterprise 3.0 utility:
1. Restart the computer, and then log on with Administrator privileges.

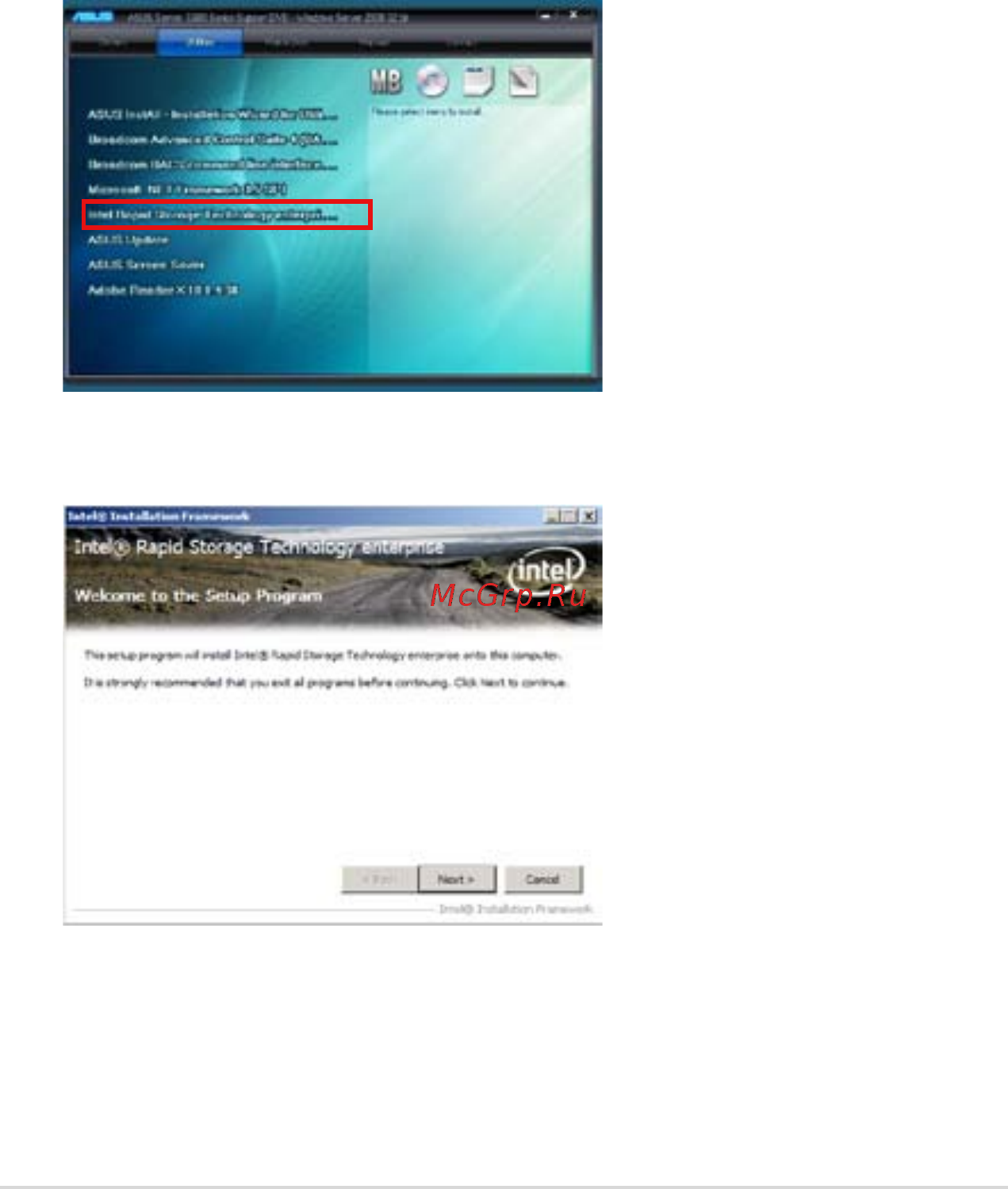

2. Insert the motherboard/system support DVD to the optical drive, and nd the utility
menu.
3. Click the Intel
®
Rapid Storage Technology enterprise 3.0 to begin installation.
4. When the Welcome to the Setup Program appears, click Next to start the installation.
