5-12
Chapter 5: BIOS setup
Adjacent Cache Line Prefetch [Enabled]
This Item allows you to turn on/off prefetching of adjacent cache lines.
Conguration options: [Disabled] [Enabled]
DCU Streamer Prefetcher [Enabled]
This Item allows you to enable or disable prefetcher of next L1 data line.
Conguration options: [Disabled] [Enabled]
DCU IP Prefetcher [Enabled]
This Item allows you to enable or disable prefetch of next L1 line based upon sequential load
history.
Conguration options: [Disabled] [Enabled]
Intel
®
Virtualization Technology [Enabled]
When this item is enabled, a VMM can utilize the additional hardware capabilities provided by
Vanderpool Technology.
Conguration options: [Disabled] [Enabled]
Local APIC Mode [Auto]
Select Local APIC mode. If Auto, use x2APIC if required. Otherwise, use xAPIC mode. xAPIC
will disable CPUs with APIC IDs greater than 254. Some OS do not support x2APIC mode.
Conguration options: [Disabled] [Enabled]

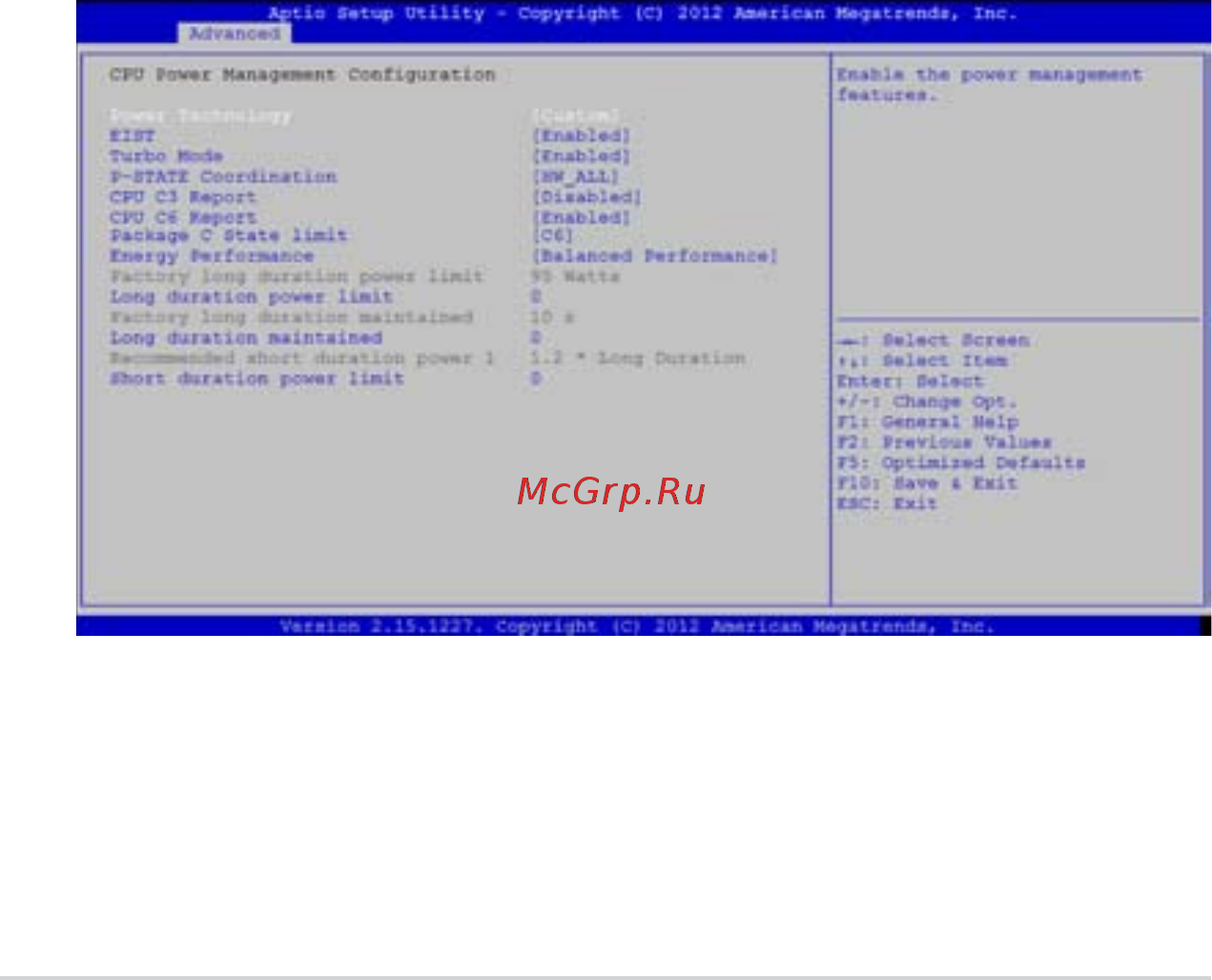

5.4.2 CPUPowerManagementConguration
